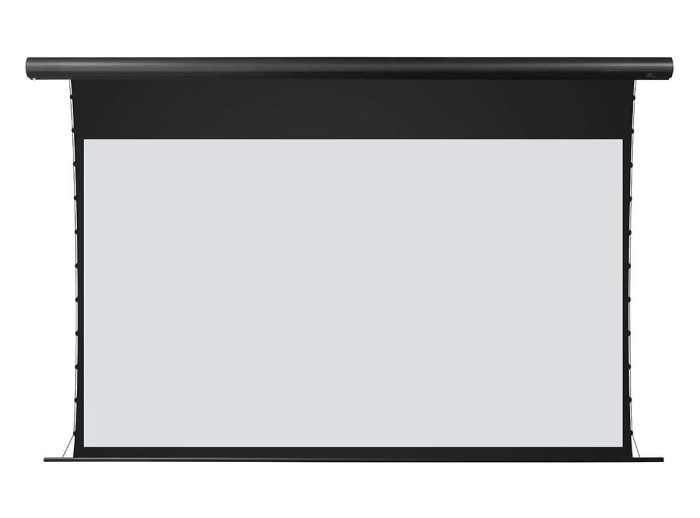

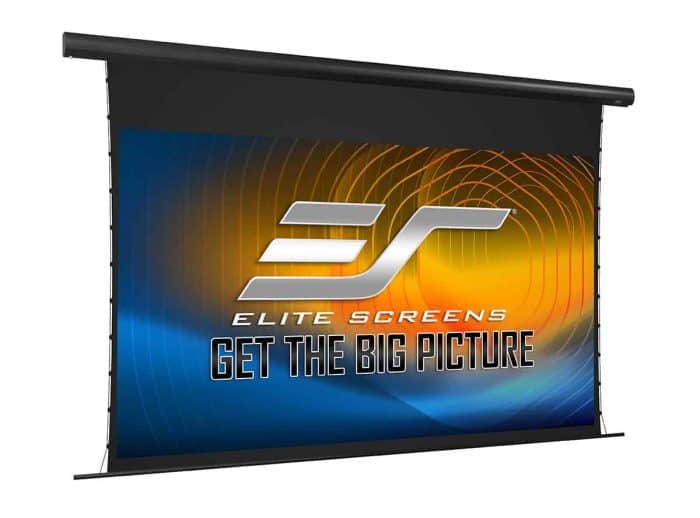

Battery-Operated Outdoor Projection Screen
Yard Master Tab-Tension 2 Wireless Series

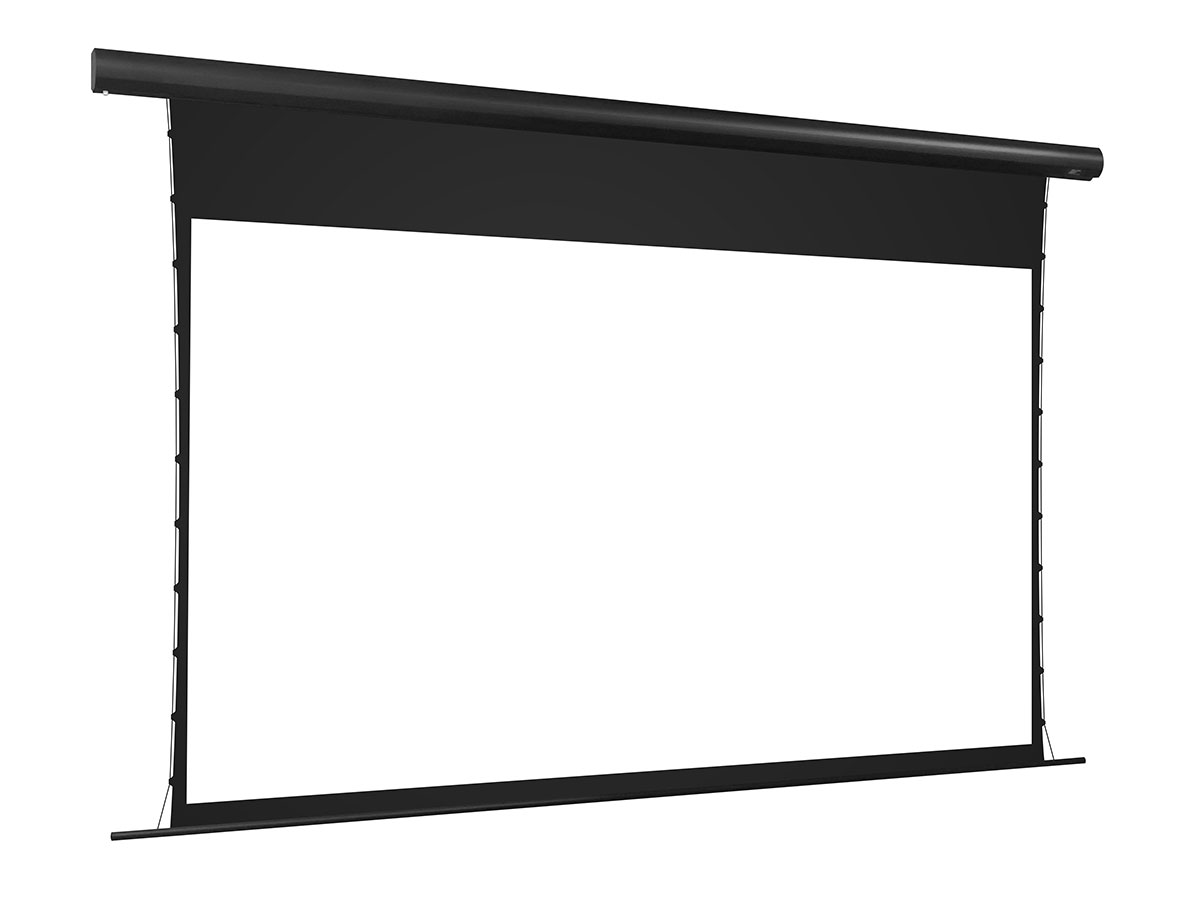

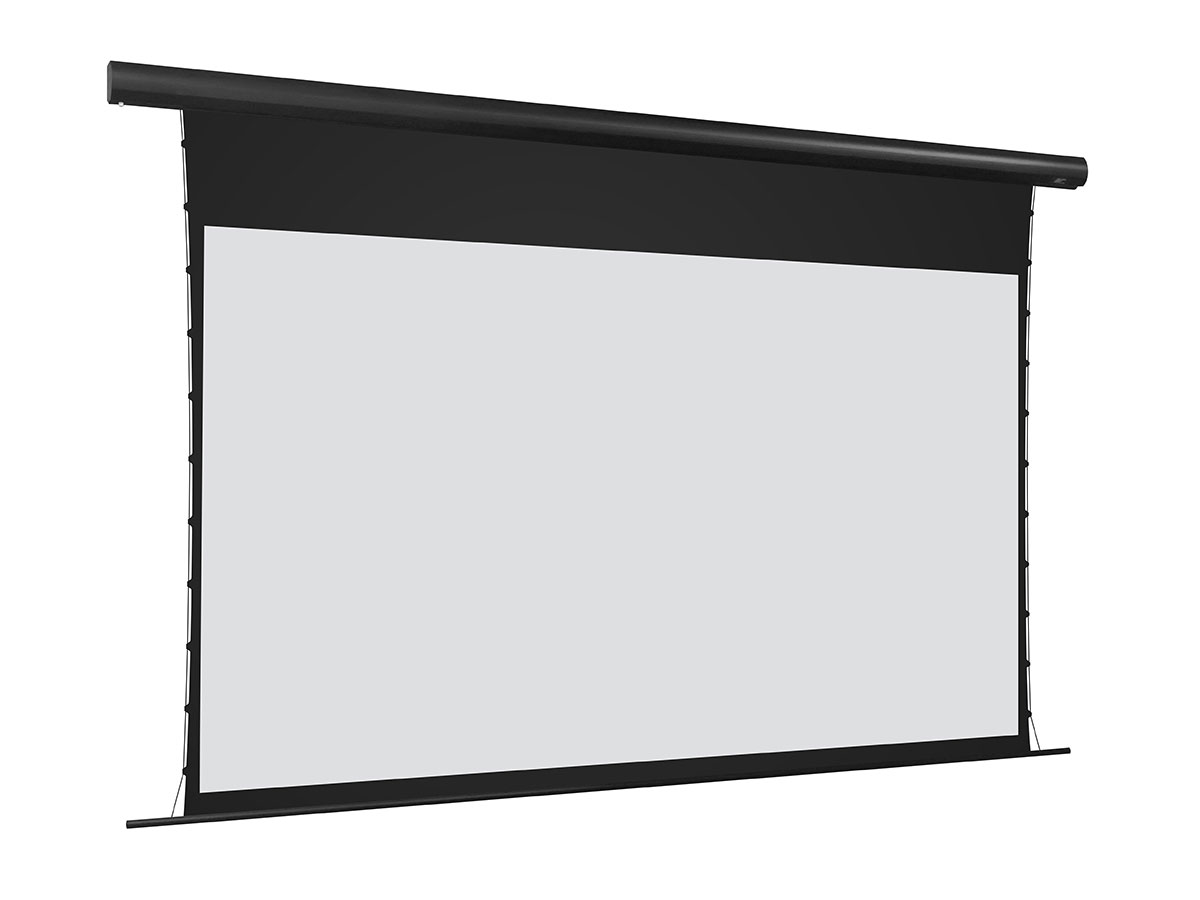

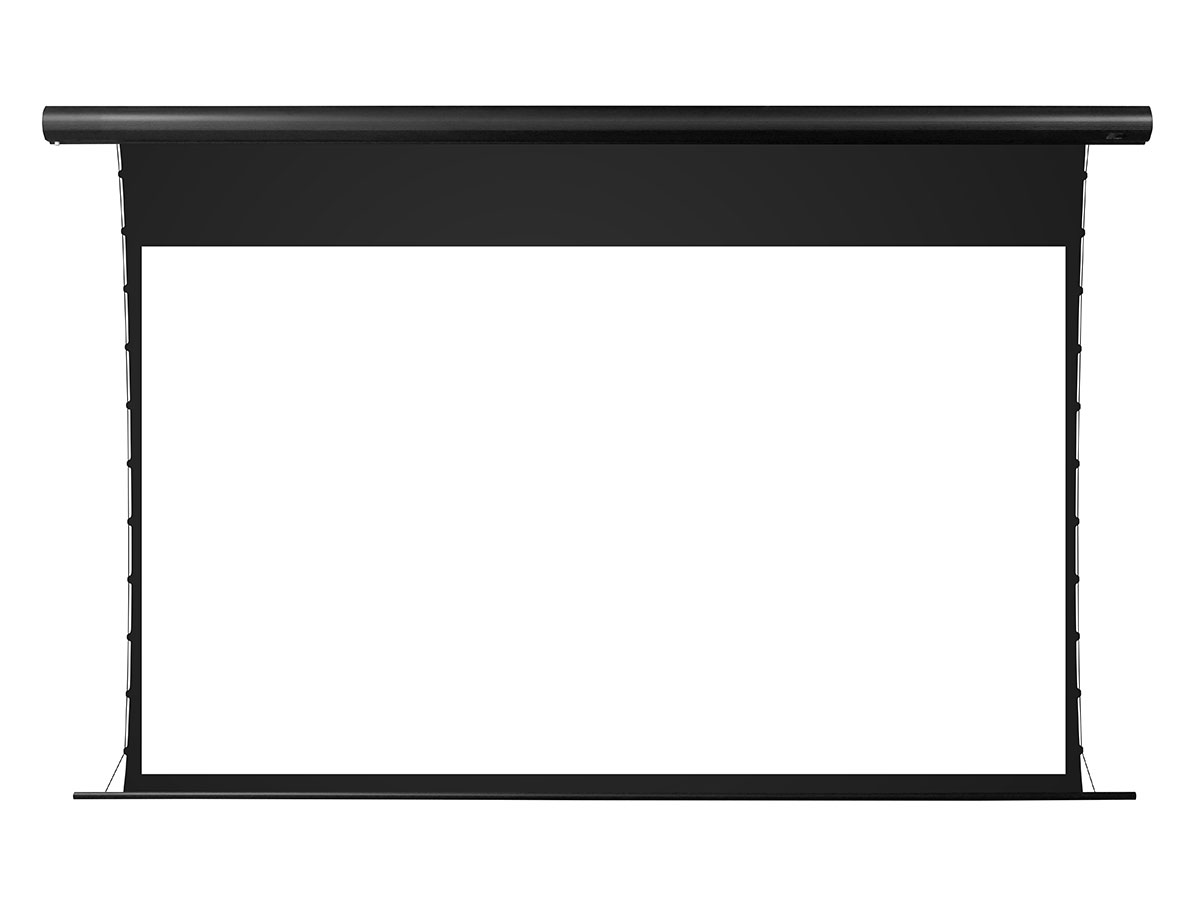

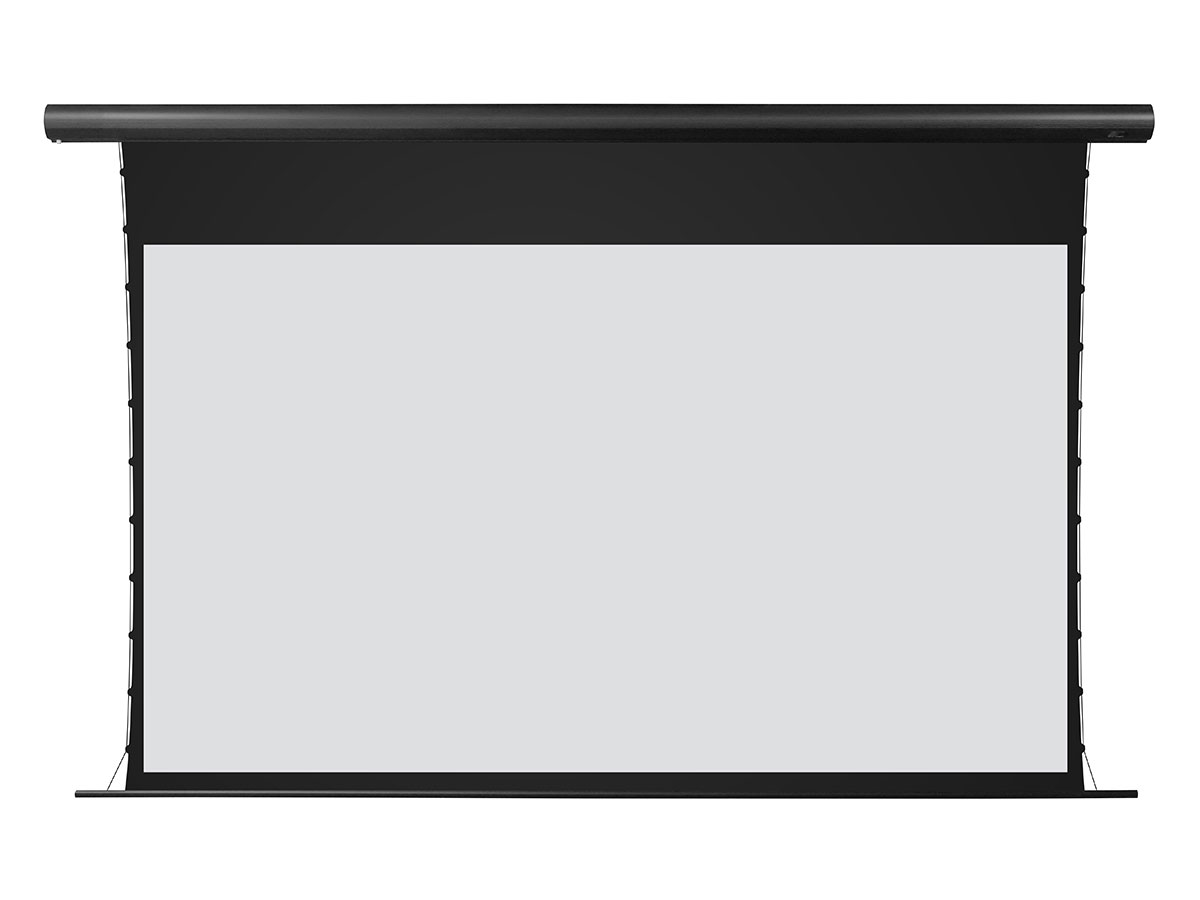

The Yard Master Tab-Tension 2 Wireless is a battery-operated outdoor projection screen. It is IP33 rated for dust and water protection against the outdoor elements. The tab-tension design provides uniform tension on all sides for a flat and taut projection surface.
Includes a handheld Radio Frequency remote control for long distance control and a wireless 12v trigger that synchronizes its drop/rise operation with the projector’s power cycle.
| Compatible Projection | Ultra Short Throw, Short Throw, Standard "Long" Throw |
|---|
Screen Materials
- CineWhite® 1.1 Gain matte white flexible front projection material
- Wide viewing angle allows the audience to see a clear, bright, uniform picture from any angle
- 4-side black masking borders absorb projector overshoot while enhancing visual contrast
- Black backing eliminates light penetration for enhanced brightness and color saturation to prevent picture degradation
- ISF Certified for accurate color reproduction – An industry standard for high-fidelity visual display systems
- WaithVeil® Dual – 2-directional front/rear projection material
- 8 Gain with a 150° viewing angle on either side
- 4-sided black masking borders on the front side
- Compatible with Standard, Short, and Ultra-Short Throw Projectors
- Full HD, Ultra HD (4K/8K), HDR and Active 3D compatible
Design, Installation and Control System
- Designed for outdoor use without compromising its home theater visual appeal
- Cinematic indoor home theater quality with the durability of an outdoor product

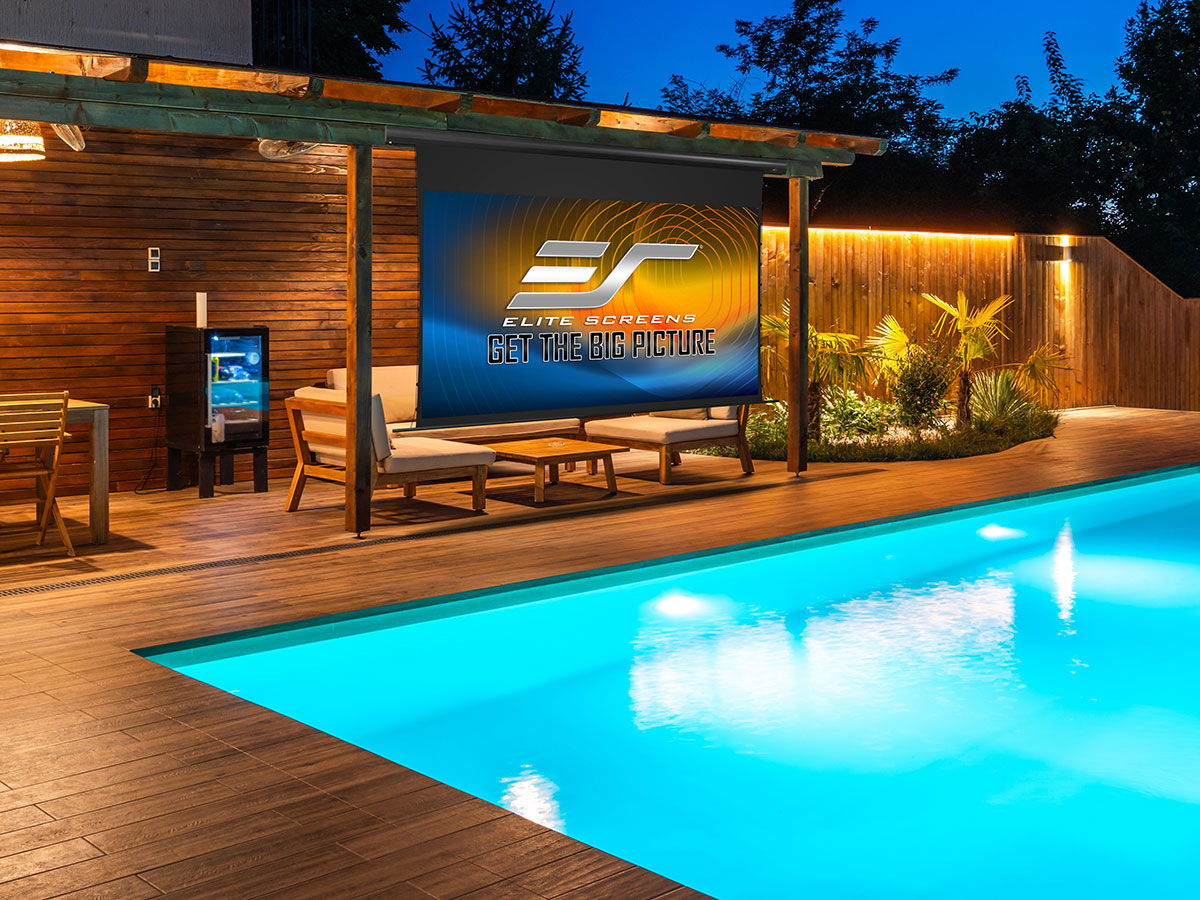

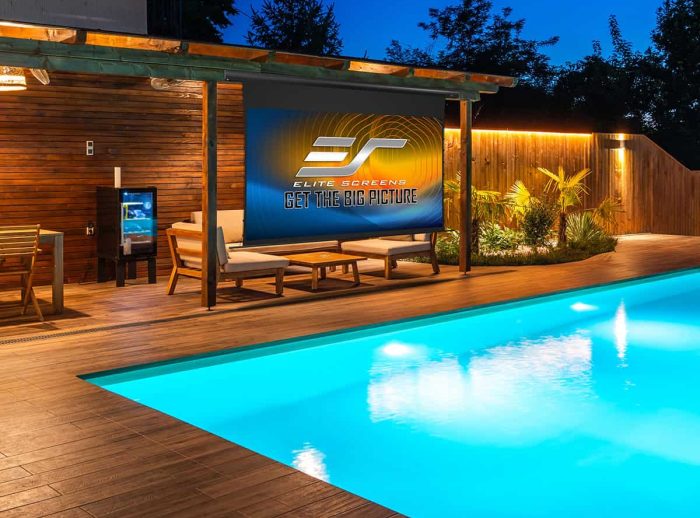

- Ideal for backyards, patios, pool decks, and recreation room installations

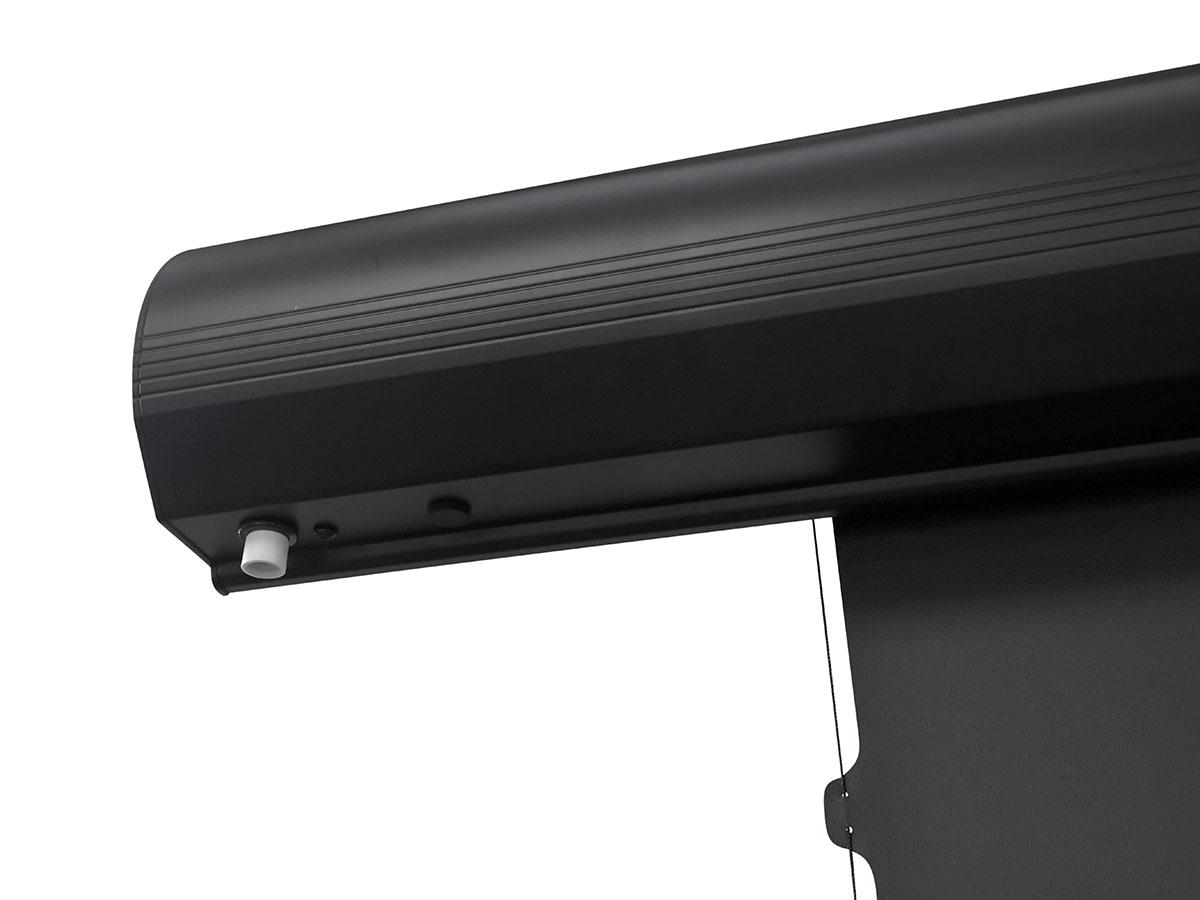

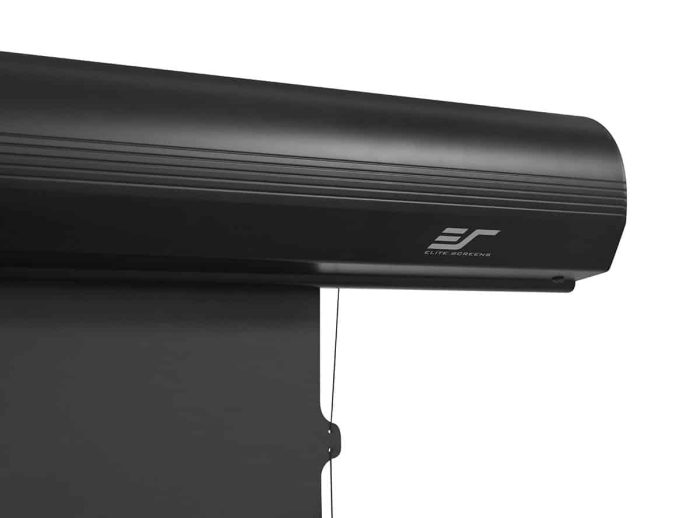

- Elegant black aluminum housing includes sliding wall/ceiling brackets

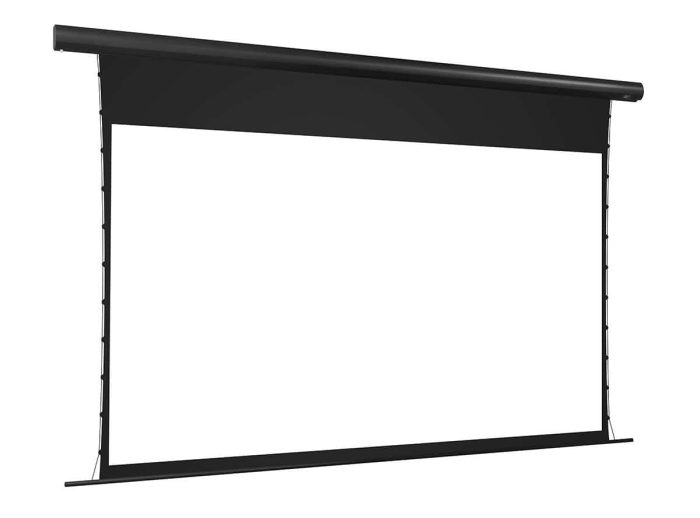

- Tab-tension design provides uniform flatness over the entire projection surface for ripple-free presentations
- Radio Frequency remote for long range operation without line of sight required
- Built-in rechargeable Li-on battery eliminates the need to plug screen into a power outlet
- Battery charge can last up to 250 cycles on a single charge
- IP33 Rated for protection against water spray less than 60 degrees from vertical
Quality and Reliability
- Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
- Dimensions Table (PDF)
- User Guide (PDF)
- Outdoor Screens Comparison (PDF)
- Outdoor Retractable Comparison (PDF)
- Product Cut Sheet (PDF)

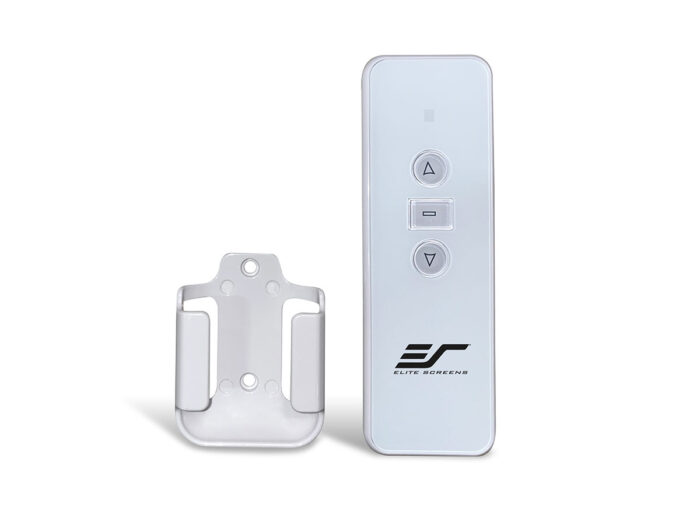

The RF remote is not rechargeable and requires one button cell CR2032 battery.

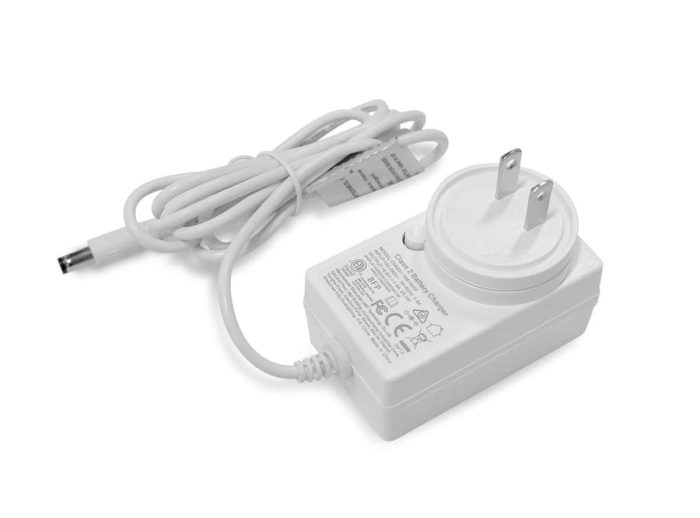

When charging the battery, the light on the charger is RED. The light on the charger will turn GREEN to indicate it is fully charged.
It takes 2 ½ hours to fully charge the battery.
A. When the battery charge is below 10%, the screen will emit a beeping sound when it is in use.
A. The battery can hold its charge for up to 3 months without use.
A fully charged battery will last about the following up/down cycles according to the size.
125” = 200 up/down cycles.
140” = 180 up/down cycles
Q: Can the battery-operated Yard Master Wireless/Yard Master Tab-Tension Wireless be used when it is plugged in to a power outlet?
A: Yes, the Yard Master Wireless/Yard Master Tab-Tension will operate if it is plugged in, but we strongly advise not to do so as it will increase pressure on the battery from overcharging and decrease its life expectancy.
Q: If the battery no longer charges, can the Yard Master Wireless/Yard Master Tab-Tension Wireless still operate with the charger being plugged in?
A: Yes, if the battery no longer charges the Yard Master Wireless/Yard Master Tab-Tension Wireless can continue to operate if it the charge is plugged in to a power outlet.
2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
