Synchronizes to the projector’s power cycle to wirelessly drop and raise the screen

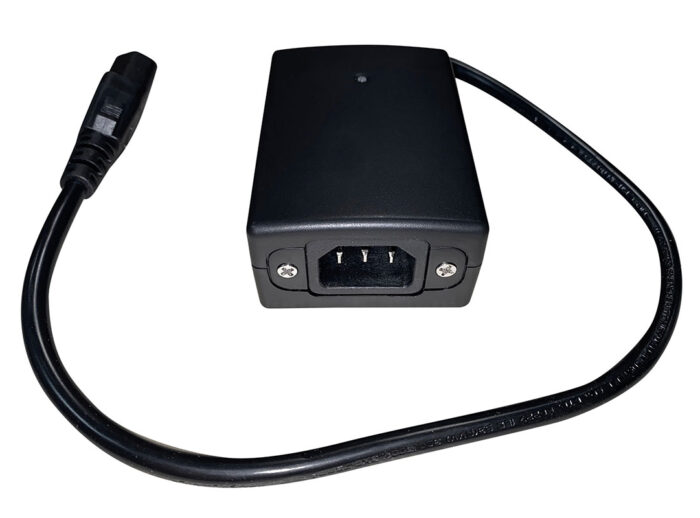

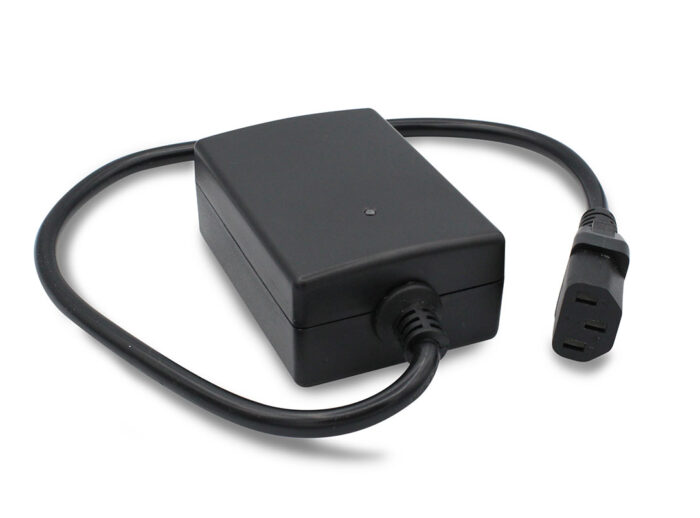

Wireless 5-12 Volt Trigger | ZOMS-TR12V-V2

The ZOMS-TR12V-V2 wireless trigger is a device that coordinates your Yard Master Electric/Tension outdoor projection screen with the projector and no wires are required. It plugs into the projector’s power receptable. When the projector powers on, the wireless 12-volt trigger acts as a radio-frequency wireless remote and brings down the projection screen into the “open” position. When the projector powers off, the trigger commands the screen to retract back into its casing. The ZOMS-TR12V-V2 remembers the loading current automatically and has a strong anti-interference for a stable signal transmission.

How to Synchronize Wireless Trigger (ZOMS-TR12V-V2) for Yard Master Electric Series


  • Radio Frequency wireless trigger synchronizes to Yard Master Electric/Tension Series
  • Compatible only with Yard Master Electric/Tension Series with serial numbers 203E and newer
  • Works with the projector’s power cycle to wirelessly drop and rise the screen
  • Control distance up to 32 feet (10 meters)
  • Overload current protection circuitry for a safe operation
  • ABS cover protects against moisture
  • Product Dimensions: 3.3” x 2.3” x 1.4”
  • Cable Length: 9.4”

Electrical Specs

  • Voltage : 120V AC60Hz
  • Trigger Current : > 180mA
  • Temperature Range : -4° F – 131° F
  • Frequency : 433.92 MHz
  • Transmitter Power : < 10mW
  • Sensitivity : -110 dBm
  • Loading Power : 1000 W
  • Standby Power : < 1W
