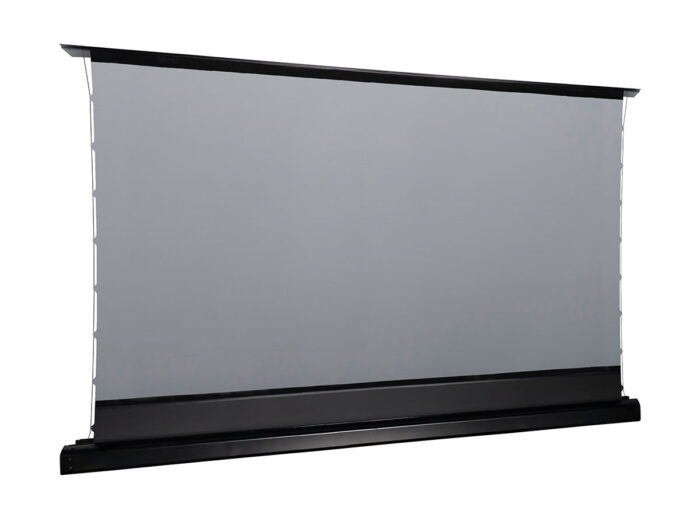

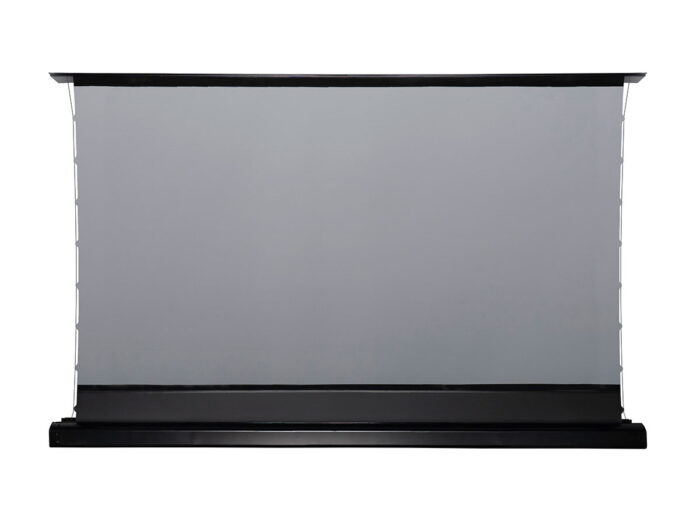

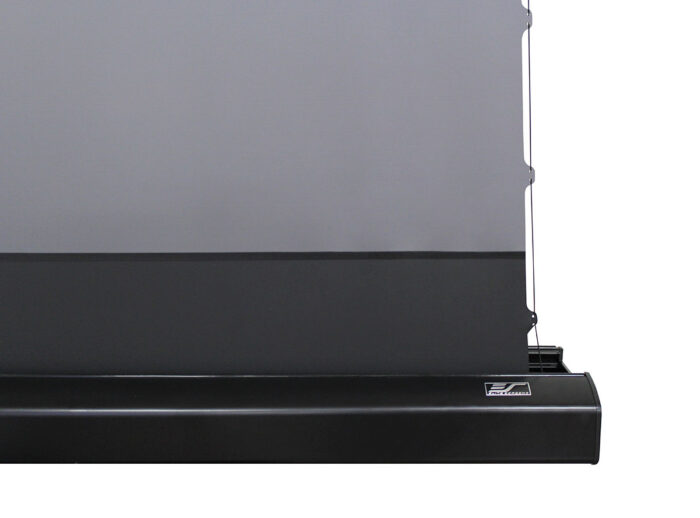

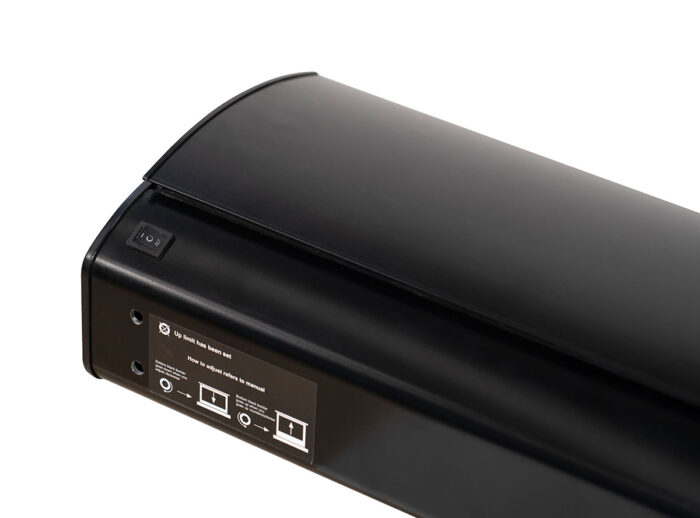

Motorized CLR Floor-Rising Projection Screen

Kestrel Tab-Tension CLR® Series

The Kestrel Tab-Tension CLR® is a motorized floor-rising projector screen with Ceiling Ambient light rejecting capabilities. It is suited for ultra-short throw projection applications in meeting or living room spaces. It is the ideal non-invasive solution for environments with bright room lighting or if wall-ceiling installations are impractical. Under normal lighting conditions, matte white screens present a milky, washed-out image. The Kestrel Tab-Tension CLR® allows a larger than life display with “TV-Screen” brightness to appear at the press of a button regardless if the lights are on or off.

The StarBright CLR® material is configured in a tab-tensioned format to ensure a taut and flat projection surface suitable for Ultra Short throw Projectors.

Kestrel Tab-Tension CLR® Electric Floor-Rising Ceiling ALR Projector Screen

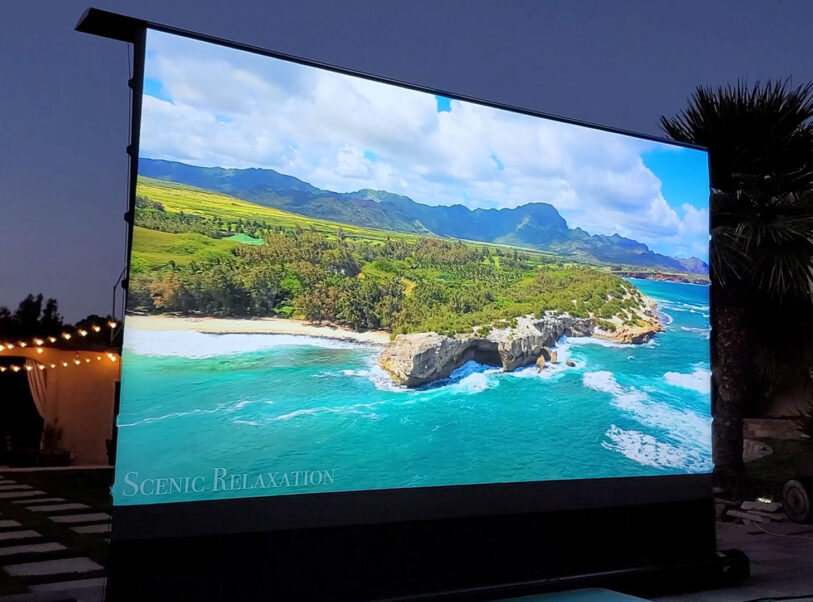

JoelsterG4K Reviews The Kestrel Tab-Tension CLR® Series

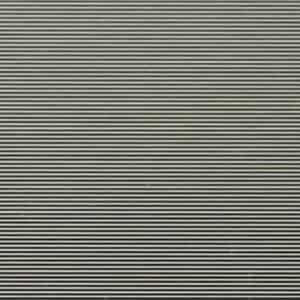

Screen Material

  • StarBright CLR (Ceiling Light Rejecting) material absorbs up to 95% of overhead lighting
  • Crafted for use with UST (ultra-short throw) tabletop mounted projectors
  • 100x contrast enhancement over standard matte white projector screens
  • Multi-layered optical micro-structures filter out ambient light for superior image brightness and performance
  • Reflective layer concentrates projected light back to viewer and does not scatter throughout the room
  • Ultra-wide viewing angle allows viewers to spread out while maintaining uniform picture quality
  • Material enhances lifelike image performance with superb color fidelity, contrast and black/white dynamic range
  • Black-backing (non-opaque) enhances image brightness
  • Available in the following diagonal sizes:
    • 101″ and 121″ in 16:9 aspect ratio



Design and Operation

  • Rises and lowers using “scissor-backed” cross spring risers
  • Project from within a short distance without shadowing the picture
  • Specially designed for table-top ultra-short throw projectors
  • Built-in Infrared and Radio Frequency (IR/RF) receivers

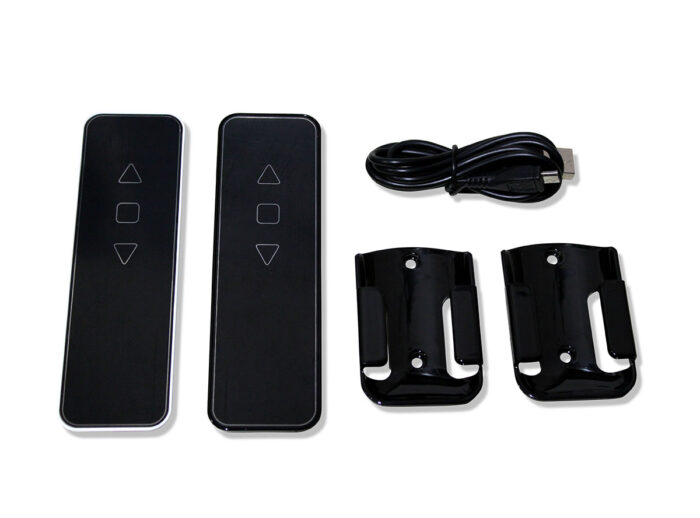

  • Includes USB rechargeable IR/RF remote controls with cradle holders for wall placement
  • Plug & Play ready, no hardwired installation required

Quality and Reliability

  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Please click here for installation tip (PDF)

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

Electric Floor-Rising Screens FAQs

Q: How do I know if my projector is compatible with the ZSP-TR02 (Floor Rise)
Q: How do I know if my projector is compatible with the ZSP-TR02 (Floor Rise)

Check your projector’s documentation to find out if your projector has a 5 volt or 12 volt trigger output.  If it does then the ZSP-TR02 is compatible with your projector.

Q: Will the Universal Wireless 5-12V Projector Trigger ZU12V work with my Electric/Motorized screen?
Q: Will the Universal Wireless 5-12V Projector Trigger ZU12V work with my Electric/Motorized screen?


A: The ZU12V is compatible only with Electric/Motorized drop down screens using Ver 2.0 or 3.0 circuit boards. You can typically find this information on your Radio Frequency remote control.
Electric/Motorized Screens that are not compatible:

• Floor-Rising Electric/Motorized screens
• All Yard Master Electric/Motorized screen
• Drop down Electric/Motorized screens
– New RC1 circuit board. For example, Radio Frequency remote has part number ZRC1-RF on the back.
– ZZ Type
– J Type
– X Type

Q: What series is the ZIW In-Wall Up/Down switch compatible with?
Q: What series is the ZIW In-Wall Up/Down switch compatible with?

The ZIW In-Wall switch is compatible with all of Elite’s electric retractable floor rising, wall/ceiling and in-ceiling/recessed screens, EXCEPT for the VMAX Dual®, VMAX Tab-Tension Dual, Starling, Starling 2, Starling Tab-Tension and the Starling Tab-Tension 2 Series.

Q: What is the power cable length of all Elite Electric Screens?
Q: What is the power cable length of all Elite Electric Screens?

Please see this chart.
Note: These measurements are accurate for USA only, other countries may be equipped with different lengths for each model.

Series NameModel SizesLength of Power Cord
CineTension2All Size98.4″ (2.5M)
Evanesce BAll Size98.4″ (2.5M)+ with extra control box
Evanesce Tension BAll Size98.4″ (2.5M)+ with extra control box
EvanesceAll Size98.4″ (2.5M)+ with extra control box
Evanesce TensionAll Size98.4″ (2.5M)+ with extra control box
Evanesce PlusAll Size98.4″ (2.5M)+ with extra control box
Home2All Size98.4″ (2.5M)
KestrelAll Size98.4″ (2.5M)
Kestrel Tab-TensionAll Size70.8″ (1.8M)
Kestrel Tab-Tension CLRXAll Size70.8″ (1.8M)
Kestrel StageAll Size98.4″ (2.5M)
Kestrel HomeAll Size98.4″ (2.5M)
Saker150″ below98.4″ (2.5M)
Saker150″ above (150″)98.4″ (2.5M)
Saker Tab-TensionAll Size98.4″ (2.5M)
Saker PlusAll Size98.4″ (2.5M)+ with extra control box
SpectrumAll Size98.4″ (2.5M)
Spectrum TensionAll Size98.4″ (2.5M)
Spectrum2All Size98.4″ (2.5M)
StarlingAll Size98.4″ (2.5M)
Starling 2All Size98.4″ (2.5M)
Starling Tab-TensionAll Size98.4″ (2.5M)
Starling Tab-Tension 2All Other Sizes98.4″ (2.5M)
Starling Tab-Tension 292″ in CineGrey 5D98.4″ (2.5M)
VMAX2150″ below98.4″ (2.5M)
VMAX2150″ above (150″)98.4″ (2.5M)
VMAX Dual®All Size98.4″ (2.5M)
VMAX Tab-Tension DualAll Size98.4″ (2.5M)
Yard Master ElectricAll Size98.4″ (2.5M)
VMAX Tab-Tension 3All Size98.4″ (2.5M)
Q: Where can I find the wired RJ-45 5-12 volt trigger adaptor pin-layout?
Q. Where can I find the wired RJ-45 5-12 volt trigger adaptor pin-layout?

The adaptor can easily be made by using a CAT-5 networking cable and a RJ-45 networking connector. See image below and please note that the RJ-45 is exclusively designed to be compatible with only a  projector’s trigger output. Any other type of device’s trigger output that you choose to  utilize with our product is to your own discretion and is not covered under warranty should there be any malfunction. Please contact Elite Screen’s technical support department for further information. Circuit board layout of CineTension2, Home2, VMAX2, Spectrum, Kestrel series screens

Q: Why does my electric screen no longer function?
Q: Why does my electric screen no longer function?

There are a few possible things you could check:

1. Make sure your wall plug has power and that the screen is properly plugged in.
2. If the screen works well with the wall switch but not with the remote controls, ensure that fresh alkaline batteries are installed in the remote controls.
3. Check your screen’s internal fuse. (Please call our Tech Support for location of fuse before tampering with the screen.)
4. Our Home2, CineTension2, Kestrel, Raptor and VMAX Plus 3/4 screens feature a tubular motor equipped with a Thermal Relay.  This feature will automatically shut off the screen should your motor become too hot, thus preventing overheating of the motor.  To correct this, simply leave the screen alone for 20-30 minutes and try again.

StarBright CLR® – Screen Material FAQ’s

Q: I plan to purchase a CLR®/ CLR®2/ CLR® 3 material, but want to use a ceiling mounted UST projector. Can I flip and install the CLR/CLR2/CLR3 upside down to make this work?
Q: I plan to purchase a CLR®/ CLR®2/ CLR® 3 material, but want to use a ceiling mounted UST projector. Can I flip and install the CLR/CLR2/CLR3 upside down to make this work?

Ceiling mounted UST projector will not work with CLR®/ CLR® 2/ CLR® 3 flipped upside down because the material is specifically oriented to reject “absorb” lighting from above. In addition it is designed to properly accept tabletop mounted UST projector light and direct it to the viewer’s sweet spot. If the material is flipped upside down and there is overhead light, that light will not be rejected but instead reflected which would degrade the picture quality. In addition, the ceiling mounted UST projector light will still not likely align properly with the human eye to deliver the ideal “sweet-spot” picture performance.

Q: Can I use StarBright CLR® for a standard throw or short throw projector?
Q: Can I use StarBright CLR® for a standard throw or short throw projector?

No, the microstructure of the StarBright CLR® requires a minimum projector lens throw ratio 0.3x the image width

Q: How do I determine the direction of the CLR/CLR 2/CLR 3/ CLR 4 materials??
Q: How do I determine the direction of the CLR/CLR 2/CLR 3/ CLR 4 materials??

Click Here for Instructions

Q: I have a new UST projector in my multi-purpose room with very good light control. Considering to buy a StarBright CLR®/CLR® 2/CLR® 3 or CineGrey 3D/5D® screen. What is the difference?
Q: I have a new UST projector in my multi-purpose room with very good light control. Considering to buy a StarBright CLR®/CLR® 2/CLR® 3 or CineGrey 3D/5D® screen. What is the difference?

CLR®/CLR®2/CLR®3 and CineGrey 3D/5D are Ceiling Ambient Light Rejection Screen fabrics, however the CLR fabrics are especially designed for Ultra Short Throw (UST) Projectors to reject ambient light. The CineGrey 3D/5D are typically made for standard “long-throw” projectors and require the projected light (angle in) to reflect (angle out) at the same angle to the viewer’s eyes, “sweet spot”.

Q: How about using any “CLR/ALR” (Cinegrey®3D/5D or Starbright CLR®/CLR® 2/CLR® 3) with a ceiling-installed UST/ST projector?
Q: How about using any “CLR/ALR” (Cinegrey®3D/5D or Starbright CLR®/CLR® 2/CLR® 3) with a ceiling-installed UST/ST projector?

Ceiling mounted UST projectors will not even work with Starbright CLR® materials because the material is specifically orientated to reject “ceiling light” or any type of lighting from above. This means that the screen will reject any overhead light, even from a compatible projector. Theoretically, you could invert the Starbright CLR® material to match with an inverted UST projector but the alignment will still not likely align properly with the human eye to deliver the ideal “sweet-spot” picture performance.

Q: I own an Aeon CLR/CLR2/CLR 3 fixed frame screen and notice a halo effect/light spill around the UST screen. How can I remedy this?
Q: I own an Aeon CLR/CLR2/CLR 3 fixed frame screen and notice a halo effect/light spill around the UST screen. How can I remedy this?

The steep light from an Ultra-Short Throw projector causes the halo effect and can spill light around the frame. There is no way to solve it, but it can be mitigated by painting your wall a darker color, or putting a velvet border around the screen frame.
