StarBright 9™

The StarBright 9™ is a lenticular front projection screen material with ceiling ambient light rejecting technology for standard (long) throw projectors. It is designed for use in environments where ambient light cannot be entirely controlled. It relies on optical filters within the material multi-layer structure to reflect the projector’s direct light while absorbing overhead light.

StarBright 9™ offers a wide viewing angle without compromising brightness uniformity or color accuracy. An added value is that it works exceptionally well in improving black levels in dark room environments for videophile performance. The composite material eliminates the washout effect, and its black diffusion layer provides high-contrast performance to enhance color saturation and black dynamic range.

Where to Buy Buy Screen Material Sample

Description

Product Features

StarBright 9 retro-reflective Ceiling Ambient Light Rejecting Front Projection Material for Standard Throw Projectors
Absorbs up to 95% of overhead light
Ultra-wide viewing angle offers superior off-axis viewing while maintaining a bright and clear picture with no hotspots, shimmer, and speckles
Direct light reflection technology does not scatter light in the room but instead reflects projected light towards the viewer
Black backing prevents light penetration to avoid picture degradation
Protective outer coating results in a scratch-resistant surface
Mildew resistant and easily cleans with mild soap and water
Uniformity across entire screen surface with no color shift, texture, bright spots, or dark corners
Smooth non-textured surface compatible with 4K/8K Ultra HD projectors
ISF Certified for accurate color reproduction – An industry standard for high-fidelity video display systems
Not compatible with ultra/short-throw projectors

Material Specifications

Thickness: 0.292 mm +/- 0.040

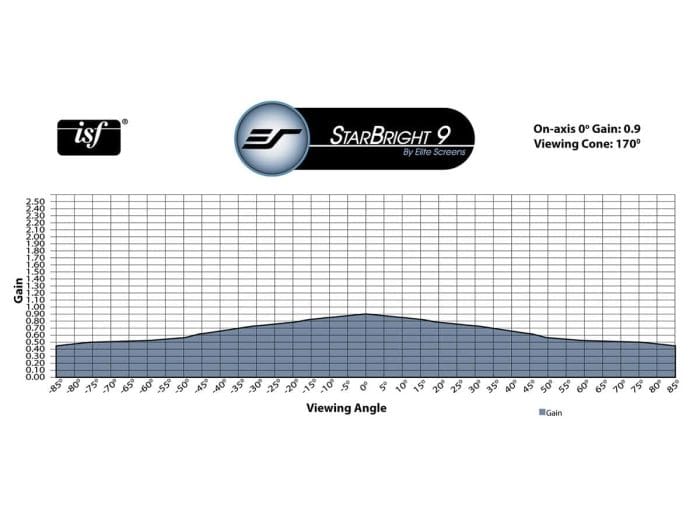

Peak Gain: 0.9
Lenticular Pitch: 0.065 mm
Horizontal Half-gain angle: 85°
Vertical Half-gain Angle: 18°
Horizontal Soft-edge Blending: Yes
Vertical Soft-Edge Blending: No
Min. Lens-Throw-Ratio: 1.5 x Image Width
Max. Lens-Throw-Ratio: 8 x Image Width
Diagonal Sizes Available: 106"/122" - 16:9; 156" - 2.40:1
ISF Certified: Yes
Recommended shipping and storage conditions: Temperature: 50-122°F (10-50°C)
- Do not exceed 149°F (65°) to avoid permanent damage
- Recommended normal storage temperature, 68-86°F (20-30°C)
- Avoid Freezing
- Humidity < 70% RH (Recommended storage as low humidity as possible)
- Recommended storage at stable humidity +/- 10% RH
Recommended operating conditions
- 50-104°F (10-40°C)
- Humidity < 70% RH

Downloads

Projector Placement for Retro Reflective

Do not install projector at an angle that is greater than 5 degrees off the vertical axis from the screen. The ambient light filtration layer in the material is designed to absorb light rather than reflect it.
