Electric Screen Accessory

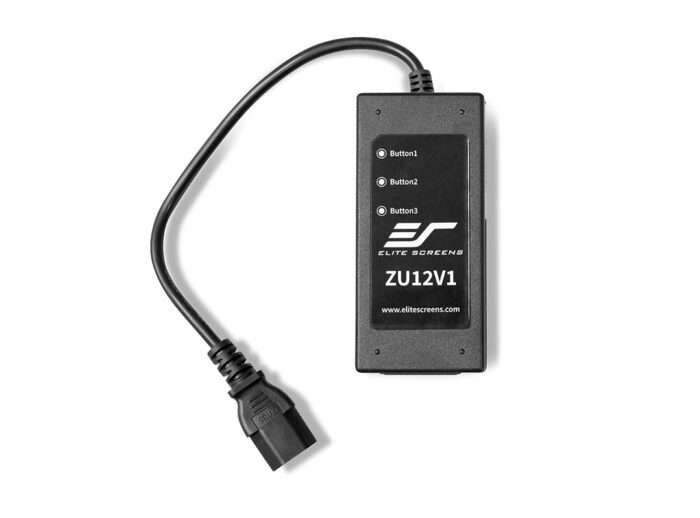

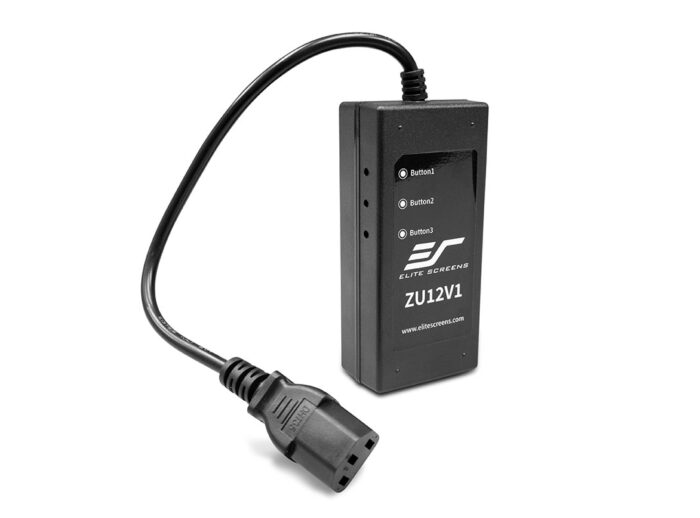

Wireless 5-12V Projector Trigger | ZU12V1
The perfect solution for projectors without a 12 Volt Trigger output.
- Universal wireless projector trigger
- Uses projector’s power to send a wireless radio frequency signal to your Elite Screens electric projection screen
- Compatible ONLY with RC1 version Electric Drop Down/Up and Floor-Rising Up/Down screens.
- No 12V trigger output required from projector
- Synchronizes to the projector’s power cycle to wirelessly drop/rise or rise/drop the screen
*Not compatible with Non-RC1 version screens
- Compatible Products: Spectrum, Spectrum 2 (if Optional Remote Kit ZPM-RT3 is Installed), Spectrum AcousticPro UHD, VMAX 3, VMAX Tab-Tension 3, Saker Tab-Tension AcousticPro UHD, Starling Tab-Tension 2 CineGrey 5D, Starling Tab-Tension 2 CineGrey 4D, Starling Tab-Tension CineGrey 4D AT, Starling Tab-Tension CLR, Starling Tab-Tension CLR 3, CineTension 3, CineTension 3 WraithVeil Dual, Evanesce B, Evanesce Tab-Tension B, Evanesce Tab-Tension B CineGrey 5D, Evanesce AcousticPro UHD
- Incompatible Products: All Non-RC1 versions and Yard Master Electric/Yard Mater Electric Tension, Yard Master Wireless, Yard Master Tab-Tension Wireless
Yes. This device goes between the projector and plug. It is designed for projector w/o low voltage trigger port to work with Elite Screen motorized screen.
For the instructional guide (PDF) on synchronizing the ZU12V, please click here.
To watch the instructional video
Since the Spectrum’s Infrared (IR) Sensor is hidden within the ceiling, there are a few options in which to control a ceiling installed Spectrum Screen:
- IR Eye Extender (ZSP-EYE&12V): With the need of line of sight, the IR signal will not be sensed by the IR receiver built within the housing of the Spectrum. By using an IR eye extender that attaches via the Spectrums all purpose RJ45 port, the extended sensor provides a solution to this problem.
- Radio Frequency (RF) Remote (ZSP-RF-B, ZSP-RF-W): The Spectrum, unfortunately, does not come with an RF remote. It does, however, have an RF receiver built into the housing. Without the need of direct line of sight, an RF remote would be a good control option.
- In-Wall Switch (ZIW-B, ZIW-W, ZIW-W1): The spectrum comes with an all purpose RJ45 port. By routing a cable within the wall, the In-Wall Switch provides a close proximity control option. In addition, you can create your own in-wall switch by purchasing only our ZIW-Module.
- Wireless 12V Trigger (ZSP-TR01): Use your projector as a screen control option by hooking up this simple device to your projector’s output trigger port. If your screen doesn’t have an output trigger port, the Universal Wireless 12V Projector Trigger (ZU12V) works just as well for all projectors.
Elite Screens offers a wireless Universal 5-12 volt projector accessory (Part# ZU12V) for projectors that do not have a trigger output. Contact your preferred Elite Screens reseller or visit shop.elitescreens.com for information about purchasing this product.
A: The ZU12V is compatible only with Electric/Motorized drop down screens using Ver 2.0 or 3.0 circuit boards. You can typically find this information on your Radio Frequency remote control.
Electric/Motorized Screens that are not compatible:
• Floor-Rising Electric/Motorized screens
• All Yard Master Electric/Motorized screen
• Drop down Electric/Motorized screens
– New RC1 circuit board. For example, Radio Frequency remote has part number ZRC1-RF on the back.
– ZZ Type
– J Type
– X Type
Q. How do I determine if my projector is compatible with the ZU12V1 or ZUSBV-RC1 Wireless Trigger?
A. The ZU12V1 wireless trigger is intended for projectors without a 12V trigger output. It connects directly between the projector and its power cable.
The ZUSBV-RC1 wireless trigger is designed for projectors with a USB Type-A power port (5V). It uses the projector’s USB power supply to synchronize with your electric screen.
Note: Both wireless triggers are only compatible with Elite electric screens equipped with the RC1 control system.
2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
