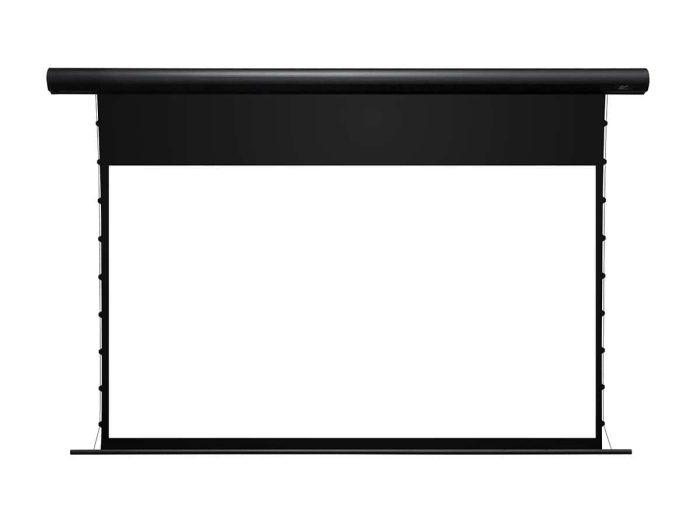

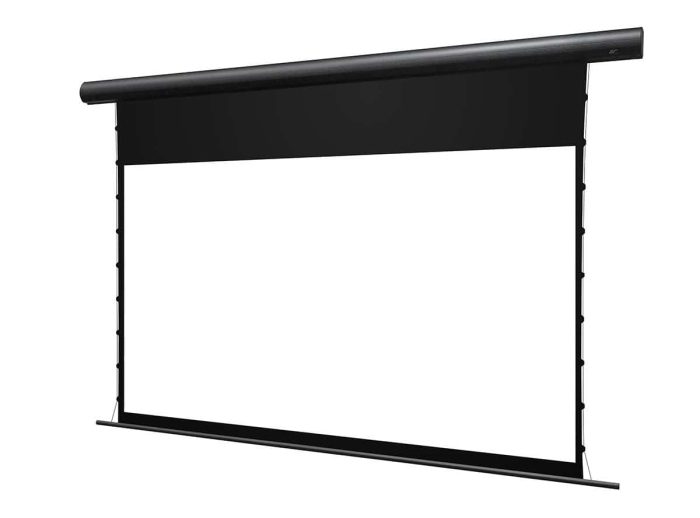

Outdoor Electric Tab-Tension Projection Screen
Yard Master Electric Tension CineWhite® Series
The Yard Master Electric Tension CineWhite® Series is an outdoor electric screen that is IP33 rated for water protection for outdoor applications. The tab-tension design supports a front projection surface with perfect uniform flatness. This allows you to use either an ultra, short, or standard-throw projectors.
The CineWhite® material provides excellent brightness uniformity, color reproduction with superb image clarity which makes it a must for outdoor home or commercial video applications. It is ideal for nighttime movie presentations.
The screen comes with a Radio Frequency remote control that doubles as a wireless 12-volt projector trigger that coordinates the screen’s drop and rise with the projector’s power cycle.
| Product Weight | N/A |
|---|---|
| Overall Dims | N/A |
| Viewing Angle | 180° |
| Gain | 1.1 |
| Compatible Projection | Ultra Short Throw, Short Throw, Standard "Long" Throw |
| Material Type | Matte White |
Screen Material
- CineWhite® 1.1 Gain matte white flexible front projection material
- Wide viewing angle allows the audience to see a clear, bright, uniform picture from any angle
- Standard 4-side black masking borders absorb projector overshoot while enhancing visual contrast
- Black backing eliminates light penetration for enhanced brightness and color saturation to prevent picture degradation
- Compatible with Standard, Short, and Ultra-Short Throw Projectors
- Compatible with Full HD, Ultra HD (4K/8K) and Active 3D projectors
- ISF Certified for accurate color reproduction – An industry standard for high-fidelity visual display systems
- Available in diagonal sizes 110”/125” and 140” with a 16:9 aspect ratio
Design and Installation
- Designed for outdoor use without compromising its home theater visual appeal
- Dynamic indoor home theater quality with the durability of an outdoor product
- Ideal for backyards, patios, pool decks, and recreation room installations

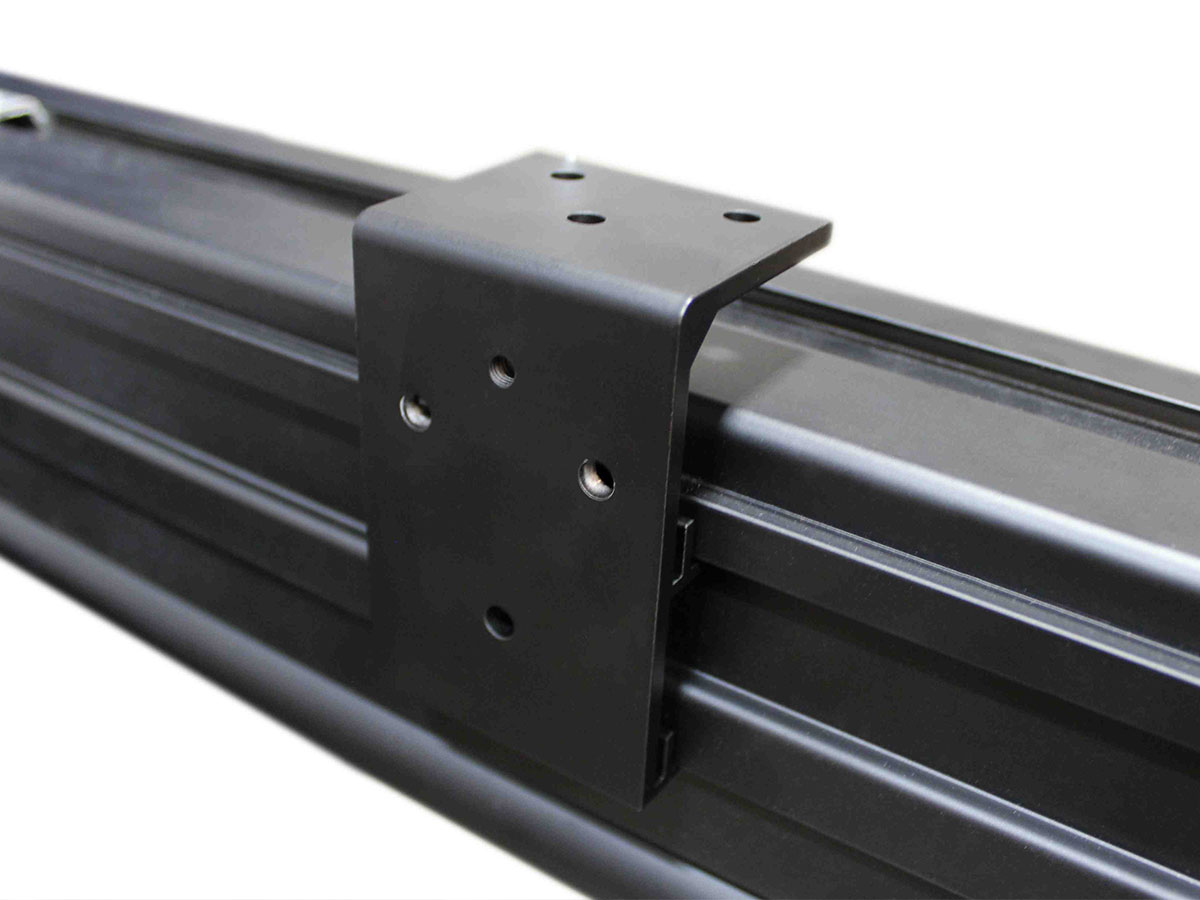

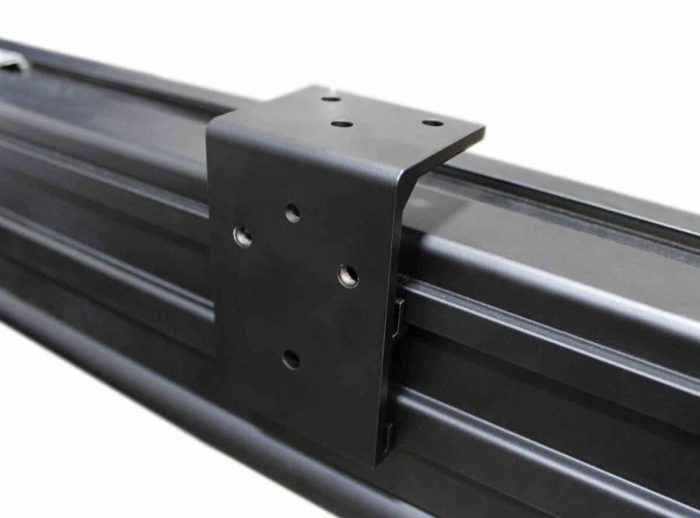

- Rust resistant aluminum floating brackets allow flush wall/ceiling installations to be perfectly centered

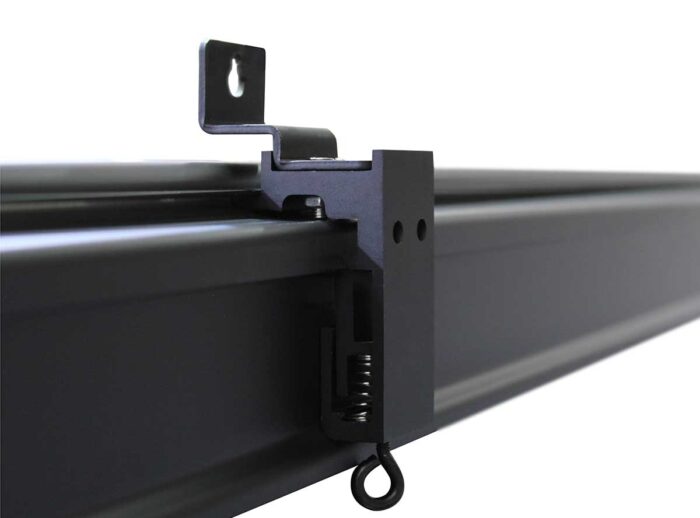

- Floating eyebolt construction enables hanging installations

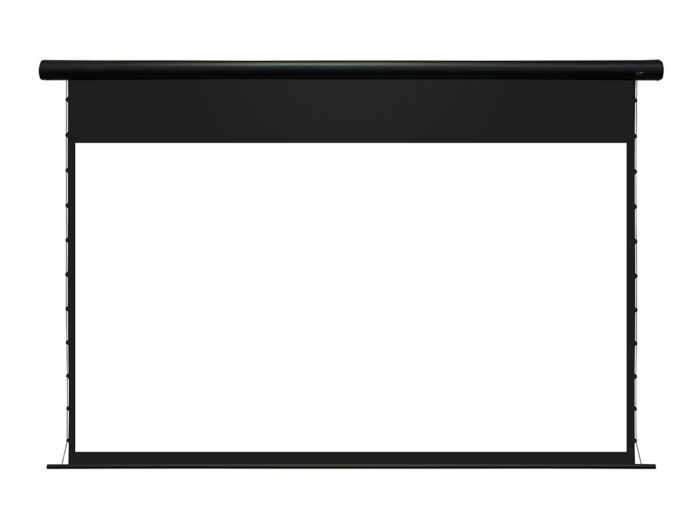

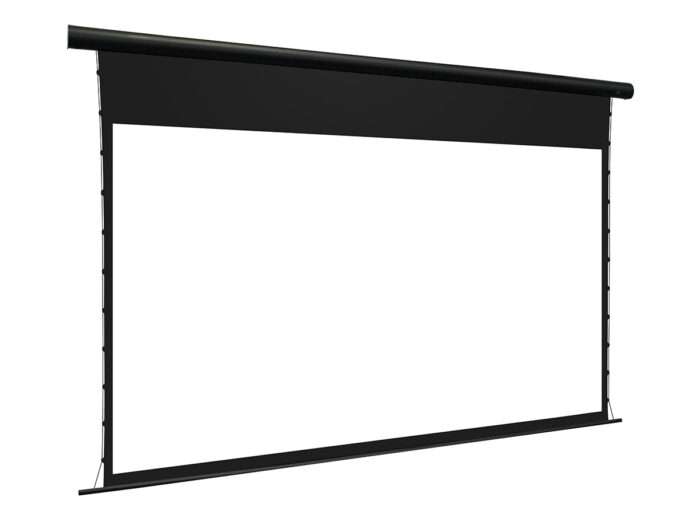

- Tab-tension design provides uniform flatness over the entire screen surface for use with standard, short-throw and UST projectors

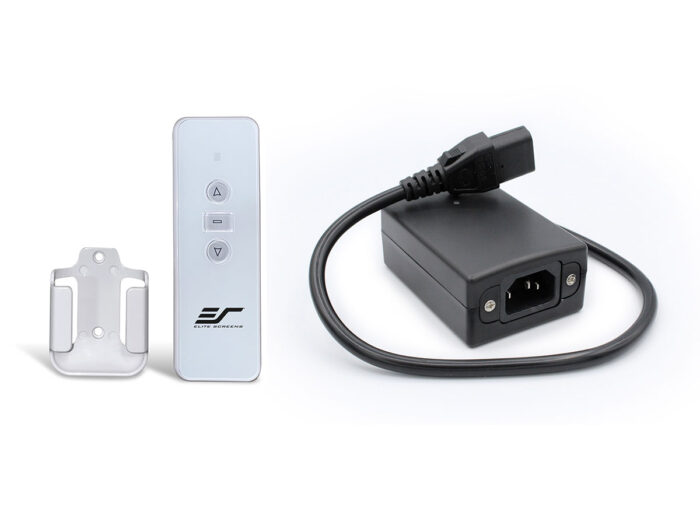

- Radio Frequency remote for long range operation without line of sight required
- Wireless 12-volt projector trigger included to synchronize the projector’s power cycle for drop/rise operation of the screen
- IP33 Rated for protection against water spray less than 60 degrees from vertical
Quality and Reliability
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
Dimensions Tables
User Guides
Comparison Tables
Others
Outdoor Screen Accessories
After the screen closes upon the initial syncing process, simply turn off the projector’s power cycle, and restart it again. When the projector turns back on, the screen will deploy to its fullest extent.
Wireless 12V Trigger for Yard Master Electric – ZOMS-TR12V
For the instructional guide on synchronizing the ZU12V, please click here.
Here are the instructions on how to sync your RF remote. Radio Frequency (RF) Remote Synchronization Instructions for: ZOMS-RF-W-V1.0 and ZOMS-RF-W-V2.0
1. Unplug the screen’s power cable from the power outlet.
2. Press and HOLD the UP button on the RF remote
3. While holding the UP button, plug the screen’s power cable back into the power outlet. a. You should hear a single “beep” when the power cable has been plugged in, indicating it has entered pairing mode.
4. After hearing a set of multiple “beeps”, release UP button for 2 seconds, then press UP button again.
5. You should now be able to control your electric screen with the RF remote control.
6. If unsuccessful repeat from Step 1.
All Yard Master Electric Screens only use Radio Frequency to control the screen’s operation. If you have a projector that does not have a dedicated 12v trigger output port, you can use the ZOMS-TR12V-V2. This wireless 12v trigger accessory is included with all Yard Mater Electric/Tension with serial numbers beginning with 19AE and newer. The ZOMS-TR12V-V2 plugs to the projector’s power terminal so no 12v projector trigger is required. Please click here for instructions on how to program the ZOMS-TR12V-V2.
The RF remote is not rechargeable and requires one button cell CR2032 battery.
Yard Mater Electric/Tension screens
50° – 104° F (10° – 40° C)
Here are the instructions on how to sync your RF remote. Radio Frequency (RF) Remote Synchronization Instructions for: ZOMS-RF-W-V1.0 and ZOMS-RF-W-V2.0
1. Unplug the screen’s power cable from the power outlet.
2. Press and HOLD the UP button on the RF remote
3. While holding the UP button, plug the screen’s power cable back into the power outlet. a. You should hear a single “beep” when the power cable has been plugged in, indicating it has entered pairing mode.
4. After hearing a set of multiple “beeps”, release UP button for 2 seconds, then press UP button again.
5. You should now be able to control your electric screen with the RF remote control.
6. If unsuccessful repeat from Step 1.
All Yard Master Electric Screens only use Radio Frequency to control the screen’s operation. If you have a projector that does not have a dedicated 12v trigger output port, you can use the ZOMS-TR12V-V2. This wireless 12v trigger accessory is included with all Yard Mater Electric/Tension with serial numbers beginning with 19AE and newer. The ZOMS-TR12V-V2 plugs to the projector’s power terminal so no 12v projector trigger is required. Please click here for instructions on how to program the ZOMS-TR12V-V2.
For a quick explanation on the IP33 rating
2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
