a moiré-free self-supported acoustically transparent front projection screen material

AcousticPro UHD

NFPA 701 Certified Products
Acoustically Transparent Screens

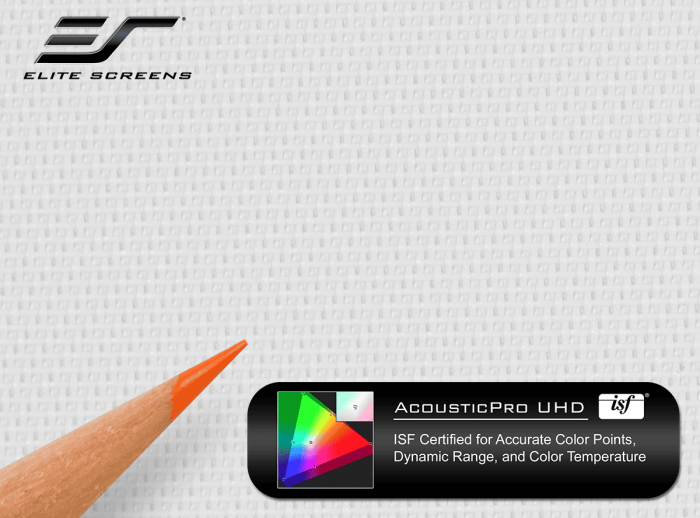

The AcousticPro UHD (ultra-high definition) is a moiré-free self-supported acoustically transparent front projection screen material. The dense synthetic perforated weave is compatible with Ultra-High Definition/4K resolutions while mitigating light penetration for a brighter picture. The AcousticPro UHD design maximizes sound penetration with minimal attenuation without compromising picture quality. The AcousticPro UHD material’s wide diffusion uniformity offers a broad viewing angle with superb picture quality across the entire surface.This provides equal brightness levels on or off axis.

“Speaking of “observing”, the Electric125H-AUHD performed admirably across a diversity of content and at all hours of day and night; its ambient light suppression was top-notch.” – Brian Dipert, EDN Network

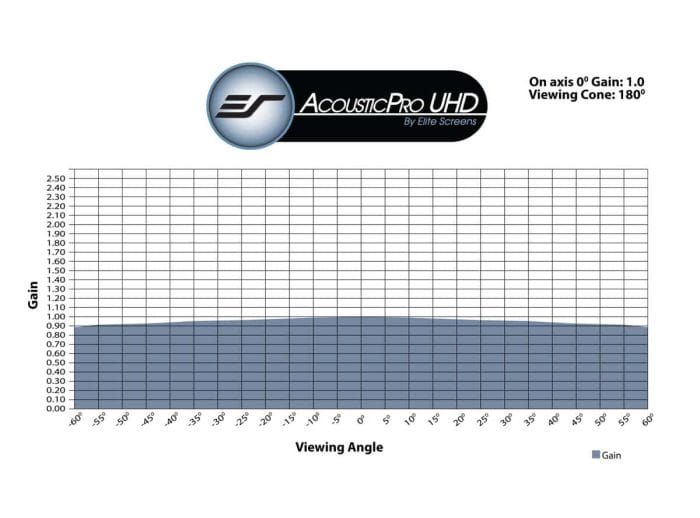

Gain

1.0

Viewing Angle

180°

Compatible Projection

Standard "Long" Throw

Material Type

Acoustic Transparent

Material Hole Size

0.32 mm (avg)

Certifications

NFPA 701 Certified

  • Gain: 1.0
  • Viewing Angle: 180° (90°L/R)
  • Moiré-free perforated weave acoustically transparent material
  • Wide diffusion uniformity – maintains luminance levels throughout entire surface
  • Mildew Resistant
  • 4K UHD, Active 3D, and HDR ready
  • Mean Attenuation: -2.36dB
  • Flame Retardant: Complies with NFPA 701 Standards

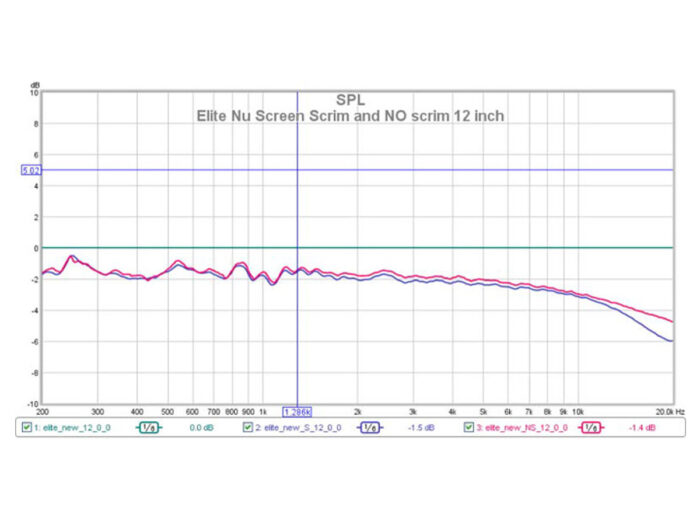

Tabular Response at 0° Angle of Incidence

Avg. Gain dBMin. Gain dBMax. Gain dBBand
-1.5-1.7-1.4100Hz- 500Hz
-1.7-1.8-1.6500Hz- 1000Hz
-2.3-3.4-1.81000Hz- 10000Hz
-4.0-4.6-3.410000Hz- 18000Hz



Tabular Response at +/- 15 ° Angle of Incidence

AngleMin. Variation (dB)Max. Variation (dB)Band
Horizontal +/-1.5°-0.5-1.7100Hz- 1000Hz
Horizontal +/-1.5°-0.4-2.210000Hz- 18000Hz
Vertical +/-1.5°-0.1-1.410Hz- 10000Hz
Vertical +/-1.5°-0.2-3.010000Hz- 18000Hz

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

  • Gain: 1.0
  • Viewing Angle: 180° (90°L/R)
AcousticPro UHD

Q: Is the AcousticPro UHD/CineWhite A8K/CineGrey 4D AT/CineGrey 3D AT compatible with my 3D projector?
Q: Is the AcousticPro UHD compatible with my 3D projector?

The AcusticPro UHD/CineWhite A8K/CineGrey 4D AT/CineGrey 3D AT is compatible with Active 3D projectors.  As the screen is not polarized, it will not work with Passive 3D applications.

Q: Will the AcousticPro UHD material develop waves or curl over time?
Q: Will the AcousticPro UHD material develop waves or curl over time?

The AcousticPro UHD material is a self-supporting, rigid material making it capable of withstanding curling/waving over time as long as it is not in a cold environment.  We strongly recommend using the product in a controlled environment with a temperate of approximately 74 degrees Fahrenheit.

Q: What Screen Series is the AcousticPro UHD available on? Do you have a tab-tension series with the AcousticPro UHD material?
Q: What Screen Series is the AcousticPro UHD available on? Do you have a tab-tension series with the AcousticPro UHD material?

The AcousticPro UHD is available in our Spectrum Series (non-tensioned), Saker Tab-Tension Series (Tensioned), and Evanesce Series.

Q: Is the black border around the AcousticPro UHD material acoustically transparent as well in the electric drop down series products?
Q: Is the black border around the AcousticPro UHD material acoustically transparent as well in the electric drop down series products?

“Yes, the black border is made of the same material as the AcousticPro UHD, thus it is acoustically transparent.”

Q: Does the AcousticPro UHD material have a black backing in the electric drop down series products?
Q: Does the AcousticPro UHD material have a black backing in the electric drop down series products?

Currently, the AcousticPro UHD does not have black backing. However, the AcousticPro UHD incorporates a dense synthetic weave with an average size perforation of 0.32mm designed to mitigate light penetration.

Q: Can I use the AcousticPro UHD/CineWhite A8K material in a room with ambient light?
Q: Can I use the AcousticPro UHD/CineWhite A8K material in a room with ambient light?

The AcousticPro UHD/CineWhite A8K performs at its best in a light controlled environment, not in a room that will have ambient light. The material is a fabric with a special weave pattern for projection use. It is suggested to go with our standard CineWhite® material if a matte white screen is needed. Or better yet, our very best CineGrey 3D® or CineGrey 5D® material will perform better with a higher gain and Angular-Reflective front projection with ambient light rejecting technology.

Q: How far should I place my speakers behind the CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT and AcousticPro UHD (Acoustically Transparent) screen materials?
Q: How far should I place my speakers behind the CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT and AcousticPro UHD (Acoustically Transparent) screen materials?

A projection screen mounted flush against the wall over a properly installed in-wall speaker will have a sufficient distance by itself. There will generally be about a 1” total distance between the speaker’s dust cap (depending on make/model) and the screen with a 5mm (.2”) spacing between an in-wall speaker’s grill and the AT screen material itself.

Q: Do the AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT support passive 3D (polarized glasses)?
Q: Do the AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT support passive 3D (polarized glasses)?

No they are not polarized and do not support passive 3D.

Q: How much room is recommended between in-wall speakers and acoustically transparent screen materials AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT?
Q: How much room is recommended between in-wall speakers and acoustically transparent screen materials AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT?

As long as the in-wall speakers do no touch the materials or approximately 1”.

Q: Will I sacrifice picture quality using Elite’s AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT (Acoustically Transparent) screen materials?
Q: Will I sacrifice picture quality using Elite’s AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT (Acoustically Transparent) screen materials?


All acoustically transparent materials on the market today are light enough in thickness to allow sound to penetrate it with low-level attenuation (decrease in sound quality) but normally come at the cost of having considerable light loss as well. Elite’s AcousticPro 1080P3 acoustically transparent (AT) material is an exception to this rule.  It has an astonishingly fine (.01mm) micro-perforated texture that allows sound to breathe through the fabric with minimal attenuation. At the same time, it allows the video aspects of the material to perform on the same level as a typical matte-white (non-acoustic) material does. The ultra-fine perforations of the AcousticPro 1080P3 “AT” material allows it to be used with high resolution (4096×2160 pixel ratio)  projectors. A special reflective compound coats the surface of Elite’s 1080P acoustic material to compensate for light penetration by reflecting the brightness of the projected image. All these features come together to form a product with superior acoustic transparency that has just 1% light loss while presenting a neutral color temperature (6500°-7000° Kelvin). This is equivalent and in some cases, even surpassing in video performance to a standard matte white non-acoustic projection screen.

Q: Is the black top drop also “acoustic” material on the electric drop down AcousticPro UHD models?
Q: Is the black top drop also “acoustic” material on the electric drop down AcousticPro UHD models?

The entire material is made of the AcousticPro UHD, so it is transparent.
Note: Black masking borders are entirely made of the AcousticPro UHD sound transparent material.

Q: How can I determine the front and rear side of an AcousticPro material?
Q: How can I determine the front and rear side of an AcousticPro material?

Please refer to the images below to the determine the front and rear side.

Vertical
Horizontal
