Acoustic transparent Fixed Frame Projection Screen

Aeon AcousticPro UHD Series

NFPA 701 Certified Products
Acoustically Transparent Screens

The Aeon AcousticPro UHD is an acoustically transparent (AT) Ultra-Hi Def fixed frame projection screen. The AcousticPro UHD acoustically transparent material is designed to complement in-wall speakers while allowing sound to pass through the material with minimal attenuation. Its tight perforated weave design allows a superior AT performance without sacrificing picture quality.

Product WeightN/A
Overall DimsN/A
Viewing Angle

180°

Gain

1.0

Screen Material

Compatible Projection

Short Throw, Standard "Long" Throw

Material Type

Acoustic Transparent

Material Hole Size

0.32 mm (avg)

Aeon AcousticPro UHD Assembly

Aeon AcousticPro UHD Product Video

Screen Material

  • AcousticPro UHD sound transparent projection material allows speaker placement behind the material
  • 180° wide viewing angle with 1.0 gain
  • Wide diffusion uniformity
  • Active 3D, 4K Ultra HD, and HDR Ready

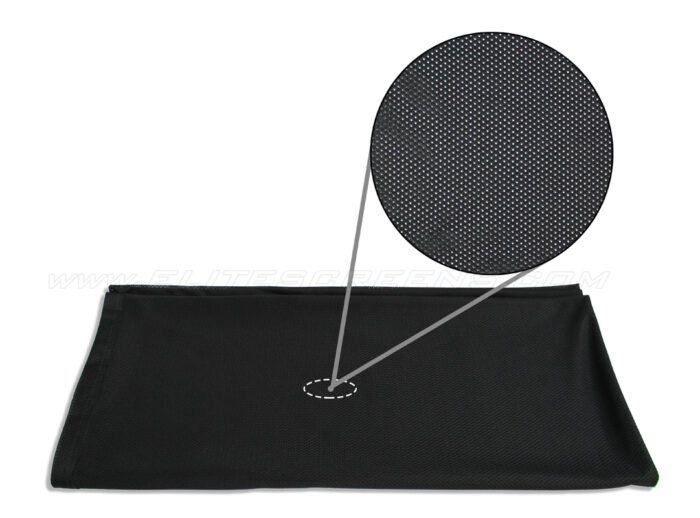

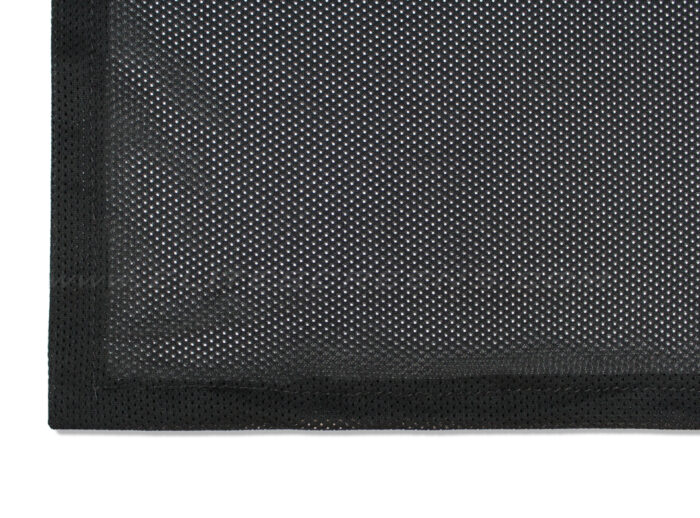

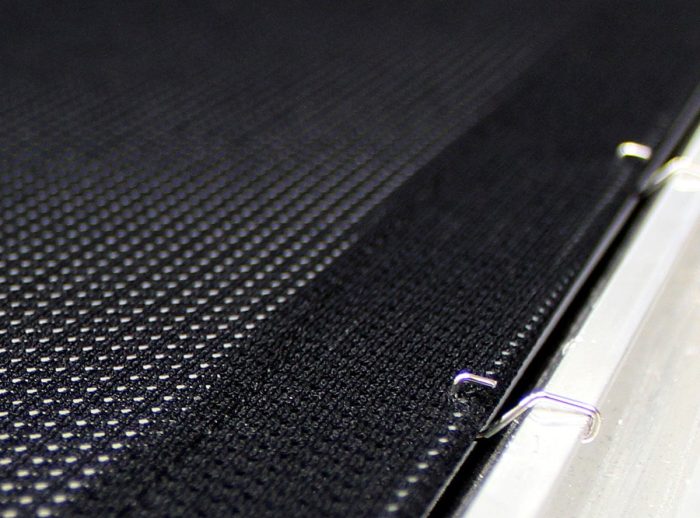

  • Black-backing mesh reduces light reflectivity
  • Perforated weave design stretches over frame for a permanently tight-tensioned flat surface
  • Available in the following diagonal sizes:
    • 100″, 120″, 135″, 150″, 165″ and 180″ in 16:9 format

Design and Installation

  • Aluminum lightweight split-frame design
  • Easy to assemble and install in minutes

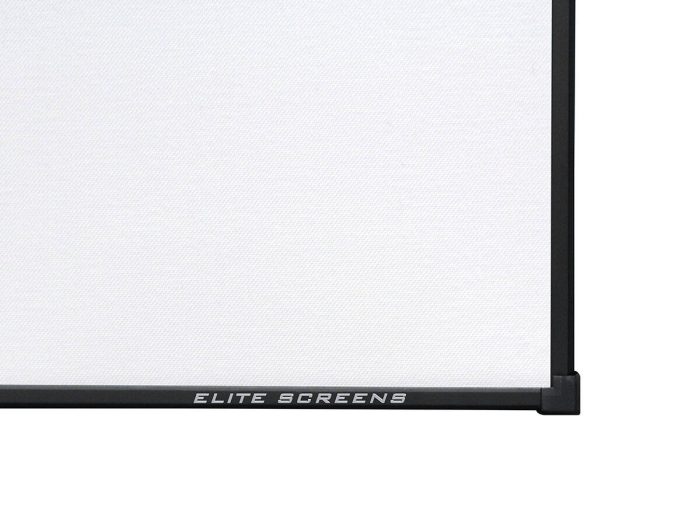

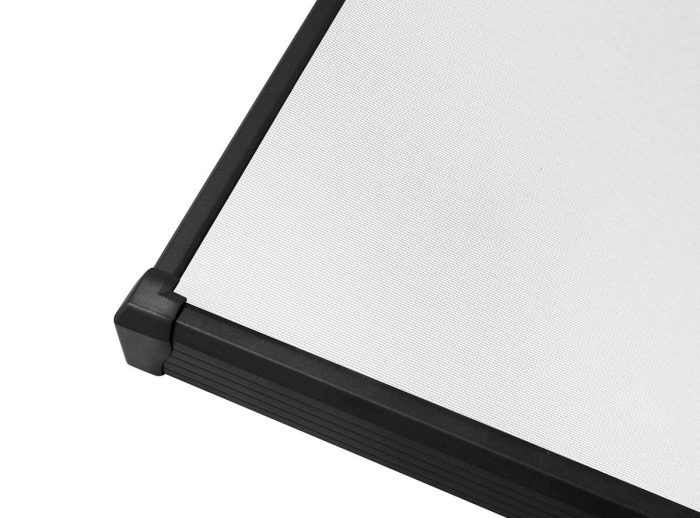

  • EDGE FREE® or install ultra-thin trim
  • Smaller footprint maximizes viewing area
  • Wall mount brackets slide ensuring the frame is properly centered
  • Optional LED backlight kit with remote control – sold separately

Quality and Reliability

  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

Aeon Series FAQ’s

Q: I am assembling the Aeon Fixed Frame screen and do not see a hole for the center support however there is a center support bar included. How do I attach my center support bar?
Q: I am assembling the Aeon Fixed Frame screen and do not see a hole for the center support however there is a center support bar included. How do I attach my center support bar?

There is a hex screw that must first be inserted on the back channel of the bottom and top frames. Then, the center support bar attaches to the hex screw.

Q: I’d like to buy an Aeon CLR® 3 screen but my UST projector is 120 inches. I notice that your screens are oversized by a few inches such as 103” versus 100” or 123” vs 120”. In my case for example, I do not want an empty screen section, but the image to go all the way to the border of the screen. Can you advise?
Q: I’d like to buy an Aeon CLR® 3 screen but my UST projector is 120 inches. I notice that your screens are oversized by a few inches such as 103” versus 100” or 123” vs 120”. In my case for example, I do not want an empty screen section, but the image to go all the way to the border of the screen. Can you advise?

Most ultra-short throw projectors despite claiming they can go up to a certain size, if they have a focus adjustment should be able to adjust the picture to 103” (if a 100” UST projector) or 123” (if a 120” UST projector) and fill in the entire screen area. In some cases, certain UST projectors that have a fixed focus lens can go up to 103” and 123” with minimal impact on the picture and allowing to fill in the screen size.

Q: What are the model numbers for replacement screen material for my fixed frame screen?
Q. What are the model numbers for replacement screen material for my fixed frame screen?

Elite Screens offers replacement materials for 4:3, 16:9, and 2.35:1 fixed frame screens.

Decoding the model number: ZR92WH1-M

ZR- Sable Frame / ezFrame Series Replacement Material
92= Diagonal Size of 92″
W= CineWhite
H= 16:9 Aspect Ratio (V= 4:3, Wide= 2.35:1)
-M = Screen Type

ZAR : Aeon Series Replacement Material
Z-SBSF : Sable Frame B2 Series Replacement Material

Shop links : Sable Frame / ezFrame Series Materials, Aeon Series Materials, Sable Frame B2 Series Materials

General Fixed Frame Screens FAQ’s

Q: What is the advantage of having a black velvet covered frame?
Q. What is the advantage of having a black velvet covered frame?

In addition to an appealing aesthetic appearance, the advantage of having a black velvet covered frame is to help absorb projector overshoot.

Q: Where do I place the center support bar for a fixed frame screen?
Q: Where do I place the center support bar for a fixed frame screen?

Center support bar for larger size fixed frame screens goes inside the top of the groove located on the back of the frame.

Center support bar

Q : Can I flush mount my fixed frame screen directly to the wall/ceiling? I would like the top of the frame to be exactly where the ceiling and wall meet.
Q : Can I flush mount my fixed frame screen directly to the wall/ceiling? I would like the top of the frame to be exactly where the ceiling and wall meet.

Elite Screens does not recommend attempting such an installation as in most cases it would not be possible. This is because the frame has to be lifted directly above and then placed down onto the brackets. The brackets will then latch onto the grooves of the frame and hold it in place. Mounting the wall brackets flush to the wall and ceiling would not provide the clearance needed for the frame to be lifted above the brackets. Elite Screens recommends the wall brackets be placed no closer than 4-6”(depending on the thickness of the frame) below the ceiling as that ditstance would give you the clearance needed to lift the screen above and then onto the brackets.

AcousticPro UHD – Screen Material FAQ’s

Q: Is the AcousticPro UHD/CineWhite A8K/CineGrey 4D AT/CineGrey 3D AT compatible with my 3D projector?
Q: Is the AcousticPro UHD compatible with my 3D projector?

The AcusticPro UHD/CineWhite A8K/CineGrey 4D AT/CineGrey 3D AT is compatible with Active 3D projectors.  As the screen is not polarized, it will not work with Passive 3D applications.

Q: Will the AcousticPro UHD material develop waves or curl over time?
Q: Will the AcousticPro UHD material develop waves or curl over time?

The AcousticPro UHD material is a self-supporting, rigid material making it capable of withstanding curling/waving over time as long as it is not in a cold environment.  We strongly recommend using the product in a controlled environment with a temperate of approximately 74 degrees Fahrenheit.

Q: What Screen Series is the AcousticPro UHD available on? Do you have a tab-tension series with the AcousticPro UHD material?
Q: What Screen Series is the AcousticPro UHD available on? Do you have a tab-tension series with the AcousticPro UHD material?

The AcousticPro UHD is available in our Spectrum Series (non-tensioned), Saker Tab-Tension Series (Tensioned), and Evanesce Series.

Q: Is the black border around the AcousticPro UHD material acoustically transparent as well in the electric drop down series products?
Q: Is the black border around the AcousticPro UHD material acoustically transparent as well in the electric drop down series products?

“Yes, the black border is made of the same material as the AcousticPro UHD, thus it is acoustically transparent.”

Q: Does the AcousticPro UHD material have a black backing in the electric drop down series products?
Q: Does the AcousticPro UHD material have a black backing in the electric drop down series products?

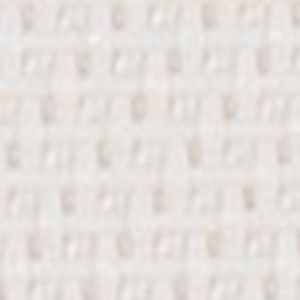

Currently, the AcousticPro UHD does not have black backing. However, the AcousticPro UHD incorporates a dense synthetic weave with an average size perforation of 0.32mm designed to mitigate light penetration.

Q: Can I use the AcousticPro UHD/CineWhite A8K material in a room with ambient light?
Q: Can I use the AcousticPro UHD/CineWhite A8K material in a room with ambient light?

The AcousticPro UHD/CineWhite A8K performs at its best in a light controlled environment, not in a room that will have ambient light. The material is a fabric with a special weave pattern for projection use. It is suggested to go with our standard CineWhite® material if a matte white screen is needed. Or better yet, our very best CineGrey 3D® or CineGrey 5D® material will perform better with a higher gain and Angular-Reflective front projection with ambient light rejecting technology.

Q: How far should I place my speakers behind the CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT and AcousticPro UHD (Acoustically Transparent) screen materials?
Q: How far should I place my speakers behind the CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT and AcousticPro UHD (Acoustically Transparent) screen materials?

A projection screen mounted flush against the wall over a properly installed in-wall speaker will have a sufficient distance by itself. There will generally be about a 1” total distance between the speaker’s dust cap (depending on make/model) and the screen with a 5mm (.2”) spacing between an in-wall speaker’s grill and the AT screen material itself.

Q: Do the AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT support passive 3D (polarized glasses)?
Q: Do the AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT support passive 3D (polarized glasses)?

No they are not polarized and do not support passive 3D.

Q: How much room is recommended between in-wall speakers and acoustically transparent screen materials AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT?
Q: How much room is recommended between in-wall speakers and acoustically transparent screen materials AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT?

As long as the in-wall speakers do no touch the materials or approximately 1”.

Q: Will I sacrifice picture quality using Elite’s AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT (Acoustically Transparent) screen materials?
Q: Will I sacrifice picture quality using Elite’s AcousticPro UHD/CineWhite A8K/CineGrey 3D AT/CineGrey 4D AT (Acoustically Transparent) screen materials?


All acoustically transparent materials on the market today are light enough in thickness to allow sound to penetrate it with low-level attenuation (decrease in sound quality) but normally come at the cost of having considerable light loss as well. Elite’s AcousticPro 1080P3 acoustically transparent (AT) material is an exception to this rule.  It has an astonishingly fine (.01mm) micro-perforated texture that allows sound to breathe through the fabric with minimal attenuation. At the same time, it allows the video aspects of the material to perform on the same level as a typical matte-white (non-acoustic) material does. The ultra-fine perforations of the AcousticPro 1080P3 “AT” material allows it to be used with high resolution (4096×2160 pixel ratio)  projectors. A special reflective compound coats the surface of Elite’s 1080P acoustic material to compensate for light penetration by reflecting the brightness of the projected image. All these features come together to form a product with superior acoustic transparency that has just 1% light loss while presenting a neutral color temperature (6500°-7000° Kelvin). This is equivalent and in some cases, even surpassing in video performance to a standard matte white non-acoustic projection screen.

Q: Is the black top drop also “acoustic” material on the electric drop down AcousticPro UHD models?
Q: Is the black top drop also “acoustic” material on the electric drop down AcousticPro UHD models?

The entire material is made of the AcousticPro UHD, so it is transparent.
Note: Black masking borders are entirely made of the AcousticPro UHD sound transparent material.

Q: How can I determine the front and rear side of an AcousticPro material?
Q: How can I determine the front and rear side of an AcousticPro material?

Please refer to the images below to the determine the front and rear side.

Vertical
Horizontal
