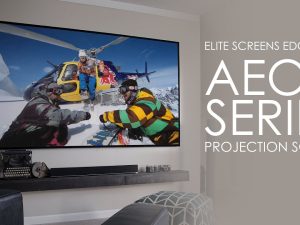

EDGE FREE® Screen fixed frame projection screen
Aeon Series
The Aeon Series is a fixed frame projection screen that uses Elite’s EDGE FREE® technology. The EDGE FREE® design resembles a giant size flat panel TV display. The Aeon includes an ultra-thin trim as an installation option to further enhance the overall appearance.
Available in the following front projection materials
| Material Name | Gain | Viewing Angle | Description |
| CineWhite® UHD-B | 1.3 | 180° | The CineWhite® UHD-B (Tensioned Matte White) is a 1.3 gain flexible front projection screen material that is ISF certified for achieving accurate color reproduction and image fidelity. It is black backed which eliminates light penetration for enhanced brightness and color saturation to prevent picture degradation. |

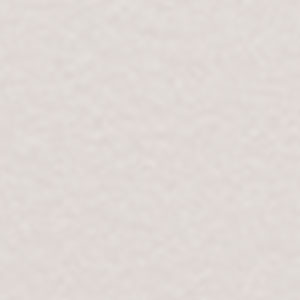

| CineGrey | 1.0 | 160° | CineGrey is designed for low contrast Home Cinema projectors. It enhances black levels and color contrast while maintaining a neutral color temperature. Recommended for rooms with controlled lighting. Works with Standard, Ultra/Short-throw 1080P/4K projectors. |
- Stretches over frame for a permanently tight-tensioned flat surface
- Active 3D, 4K Ultra HD, and HDR Ready
- Available in the following range of diagonal sizes:
- 100″ – 200″ in 16:9 format
- 103”, 125″, 138″ and 158″ in 2.35:1 format
Design and Installation
- Aluminum lightweight split-frame design
- Easy to assemble and install in minutes
- EDGE FREE® or install ultra-thin trim
- Smaller footprint maximizes viewing area
- Wall mount brackets slide ensuring the frame is properly centered
- Optional LED backlight kit with remote control – sold separately
Quality and Reliability
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
User Guides
- User Guide – EN Type (PDF)
- User Guide – M Type V2 (PDF) – Rods/Spring
- User Guide – Z Type (PDF) – Discontinued
Dimensions Tables
- Dimensions Table – M Type (PDF)
- Dimensions Table – EN Type (PDF)
- Dimensions Table – Z Type (PDF) – Discontinued
Others
Aeon Series FAQ’s
There is a hex screw that must first be inserted on the back channel of the bottom and top frames. Then, the center support bar attaches to the hex screw.
Most ultra-short throw projectors despite claiming they can go up to a certain size, if they have a focus adjustment should be able to adjust the picture to 103” (if a 100” UST projector) or 123” (if a 120” UST projector) and fill in the entire screen area. In some cases, certain UST projectors that have a fixed focus lens can go up to 103” and 123” with minimal impact on the picture and allowing to fill in the screen size.
Elite Screens offers replacement materials for 4:3, 16:9, and 2.35:1 fixed frame screens.
Decoding the model number: ZR92WH1-M
ZR- Sable Frame / ezFrame Series Replacement Material
92= Diagonal Size of 92″
W= CineWhite
H= 16:9 Aspect Ratio (V= 4:3, Wide= 2.35:1)
-M = Screen Type
ZAR : Aeon Series Replacement Material
Z-SBSF : Sable Frame B2 Series Replacement Material
Shop links : Sable Frame / ezFrame Series Materials, Aeon Series Materials, Sable Frame B2 Series Materials
General Fixed Frame Screens FAQ’s
In addition to an appealing aesthetic appearance, the advantage of having a black velvet covered frame is to help absorb projector overshoot.
Center support bar for larger size fixed frame screens goes inside the top of the groove located on the back of the frame.

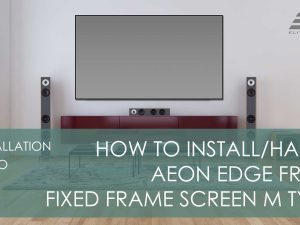

Elite Screens does not recommend attempting such an installation as in most cases it would not be possible. This is because the frame has to be lifted directly above and then placed down onto the brackets. The brackets will then latch onto the grooves of the frame and hold it in place. Mounting the wall brackets flush to the wall and ceiling would not provide the clearance needed for the frame to be lifted above the brackets. Elite Screens recommends the wall brackets be placed no closer than 4-6”(depending on the thickness of the frame) below the ceiling as that ditstance would give you the clearance needed to lift the screen above and then onto the brackets.

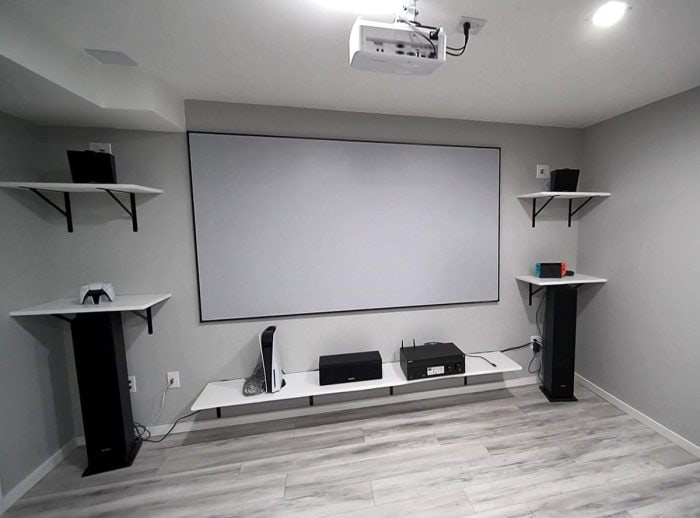

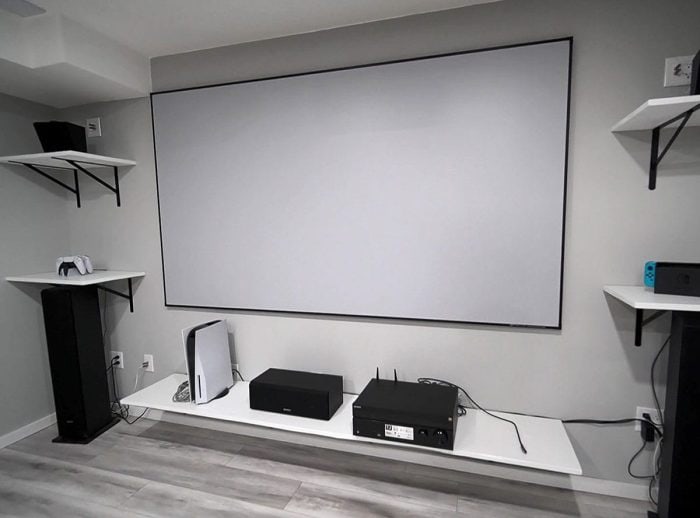

Lifestyle Gallery
Undoctored image of actual projector presentation
