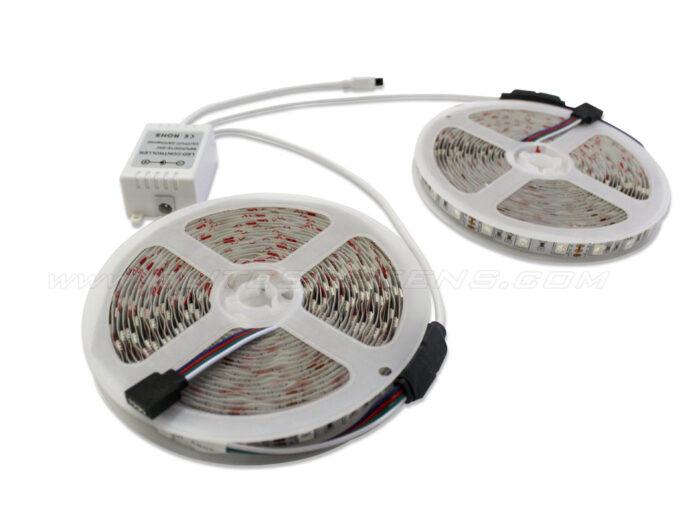

Elite Screens LED Backlight Kit is an optional accessory for the EDGE FREE® Aeon Fixed Frame Screen Series.

Self-Adhesive LED backlighting simply attaches to the back of the Aeon Series Frame
Easily control the light settings with an included IR remote
16 different color options
4 unique display modes
Compatible ONLY with Elite Screens EDGE FREE fixed frame screens
Available for Aeon screen sizes 92″, 100″, 110″, 120″,135″, and 150″ (All 16:9 format)

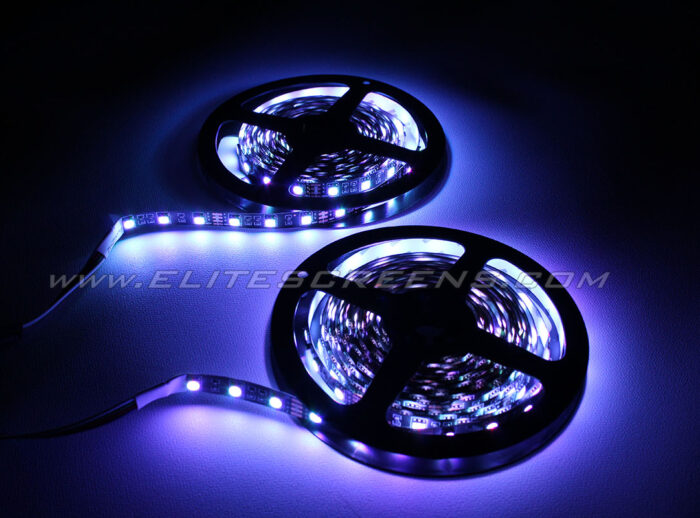

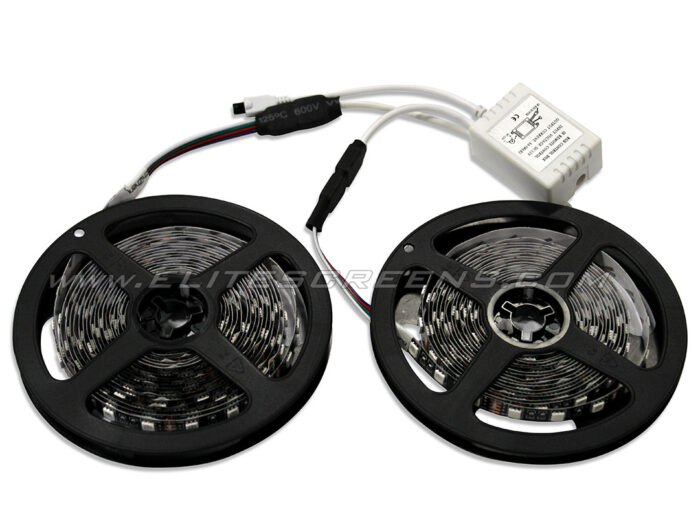

- ZLED120H1 only available in Black
1-Year Manufacturer’s Warranty by Elite Screens, an ISO9001 manufacturer since 2004

Description

Part Numbers

Models	Description
ZLED92H1	Led Backlight Kit for Aeon Series 92" 16:9 models
ZLED100H-103C1	Aeon 100" 16:9 Models: AR100DHD3, AR100H2, AR100WH2, AR100H2-AUHD Aeon 103" 2.35:1 Models: AR103WH2-WIDE
ZLED110H-120H1	Aeon 110" 16:9 Models: AR110DHD3, AR110WH2 Aeon 120" 16:9 Models: AR120DHD3, AR120H2, AR120WH2, AR120H2-AUHD
ZLED135H-125C138C1	Aeon 135" 16:9 Models: AR135DHD3, AR135H2, AR135WH2, AR135H2-AUHD Aeon 125" Model: AR125WH2-WIDE Aeon 138" 2.35:1 Models: AR138WH2-WIDE
ZLED150H165H-158C1	Aeon 150" 16:9 Models: AR150DHD3, AR150WH2, AR150H2-AUHD Aeon 165" 16:9 Model: AR165WH2 Aeon 158" 2.35:1 Model: AR158WH2-WIDE

*NOTE: LED strips can be cut to size to fit properly on the entire frame. See user guide for instructions.
