Portable Ambient Light Rejecting Projector Screen

ezCinema Tab-Tension CineGrey 4D Series

ISF Certified Products

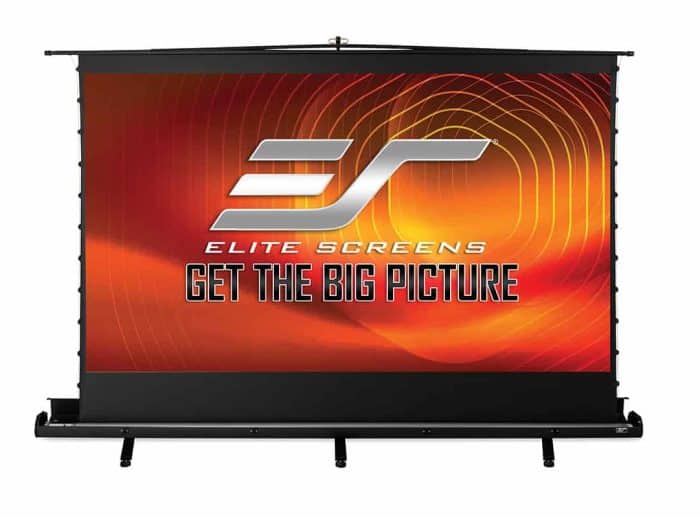

The ezCinema Tab-Tension CineGrey 4D is a portable ceiling ambient light rejecting pull-up projector screen. It is the ideal screen for rooms that have limited or no control of incidental light such as family rooms, lecture halls, boardrooms, or training facilities.
It features a detachable telescoping support bar which allows the screen to be stopped at any position to accommodate various height requirements. The tab-tension design maintains the projection surface taut and flat to produce ripple-free presentations.

Review: ezCinema Tab-Tension CineGrey 4D Series

How to Remove Waves from the ezCinema Tab-Tension CineGrey 4D Series

EzCinema Tab-Tension CineGrey 4d Series Ambient Light Rejecting Screen

Angular-Reflective Projection Screen Setup Instructions

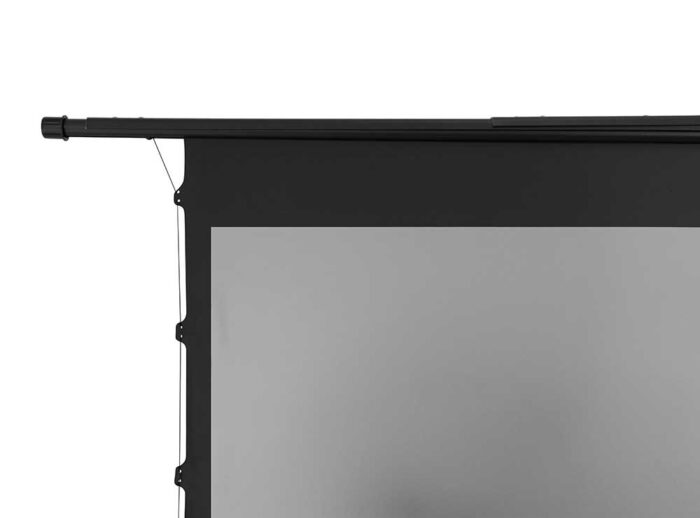

Built-in tightening mechanism

Built-in tightening mechanism

  • Assists tab-tension system stretch screen surface
  • Keeps material flat and taut for ripple-free presentations
  • Eliminates waves/ripples
CineGrey 4D Ceiling Ambient Light Rejecting Screen Material

CineGrey 4D Ceiling Ambient Light Rejecting Screen Material

  • Angular-reflective technology eliminates up to 65% of ambient light from top/bottom/sides
  • Enhances color contrast with excellent image fidelity and uniformity
  • Enjoy contrast-rich presentations in ambient light room environments
  • ISF Certified for accurate color reproduction
  • Not compatible with ultra-short or short throw projectors

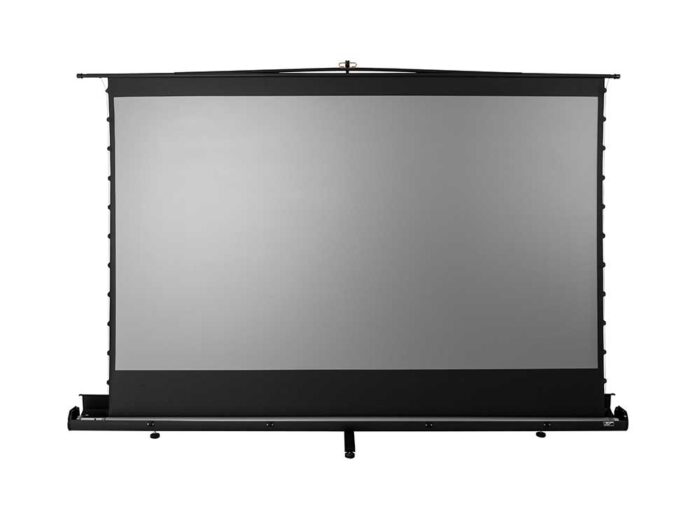

Portable Floor Pull-Up Projector Screen

Portable Floor Pull-Up Projector Screen

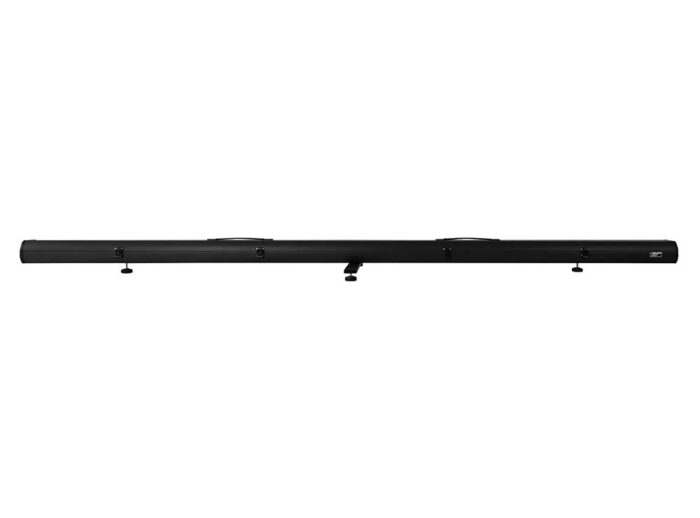

  • Self-contained lightweight aluminum case protects the screen
  • Telescoping support bar is adjustable for various height settings
  • Built-in carrying handle for enhanced mobility
  • Easy to transport and set up for traveling presentations – carrying bag included

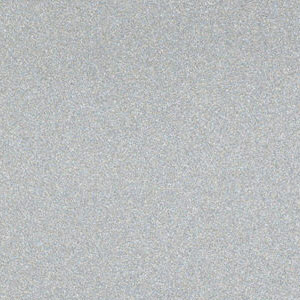

Screen Material

  • CineGrey 4D 1.1 Gain Ambient and Ceiling Light Rejecting (CLR®) front projection material
    • Angular Reflective Material for Standard “Long” Throw Projectors. (NOT Compatible with Ultra/Short Throw Projectors)
    • Multi-layer matrix uses reflective and absorbent micro-particles eliminate up to 63% of ambient light
    • Enhances color contrast with excellent fidelity and uniformity
    • Angular reflectivity negates light scatter artifacts and is ideal for residential or commercial applications
  • Top/side masking black masking borders with adjustable bottom rise masking
  • ISF Certified for accurate color reproduction – An Industry standard for high-fidelity video display systems
  • Available in the following diagonal sizes:

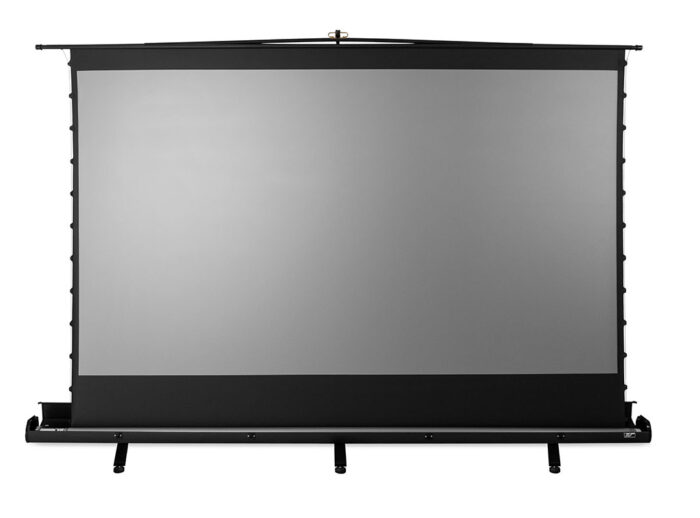

    • 113″ and 121″ in 16:9 aspect ratio

Design and Operation

  • Easy to transport and set up for traveling on-the-go mobile presentations.
  • Ideal for environments with high ambient light such as training facilities, hotel rental, and boardroom/conference rooms.

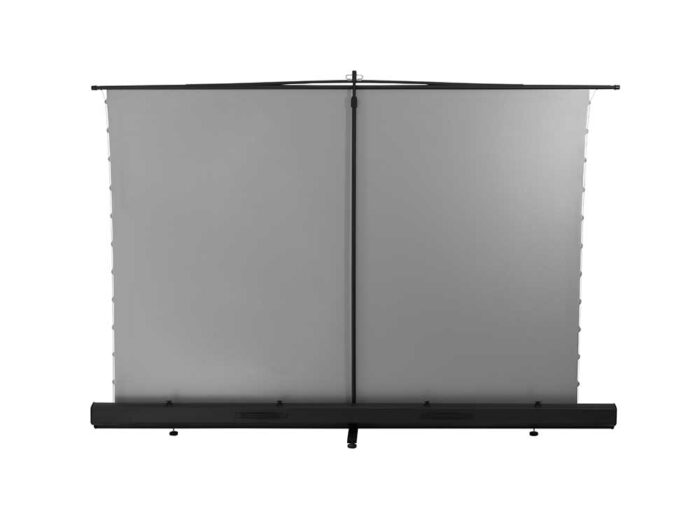

  • Quick and easy positioning is ensured by an adjustable telescopic support bar.

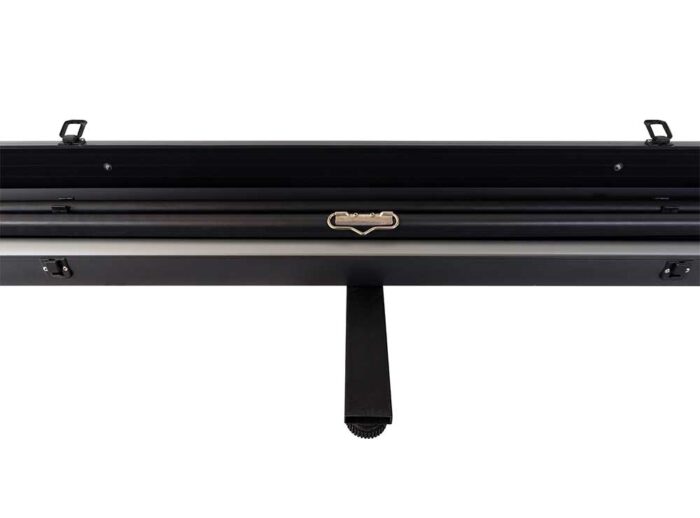

  • Solid rotating floor support feet provide added stability.
  • Cups on feet rotate for a leveled installation.
  • Built-in tensioning mechanism keeps projection surface flat and taut.
  • Integrated carrying handle for enhanced mobility.

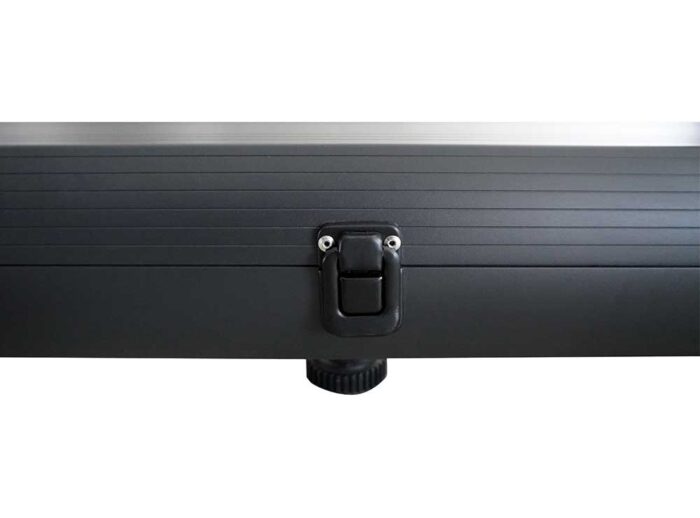

  • Rugged extruded aluminum case protects the screen and is self-contained in a black finish.

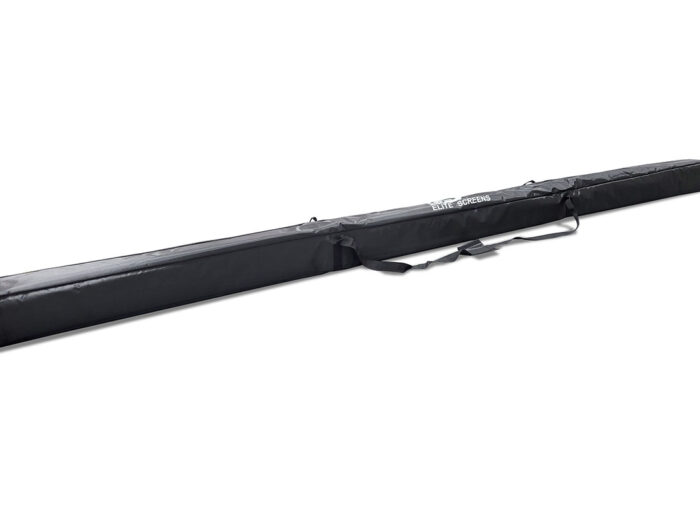

  • Carrying bag included for protection, storage, and easy transportation.

Quality and Reliability

  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

Angular-Reflective Projection Screen Setup Instructions

ezCinema Tab-Tension CineGrey 4D Series FAQs

Q: The ezCinema Tab-Tension CineGrey 4D has a ripple after pulling it up completely out of the case.  Can I adjust anything on the screen to eliminate it?
Q: The ezCinema Tab-Tension CineGrey 4D has a ripple after pulling it up completely out of the case.  Can I adjust anything on the screen to eliminate it?


A: The ezCinema Tab-Tension CineGrey 4D is equipped with a built-in tensioning mechanism located at the left side of the screen’s roller. Instructions are located on the inside of the screen’s cover above the tensioning mechanism. See instructions for reference. Once these instructions have been followed, the screen material should be flat and taut.



CineGrey 4D – Screen Material FAQ’s

Q: Your website says that CineGrey 3D® (AT)/CineGrey 4D (AT)/CineGrey 5D® are not compatible with ultra-short throw projectors. Can you explain what this combination will look like and why it will not work?
Q: Your website says that CineGrey 3D® (AT)/CineGrey 4D (AT)/CineGrey 5D® are not compatible with ultra-short throw projectors. Can you explain what this combination will look like and why it will not work?


The CineGrey 3D® (AT)/CineGrey 4D (AT)/CineGrey 5D® are angular reflective front projection materials that reflect at the mirror-opposite angle. If an ultra-short throw projector is used, the material will reflect the steep narrow light and reflect it upwards instead of to the viewer’s eye level.


Image shows how a UST projector with CineGrey 3D looks like in a room with ambient light.



Image shows how a UST projector with CineGrey 3D® looks like in a room with lights turned off


The image appears to look good, but is still reflecting the projector light upwards and causing a hotspot in the middle of the image. Overhead lights are being absorbed/reflected off the material while providing great color saturation, image brightness, and black levels for a contrast rich presentation. Model# AR100DHD3 – CineGrey 3D® EDGE FREE 100” Diagonal 16:9 Fixed Frame with JVC LX-NZ3B 4K HDR Laser Projector



Image shows how good a performance can be obtained using a standard throw projector with ceiling lights above

Q: Will the CineGrey 3D (AT)/4D (AT)/5D® ambient light rejecting screen material cause the “hot spot” effect?
Q: Will the CineGrey 3D (AT)/4D (AT)/5D® ambient light rejecting screen material cause the “hot spot” effect?

Elite Screens’ CineGrey 3D® (AT)/4D (AT)/5D® is a color neutral smooth surface with sparkling elements to increase screen gain in an ambient light room environment. These special characteristics incorporates a diffusion layer over a highly reflective surface which scatters ambient light while improving picture performance with a brighter image. The projector itself, however also plays a big part in creating a hot spot. Projectors highest brightness levels are focused in the center, and only about 70% to 80% in the corners. In other words, the uniformity itself is not spread entirely even across the screen, thus creating a brighter spot in the center area. To combat this, we recommend the following.

1. Reduce the projector’s light output by choosing an economy mode
2. Install the projector further away from the screen, minimum of 1.5 x the image width
3. Go with a lower gain screen

Q: I have a short throw/ultra-short throw projector, will this projector work with the ambient light rejecting CineGrey 3D® (AT)/CineGrey 4D (AT)/5D® angular-reflective materials?
Q: I have a short throw/ultra-short throw projector, will this projector work with the ambient light rejecting CineGrey 3D® (AT)/CineGrey 4D (AT)/5D® angular-reflective materials?

No, ultra-short and short-throw projectors are not compatible with CineGrey 3D® (AT)/CineGrey 4D (AT)/5D® angular-reflective materials.

Q: Can I use the CineGrey 3D®(AT)/CineGrey 4D (AT)/CineGrey 5D® material for Active 3D technology?
Q: Can I use the CineGrey 3D®(AT)/CineGrey 4D (AT)/CineGrey 5D® material for Active 3D technology?

“Yes they can be used with Active 3D projectors.”

Q: How well does the CineGrey 5D®/CineGrey 3D® (AT)/CineGrey 4D (AT) perform in a dark room environment?
Q: How well does the CineGrey 5D®/CineGrey 3D® (AT)/CineGrey 4D (AT) perform in a dark room environment?

The CineGrey 5D®/CineGrey 3D® (AT)/CineGrey 4D (AT) are great for dark room environment also, but we must understand its limitations. First of all, both materials have narrow viewing angles. So if you wish to have a wide seating arrangement after 80 degrees, you will notice a drop in brightness. Second, because they are higher gain screens they reflect more projector brightness. This may tire your eyes, so we recommend using a less brighter mode if your projector has a such setting. If that is not a problem, then these materials will work. And the best thing is, because they are angular reflective material, the projector’s light will not diffuse in all directions like a matte white material. Meaning that they will not scatter the projector’s light and create side lighting. Thus, eliminating the need to absorb it with black velvet or paint a room really dark. Third, because both of these materials are made with a neutral gray substrate, the color balance and temperature will be exceptional. The dark gray also enhances contrast and great color saturation.

Q: What are the benefits of using CineGrey 3D® (AT)/CineGrey 4D (AT) or CineGrey 5D® material in a dark room with white ceiling and walls?
Q: What are the benefits of using CineGrey 3D® (AT)/CineGrey 4D (AT) or CineGrey 5D® material in a dark room with white ceiling and walls?

Projecting on a matte white screen material in a dedicated Home Cinema, typically requires a dark room environment for a great theatrical experience. Matte White materials diffuse light in all directions since that is their nature. This means that light will scatter everywhere in the room. That is why a dedicated Home Cinema room should try to have as much black walls and light absorbing materials to reduce the amount of scattered light. This scattered light eventually reflects back to the projection image and degrading the contrast ratio, color, and black levels which affect the fidelity of the picture. The CineGrey 5D’s CLR/ALR technology allows the projector’s light to reflect back at the mirror opposite end. This greatly reduces the amount of light scatter and instead focuses the light to the viewer’s sweet spot. In addition, the black microscopic layers improve black levels and color purity to increase the contrast ratio vs a matte white screen material.
