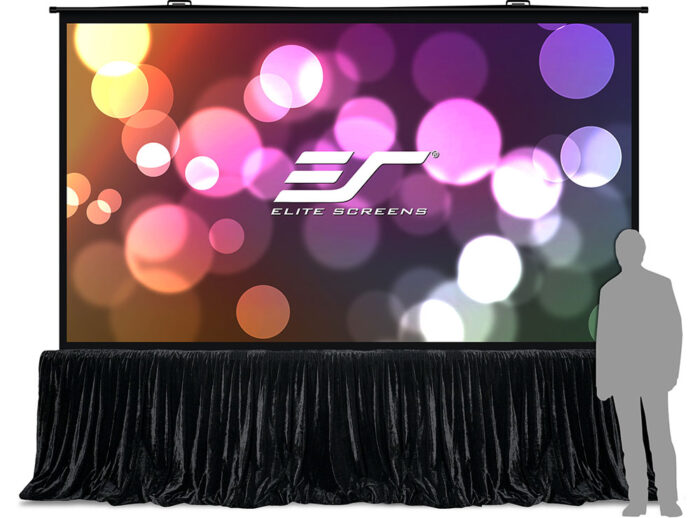

Large-sized Portable pull-up projection screen
QuickStand 5-Second Series
Compatible Projection :

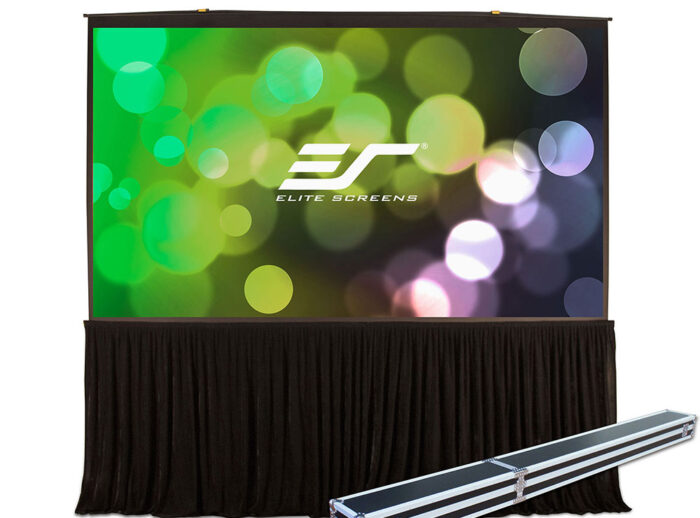

The QuickStand 5-Second Series is a large-sized free-standing portable “pull-up” projection screen. Its portable design makes it ideal for conference rooms and large venue presentations on the go. Other large screen may require more than a half hour to assemble, attach the material and adjust to the right height. The QuickStand 5-Second Screen’s primary advantage is speed. It utlizes an innovative dual cross spring mechanism that allows it to be set up in seconds.
The QuickStand 5-Second Screen is a hassle free versatile solution that can rise out of its casing to the desired height in as little as 5-seconds. It uses Elite Screens MaxWhite® Fiberglass (FG) 1.1 Gain material with wide diffusion uniformity and is encased in an ATA wheeled aluminum stage case for added durability during heavy travel and regular venue applications.
| MaxWhite® Fiberglass | Gain | Viewing Angle | Best for Environments |
|---|---|---|---|
 | 1.1 | 180° | Versatile for multiple applications in a light controlled room Visit Screen Material Page |
Screen Material
- MaxWhite® Fiberglass (FG)ensures flat projection surface
- 180° wide diffusion viewing angle for large audiences
- Not compatible with Ultra/Short-throw Projectors
- Black masking borders enhance picture contrast
- Black-backing eliminates light penetration
- Available in the following diagonal sizes:
- 150″ and 180″ in 16:9 format
Design and Operation

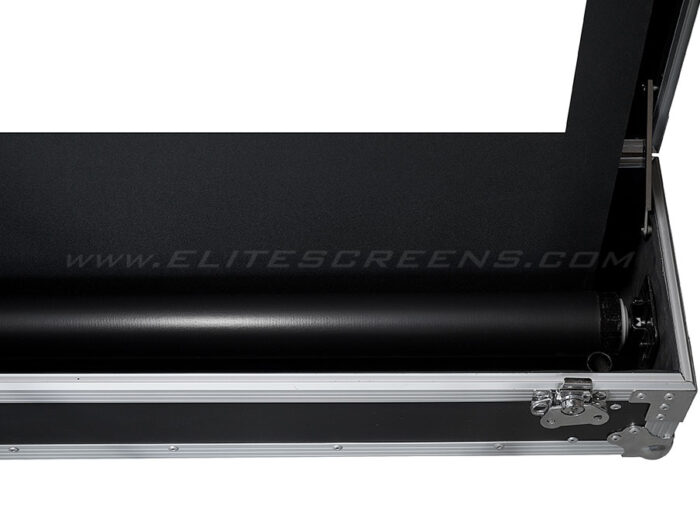

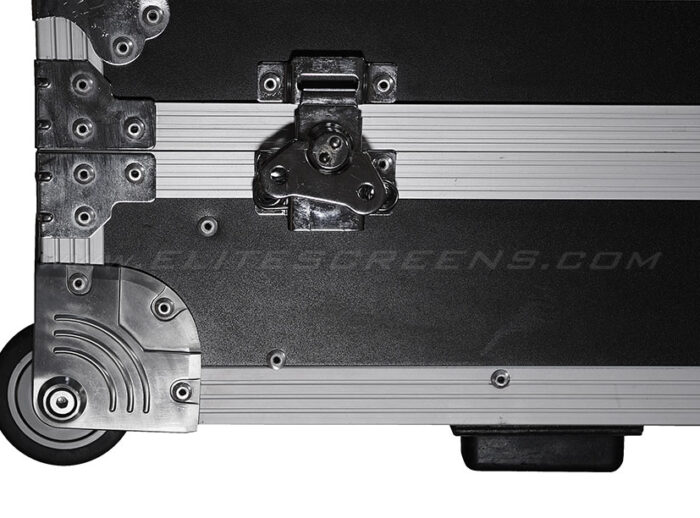

- Screen is encased in a durable aluminum stage case
- Built-in ATA stage case design for professional road crews or casual presentations
- Fast-operating portable presentation screen quickly sets up in seconds
- Free-standing large event screen does not require additional support

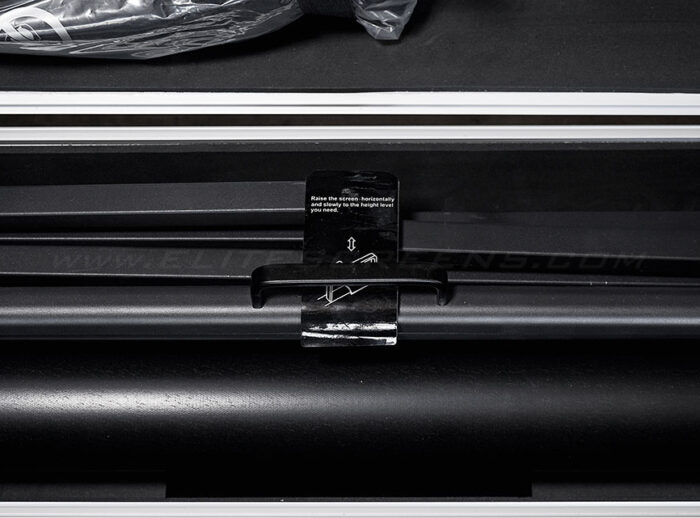

- Wheeled for quick mobility and includes handles

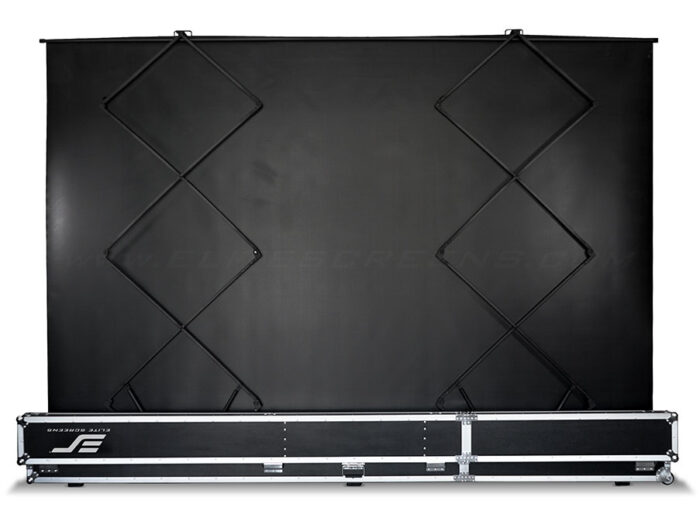

- Dual-scissor support system
- Drape Kit included for enhanced aesthetics
Quality and Reliability
- Indoor Air Quality Certified
- Flame Retardant: Complies with NFPA 701 Standards
- GREENGUARD® and GREENGUAD® Gold Certified UL 2818
- 2-year limited warranty, and 3-year warranty for ENR-G® – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
Dimensions Tables
User Guides
Comparison Tables
Others
| Product Weight | N/A |
|---|---|
| Overall Dims | N/A |
| Aspect Ratio | 4:3 – NTSC, 16:9 – HDTV |
| Viewing Angle | |
| Front/Rear Projection | Front Projection |
| Gain | |
| Screen Material | |
| Compatible Projection | |
| Product Category | Portable Projector Screens |
| Certifications | GREENGUARD Certified, GREENGUARD Gold Certified |
| Size | 150" (16:9), 180" (16:9) |
| Material Type | Matte White |
Matte White Materials FAQ's
Elite’s MaxWhite® FG and Spectra White FG are very comparable as they both are self-supporting matte white front projection screen surfaces with fiberglass backing. Having a fiberglass backing is beneficial as the embedded fiber glass improves rigidity which results in a more stiff material. Thus, the fiberglass backing provides the flattest possible surface a non-tensioned screen can offer. Additionally, the fiber glass backing eliminates any side curling non-tensioned materials are susceptible to, especially under cold temperatures. Both the MaxWhite® FG and SpectraWhite FG will provide an excellent quality image in light controlled environments. The main difference between the materials is that the MaxWhite® FG utilizes a more neutral white material for better white levels. Both the Spectra White FG and MaxWhite® FG have viewing angles of 180° (90° left and right). The wide diffusion uniformity on both the materials maintain luminance levels throughout the entire surface. The MaxWhite® FG is also offered on many more of or products, whereas the SpectraWhite FG is solely available on the Starling and Starling Tension. The Spectra White FG material is also slightly thicker than the MaxWhite® FG.
Elite Screens’ MaxWhite® and MaxWhite® FG are excellent screen materials for front projection presentations. The materials have a multi-layer weave and textured surface coating that offer perfect diffusion uniformity, color reproduction, and black and white contrast. Both have a 1.1 gain that allows for 180° viewing angles (90° left and right) and are black-backed which avoids light penetration. They are also easy to clean, mildew resistant, and GreenGuard® Gold UL 2818 certified. The key difference between the MaxWhite® and MaxWhite® FG is that the MaxWhite® FG has a fiber glass backing. This is beneficial as the embedded fiber glass improves rigidity which results in a more stiff material. Thus, the MaxWhite® FG provides the flattest possible surface a non-tensioned screen can offer. Additionally, the fiber glass backing eliminates any side curling non-tensioned materials are susceptible to, especially under cold temperatures. Lastly, the MaxWhite® FG is also flame retardant and complies with NFPA 701 Standards.
Tension material provides a flatter screen surface and for better uniformity and even light distribution without waving or curving on the projection surface. These problems could be caused by temperature variations in multiple layer materials. Newer non-tensioned materials such as our MaxWhite® or MaxWhite® FG have greatly reduced occurrences of this flaw to the point of arguably matching its flatness in some cases. Some prefer non-tensioned due to aesthetics but tension still generally has superior flatness.
The viewing angle of the MaxWhite® material is 180°.
QuickStand 5-Second Series FAQ’s
No, the QuickStand 5-Second series does not require tools to set up or take down.
A: Yes, the QuickStand 5-Second series does include wheels and handles on each each.
Yes, the replacement wheel should be 7.5 cm in diameter and 2.5 cm wide. It can be removed using a 5mm hex key.

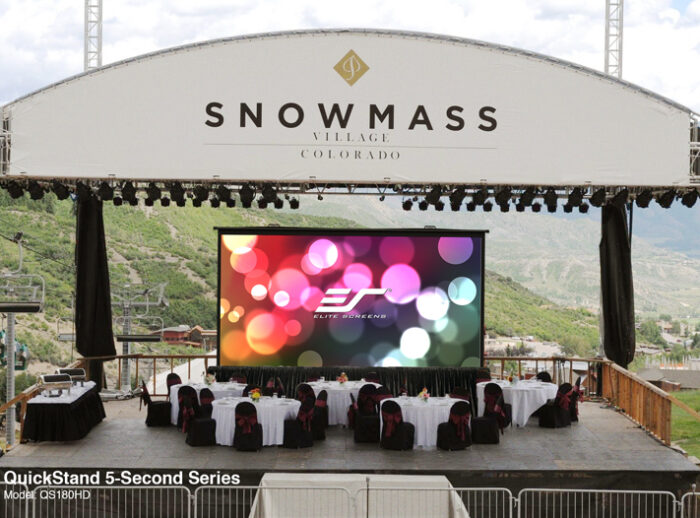

Lifestyle Gallery
Undoctored image of actual projector presentation
