StarBright® CLR® 16
The StarBright® CLR® 16 (SBCLR® 16) is an optical-grade PET front projection screen material with ceiling ambient light rejecting technology for standard (long) throw projectors. The internal micro-structure relies on a UV-resin to filter and absorb up to 90% of overhead light. The high-gain combined with CLR/ALR technology allows projection images to present vivid, colorful, bright pictures that result in contrast-rich presentations.
The composite material eliminates the washout effect, and its black diffusion layer provides high-contrast performance to enhance color saturation and black dynamic range.
- Description
- Additional information
- Description
- Specifications
- Projector Placement for StarBright CLR® 16
- Downloads
- Helpful Videos
- FAQs
- StarBright® CLR® 16 (SBCLR® 16) angular-reflective front projection material for standard throw ceiling mounted projectors
- Ceiling Light Rejecting technology absorbs up to 90% of overhead lighting.
- 1.65 Gain increases projector brightness to produce vibrant colors and high contrast mages.
- Patented multi-layer optical microstructure
- Smooth non-textured surface compatible with 4K/8K Ultra HD projectors.
- Compatible with Standard “Long” throw Projectors ONLY
| Gain | |
|---|---|
| Screen Material | |
| Front/Rear Projection | Front Projection |
| Viewing Angle | |
| Product Category | Accessories > Screen Materials |
| Compatible Projection | |
| Material Type | Ambient Ceiling Light Rejecting (ALR/CLR®) |
| Reflective Technology Type | Angular-Reflective |
- StarBright® CLR® 16 (SBCLR® 16) angular-reflective front projection material for standard throw ceiling mounted projectors
- Ceiling Light Rejecting technology absorbs up to 90% of overhead lighting.
- 1.65 Gain increases projector brightness to produce vibrant colors and high contrast mages.
- Patented multi-layer optical microstructure
- Smooth non-textured surface compatible with 4K/8K Ultra HD projectors.
- Compatible with Standard “Long” throw Projectors ONLY
- Color: Silver Gray
- Thickness: 0.010″ (0.27 mm)
- Weight: 0.37 lb. (360 g/m2)
- On-Axis Peak Gain: 1.65
- Horizontal Viewing angle: 80° (Half 40°)
- Vertical Viewing Angle: 34° (Half 17°)
- Projection Method / Type: Front – Standard Throw Ceiling or Tabletop Mounted
- Ambient Light Rejection: 90%
- Minimum Lens-Throw-Ratio: > 1.35:1
- Edge Blending: No
- Operating Temperature: 68°- 104° F (20°- 40° C)
| Gain | |
|---|---|
| Screen Material | |
| Front/Rear Projection | Front Projection |
| Viewing Angle | |
| Product Category | Accessories > Screen Materials |
| Compatible Projection | |
| Material Type | Ambient Ceiling Light Rejecting (ALR/CLR®) |
| Reflective Technology Type | Angular-Reflective |

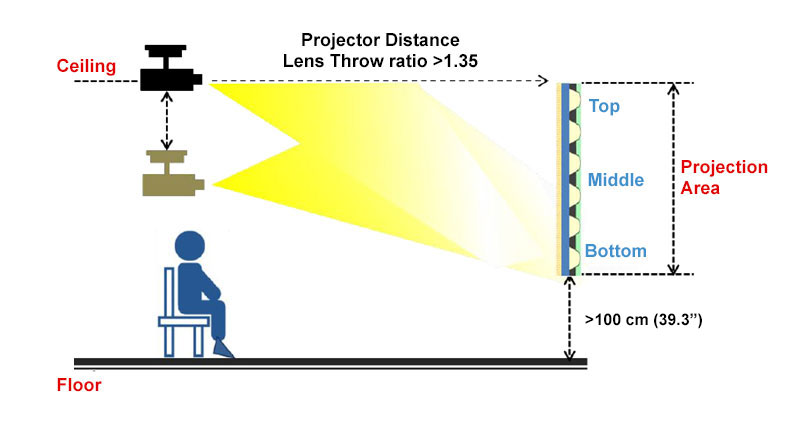

Please use the following installation instructions to obtain superior optical performance from the StarBright CLR® 16 (Ceiling/Ambient Light Rejecting) screen.
Make sure to follow these instructions for the StarBright CLR® 16 to perform correctly.
- Ambient light must not come from the same direction as the projector’s light
- For best results, standard throw projector must have a lens throw ratio of 1.35 or greater
- Not compatible with Ultra-Short and Short-throw projectors
- DO NOT install the projector higher or lower than the screen
Tip: Installing the projector in a 90-degree angle in the middle projection area will provide the best light dispersion for brightness uniformity.
Please use the following installation instructions to obtain superior optical performance from the StarBright CLR® 16 (Ceiling/Ambient Light Rejecting) screen.
Make sure to follow these instructions for the StarBright CLR® 16 to perform correctly.
1. Ambient light must not come from the same direction as the projector’s light
2. For best results, standard throw projector must have a lens throw ratio of 1.35 or greater
3. Not compatible with Ultra-Short and Short-throw projectors
4. DO NOT install the projector higher or lower than the screen
Tip: Installing the projector in a 90-degree angle in the middle projection area will provide the best light dispersion for brightness uniformity.
