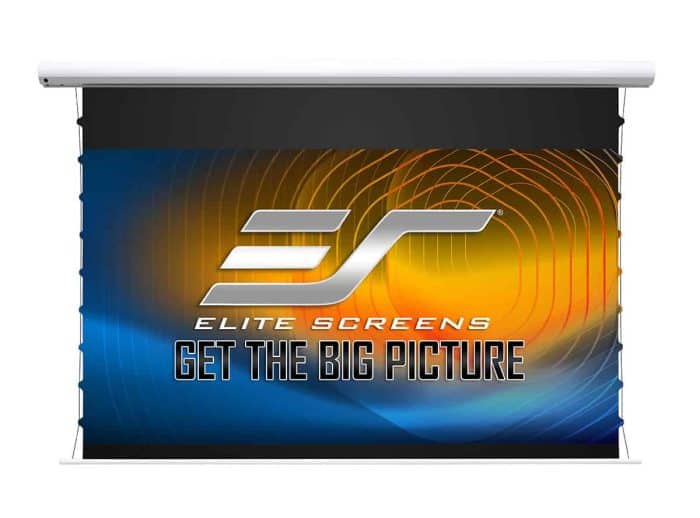

CLR® electric retractable projection screen
Starling Tab-Tension CLR® 5 Series

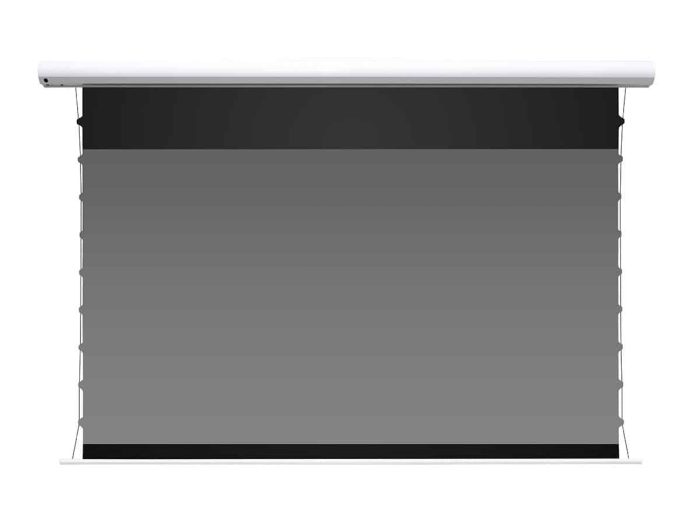

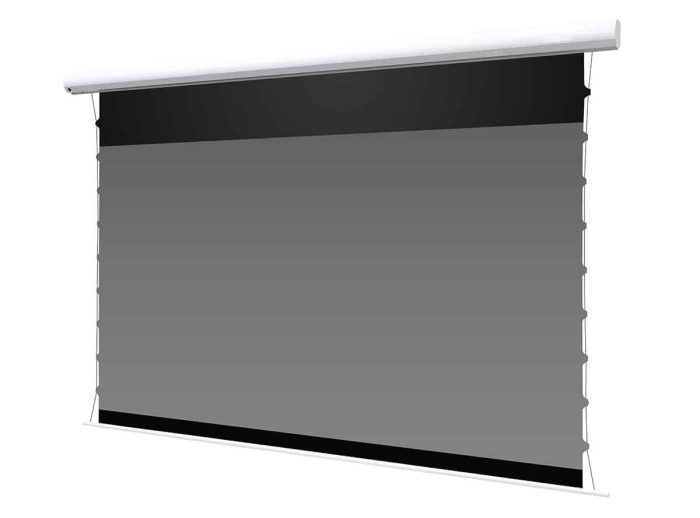

The Starling Tab-Tension CLR® 5 features an ultra-short throw front projection Ceiling Light Rejecting® (CLR®) surface in a sleek motorized modern design. Its tab-tension system ensures a flat and taut projection surface that produces exceptional, ripple-free images. The StarBright™ CLR® 5 (SBCLR™ 5) absorbs overhead light to prevent the washout out effect commonly experienced with conventional matte white materials.
It includes a pair of wall brackets for a flush wall/ceiling installation along with a pair of eye-bolt screws that attach to the top of the case for a suspended ceiling installation.

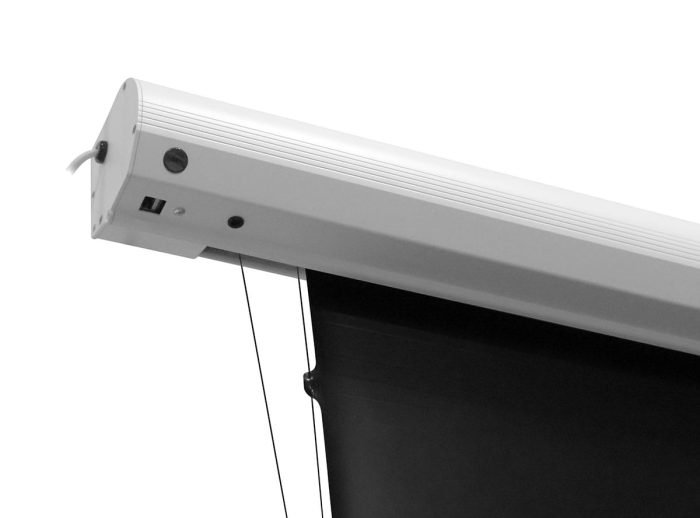

The SWIFT-RC1™ control system includes wired/wireless 12-volt trigger capability, IR/RF remote controls, and a detachable wall box controller switch for up/down/stop operation.
Screen Material
- StarBright™ CLR® 5 (SBCLR™ 5) Ceiling Light Rejecting front projection material absorbs 80% of overhead light
- Formulated for use with Ultra-short Throw (UST) tabletop/bottom mounted projectors (NOT compatible with short or standard throw projectors)
- Lenticular sawtooth micro-structure filters out ambient light for superior image brightness and contrast
- Reflective and absorbent layers optimize projector performance in moderate ambient light room environments
- Wide diffusion uniformity allows viewers to see a clear bright uniform picture from any angle
- Improves black levels in bright and dark room environments
- Reflective layer eliminates light scatter and concentrates projected light back into viewer’s field of vision
- Black backing prevents picture degradation while enhancing image brightness for sharper presentations
- Available in the following range of diagonal sizes: 126″ in 16:9 aspect ratio
Design and Installation
- Flush wall/ceiling mounts permit wood stud installation and allow screen to slide horizontally for proper centering

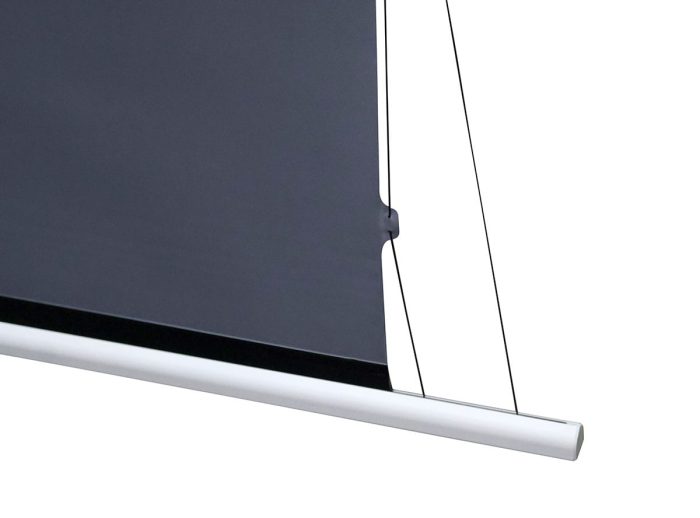

- Tab-tension design helps maintain a flat, taut, and ripple-free projection surface
- Project from a short distance without shadowing the picture

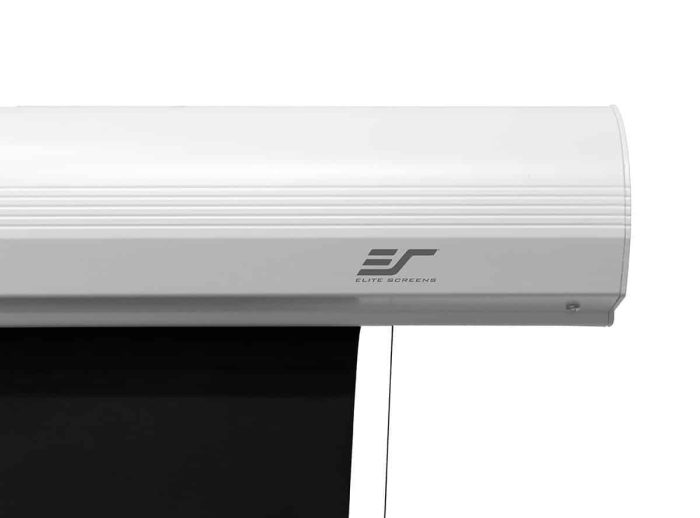

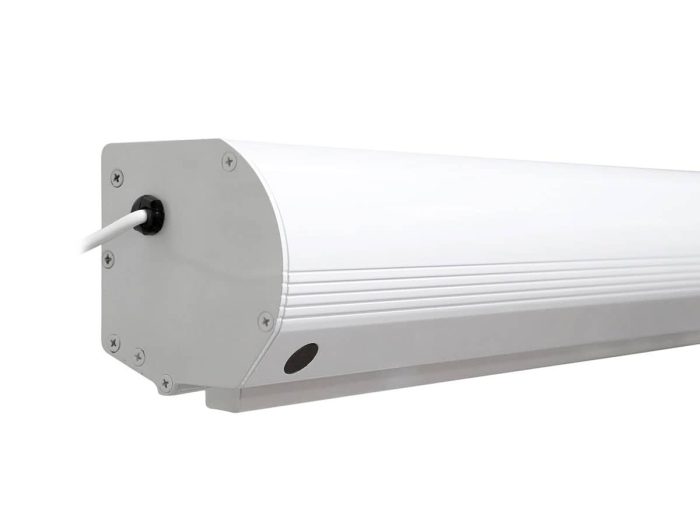

- Curved aluminum white case is moisture resistant
- Plug & Play design with built-in low voltage control system, no hardwire installation required
Control System: SWIFT-RC1™
- Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
- User-friendly programmable vertical drop position for easy installation
- Wall box controller is detachable for a clean look while maintaining RF & IR functionality
- Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
- 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
- Wired 12v trigger capability via wall box controller
- Wireless 12v trigger capability via Radio Frequency remote control
Quality and Reliability
- Standard 2-year premium warranty
- 3-year ENR-G warranty for Education, Non-profit, Religious, and Government organizations
Dimensions Table
User Guides
- User Guide (PDF)
Others
2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
