Upscale portable tripod projection screen

Tripod Pro Series

GREENGUARD Certified

The Tripod Pro features a new casing with the velour surfacing that adds a touch of elegance for more upscale small or large venue presentations. Its black tube casing will protect the screen material and is coated in a velveteen material that absorbs glare from projectors. It is available in a (1:1) aspect ratio with viewing size of 119” diagonal measurements. The screen material is Elite Screens MaxWhite® 1.1 gain matte white front projection material with black masking borders. They vary in weight from 15 lbs. to 35 lbs. making the tripod a highly portable and versatile product. Lastly, each tripod has a keystone eliminator to accommodate angle distortion or “keystone effect” during forum presentations.

Tripod Pro Series Portable Projection Screen

Screen Material

  • MaxWhite® 1.1 Gain screen material
  • 180 degree wide viewing angle for multi-purpose applications
  • Active 3D, 4K Ultra HD, and HDR ready
  • Not compatible with Ultra/Short-throw Projectors
  • Durable for every day applications and easy to clean
  • Complimentary 4-side black masking borders
  • Available in the following diagonal sizes:
    • 119″ in 1:1 format

Design and Operation

  • Ideal for ProAV / Rental & Staging applications

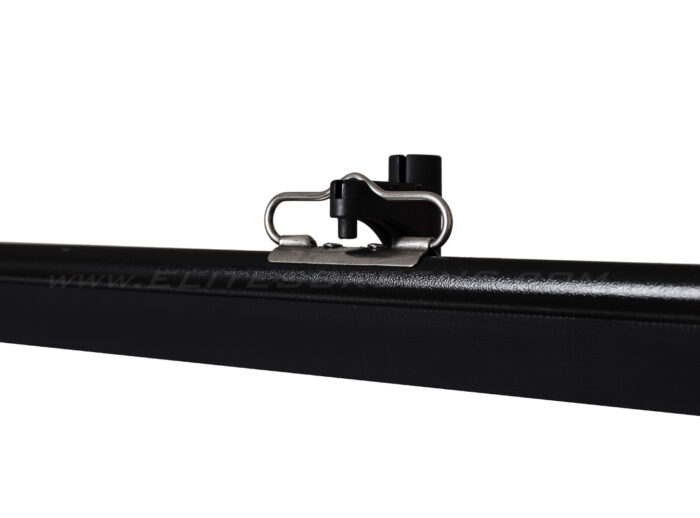

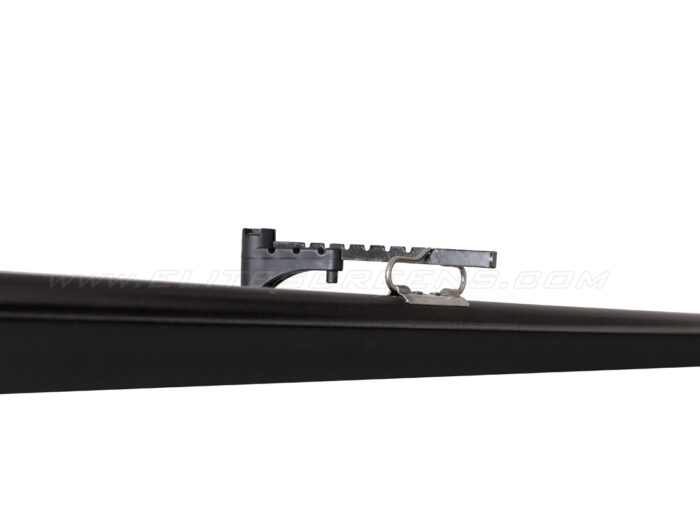

  • Standard built-in keystone eliminator

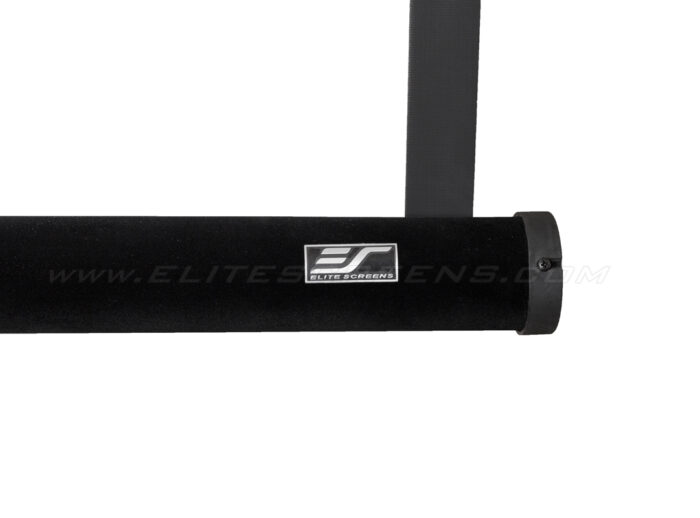

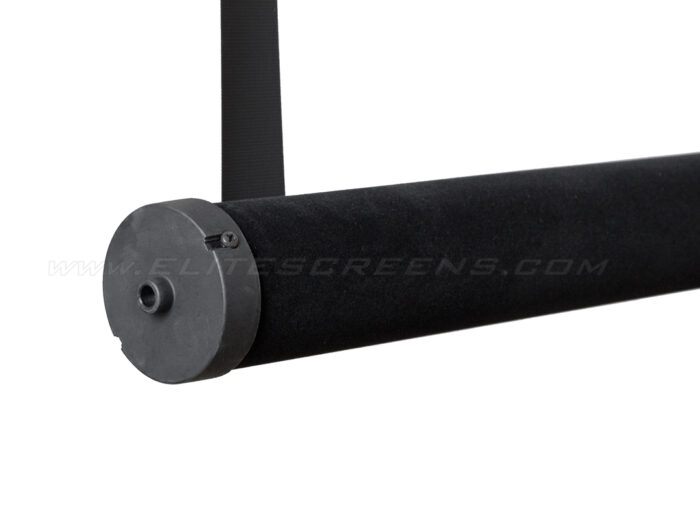

  • Heavy-duty case with velvet velour withstands daily usage

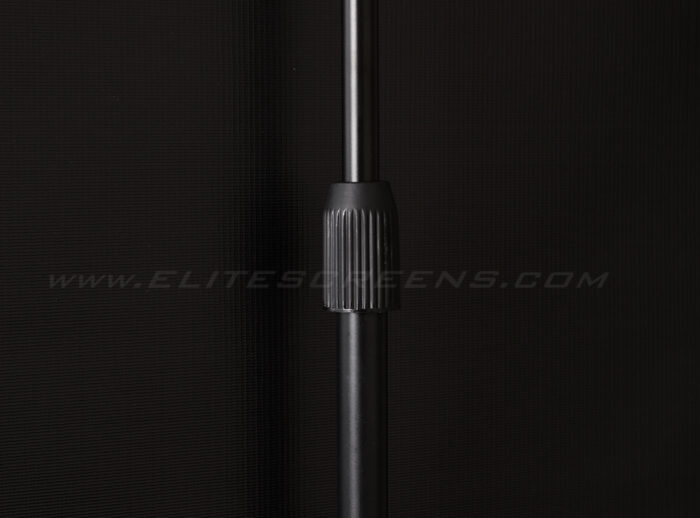

  • Auto-locking mechanism controls height adjustment

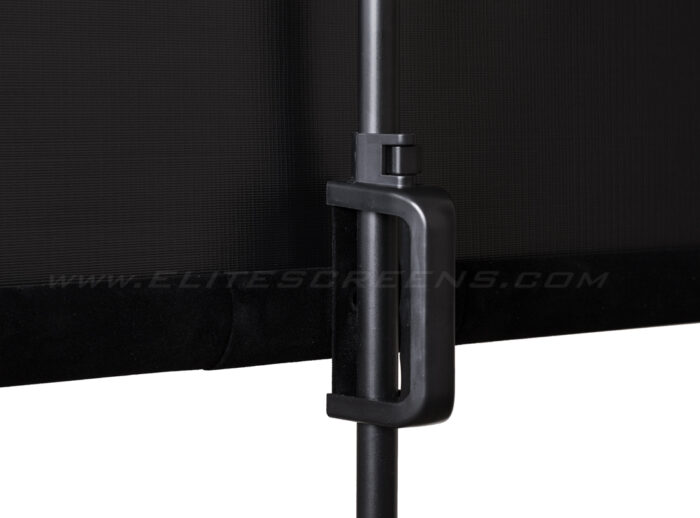

  • Built-in carrying handle for easy transportation
  • Rugged construction withstands the rigors of daily usage

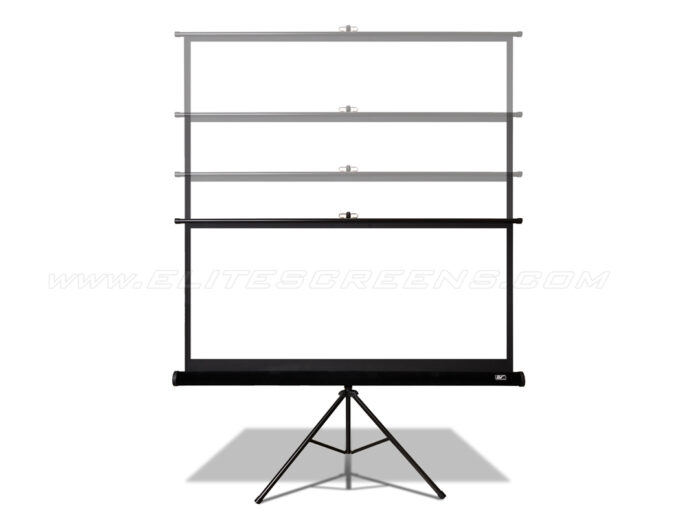

  • Simple screen adjustment for various height settings

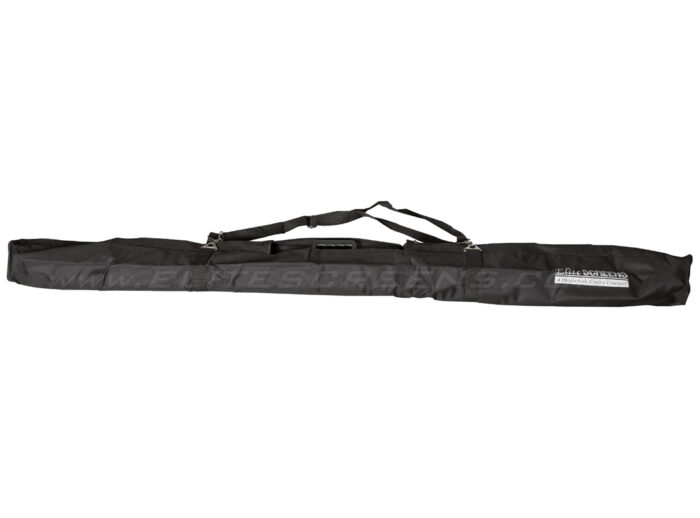

  • Standard carrying bag is included for extra protection

Quality and Reliability

  • GREENGUARD® and GREENGUARD® Gold Certified
  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

Matte White Materials FAQ's

Q: What is the difference between Elite’s MaxWhite® Fiberglass (FG) and SpectraWhite Fiberglass (FG)? Why is fiberglass backing important?
Q: What is the difference between Elite’s MaxWhite® Fiberglass (FG) and SpectraWhite Fiberglass (FG)? Why is fiberglass backing important?

Elite’s MaxWhite® FG and Spectra White FG are very comparable as they both are self-supporting matte white front projection screen surfaces with fiberglass backing. Having a fiberglass backing is beneficial as the embedded fiber glass improves rigidity which results in a more stiff material. Thus, the fiberglass backing provides the flattest possible surface a non-tensioned screen can offer. Additionally, the fiber glass backing eliminates any side curling non-tensioned materials are susceptible to, especially under cold temperatures. Both the MaxWhite® FG and SpectraWhite FG will provide an excellent quality image in light controlled environments. The main difference between the materials is that the MaxWhite® FG utilizes a more neutral white material for better white levels. Both the Spectra White FG and MaxWhite® FG have viewing angles of 180° (90° left and right). The wide diffusion uniformity on both the materials maintain luminance levels throughout the entire surface. The MaxWhite® FG is also offered on many more of or products, whereas the SpectraWhite FG is solely available on the Starling and Starling Tension. The Spectra White FG material is also slightly thicker than the MaxWhite® FG.

Q: What is the difference between Elite’s MaxWhite®, MaxWhite® B and MaxWhite® FG screen materials?
Q: What is the difference between Elite’s MaxWhite®, MaxWhite® B and MaxWhite® FG screen materials?

Elite Screens’ MaxWhite® and MaxWhite® FG are excellent screen materials for front projection presentations. The materials have a multi-layer weave and textured surface coating that offer perfect diffusion uniformity, color reproduction, and black and white contrast. Both have a 1.1 gain that allows for 180° viewing angles (90° left and right) and are black-backed which avoids light penetration. They are also easy to clean, mildew resistant, and GreenGuard® Gold UL 2818 certified. MaxWhite® B on the other hand, while maintaining the wide 180 degree viewing angle, has a unity 1.0 Gain that reflects 100% projector light as opposed to 1.1 Gain (110%). It is also formulated to be utilized in our most commonly used front projection screens. This allows more flexibility in our offerings of cost-effective products for mass production. The key difference between the MaxWhite®/MaxWhite® B and MaxWhite® FG is that the MaxWhite® FG has a fiber glass backing. This is beneficial as the embedded fiber glass improves rigidity which results in a more stiff material. Thus, the MaxWhite® FG provides the flattest possible surface a non-tensioned screen can offer. Additionally, the fiber glass backing eliminates any side curling non-tensioned materials are susceptible to, especially under cold temperatures. Lastly, the MaxWhite® FG is also flame retardant and complies with NFPA 701 Standards.

Q: What is the difference between Tensioned and Non-Tensioned Screen Material?
Q: What is the difference between Tensioned and Non-Tensioned Screen Material?

Tension material provides a flatter screen surface and for better uniformity and even light distribution without waving or curving on the projection surface. These problems could be caused by temperature variations in multiple layer materials. Newer non-tensioned materials such as our MaxWhite® or MaxWhite® FG have greatly reduced occurrences of this flaw to the point of arguably matching its flatness in some cases. Some prefer non-tensioned due to aesthetics but tension still generally has superior flatness.

Q: What is the viewing angle on the MaxWhite® material?
Q. What is the viewing angle on the MaxWhite® material?

The viewing angle of the MaxWhite® material is 180°.

Tripod/B/Pro Series

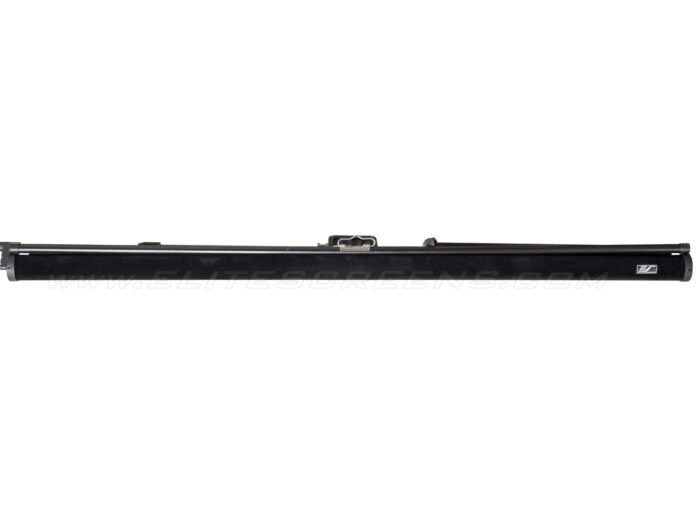

Q : How do I collapse/put away my Tripod screen to fit in the carrying bag?
How do I collapse/put away my Tripod screen to fit in the carrying bag?

A:  Follow the steps below:
1. Pull adjustment tabs to unlock
2. Push and slide legs in to shorten position
3. Push extension bar down and hook pin to end cap
4. Finally lock both adjustment tabs to fit in the carrying bag

to fit in the carrying bag

Q: What is the difference between the Tripod and Tripod Pro Series?
Q: What is the difference between the Tripod and Tripod Pro Series?

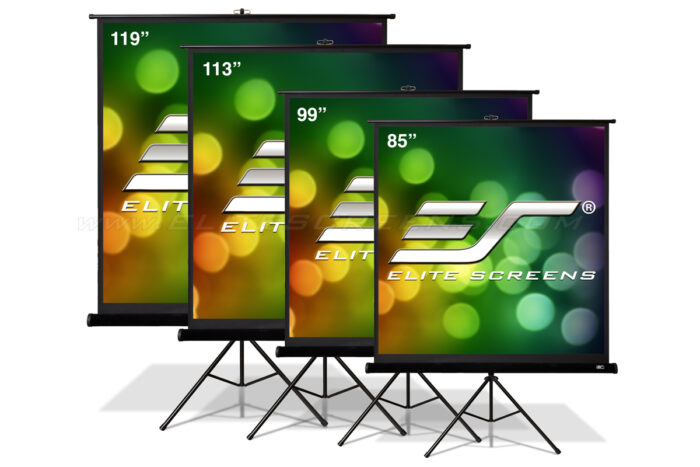

The Tripod Pro series was designed for ProAV & Staging applications. Both the Tripod and Tripod Pro have a steel casing but the Pro Series has a velvet finish giving it a more professional appearance. The Pro Series comes in the 1:1 aspect ratio and is available in diagonal sizes 85″, 99″, 113″, and 119″ . The Tripod is available in 1:1, 4:3, and 16:9 aspect ratios and diagonal sizes from 50″-136″.

Q: Is the screen on the Tripod / Tripod B /Tripod Pro detachable?
Q: Is the screen on the Tripod / Tripod B /Tripod Pro detachable?

No, the tripod is not detachable from the screen’s case.

Q: Does the Tripod/ Tripod B series screen come standard with a carrying bag?
Q: Does the Tripod/ Tripod B series screen come standard with a carrying bag?

No, but Elite does sell an optional carrying bag for all tripod models. You can buy one from your preferred reseller or at www.shop.elitescreens.com.
