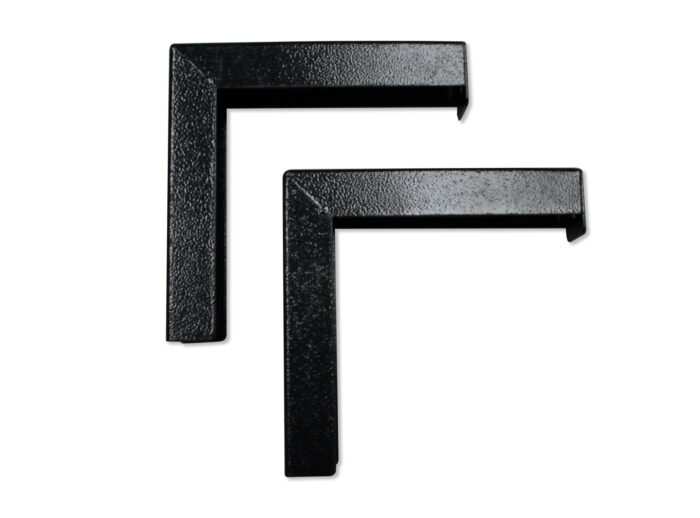

Mounting Brackets
VMAX Dual® Series Remote Control

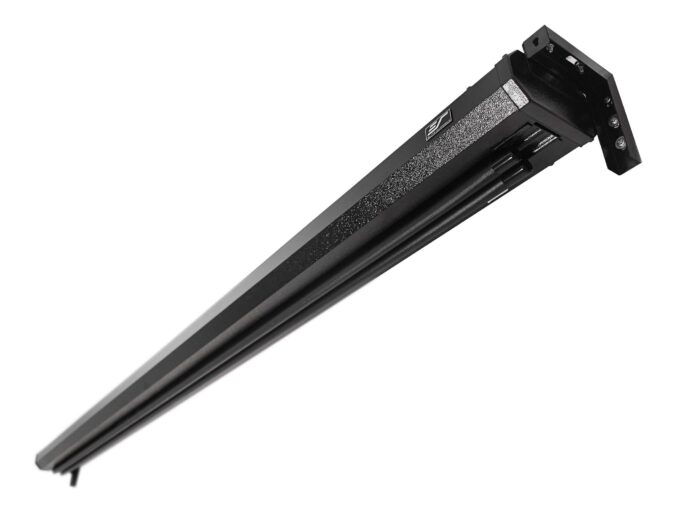

Bottom of Case
Bottom of Case

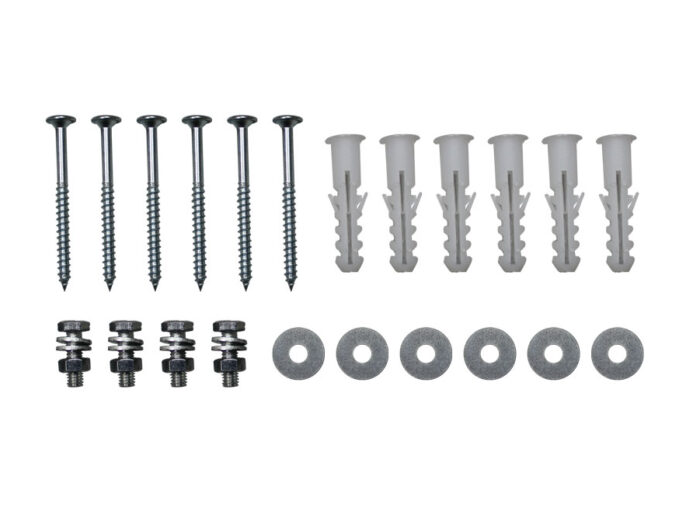

Hardware Kit
Bottom Right Corner of Screen Material

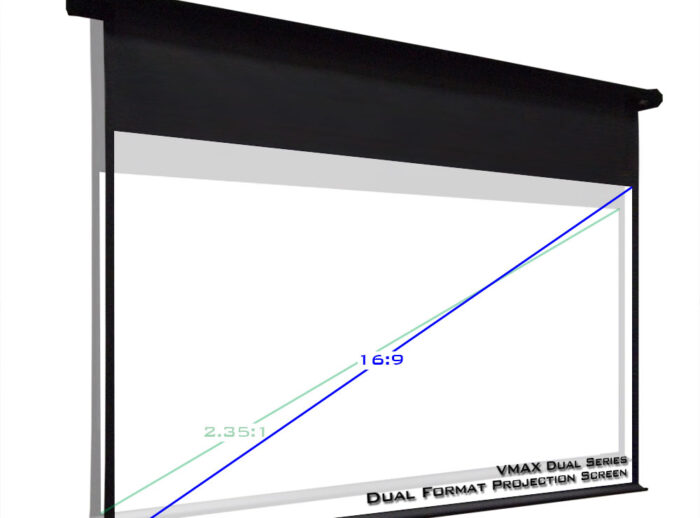

Aspect Ratio Comparisons

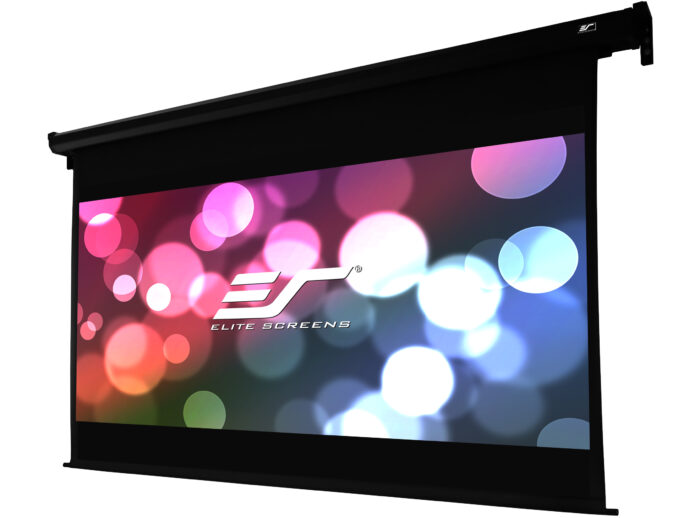

VMAX Dual® Series 2.35:1 Aspect Ratio

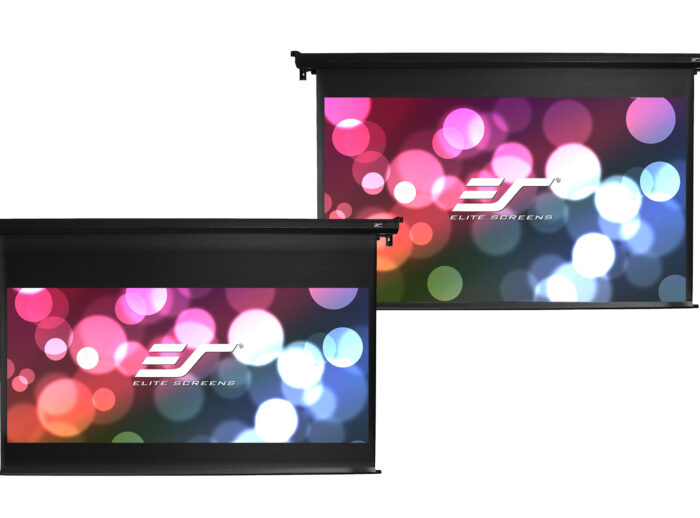

VMAX Dual® Series 16:9 & 2.35:1 Aspect Ratio
Remote Control

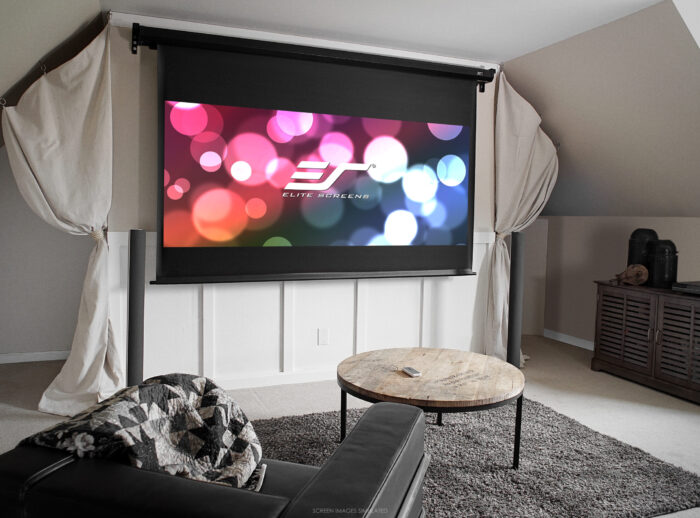

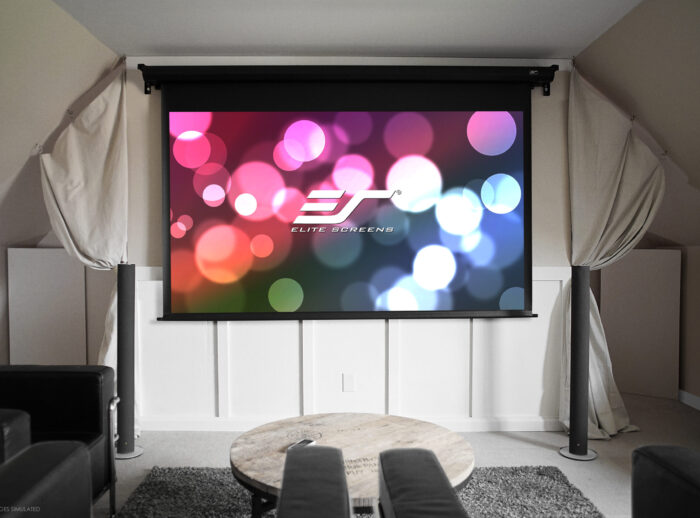

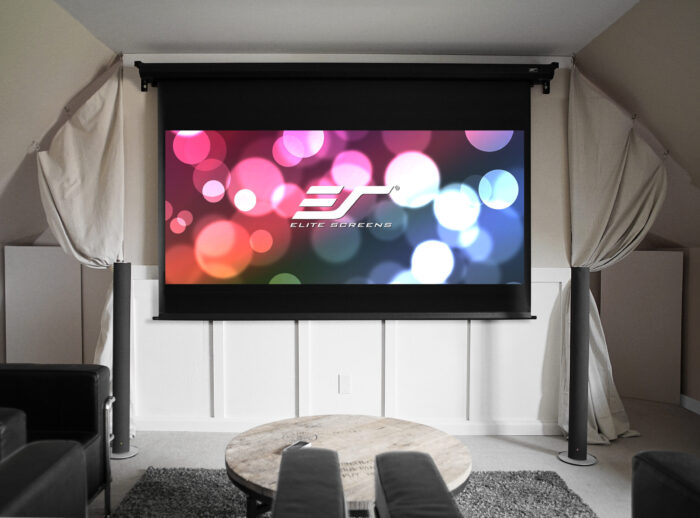

VMAX Dual® Series Lifestyle Image
VMAX Dual® Series Lifestyle Image
VMAX Dual® Series Lifestyle Image
Newer or Similar Product

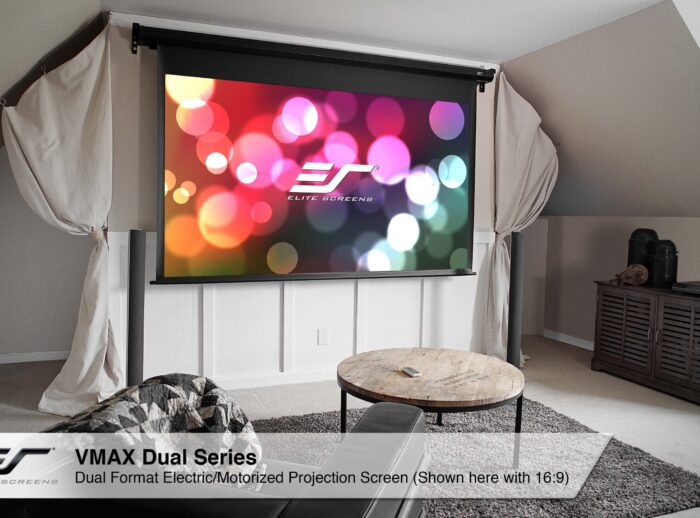

The VMAX Dual® Series is an electric projection screen with alternating 16:9/2.35:1 aspect ratio options. The product comes fully equipped with mounting brackets in addition to an RF and 12V trigger control kit.
The VMAX Dual® offers a professional grade surface to match the abilities of anamorphic projectors. Anamorphic is the ability for a projector to switch from one aspect ratio (screen shape) to another in accordance with the type of presentation being shown. The VMAX Dual® utilizes a front projection material and is compatible with all standard throw Home Cinema projectors. The AcousticPro UHD material is designed to complement in-wall speakers while allowing sound to pass through the material with minimal attenuation.
Available in the following front projection materials
| Material Name | Gain | Viewing Angle | Description |
| AcousticPro UHD | 1.0 | 180° | AcousticPro UHD is an acoustically transparent front projection screen. It is 4K ultra HD ready and moire-free from visual artifacts. Recommended for rooms with controlled lighting. Works with Standard, 1080P/4K projectors. |
Screen Material
- AcousticPro UHD 1.0 Gain front projection surface
- Wide viewing angle with excellent diffusion uniformity
- Not compatible with Ultra/Short-throw Projectors
- 4-sided black masking borders
- Active 3D, 4K Ultra HD, and HDR Ready
- Available in the following diagonal sizes:
- 100″ and 120″ in 16:9 format
- 95″ and 114″ in 2.35:1 format
Design and Installation
- Rectangular housing is durable and moisture resistant
- Wall or Ceiling installation options
- 12mm distance between screen materials negates depth of focus distortion
- Dual motors for each screen panel
- Constant Image Width
Control System
- Radio Frequency (RF) wireless remote control operation with separate 16:9 and 2.35:1 buttons
- Wireless 5-12v trigger enables (16:9 default) drop/rise operation to synchronize with the projector’s power cycle
- Alternating 16:9 (HDTV) and 2.35:1 (Cinemascope) projection materials
Quality and Reliability
- Synchronous motors allow a silent operation with extended operational longevity
- Low power consumption
- GREENGUARD® and GREENGUARD® Gold Certified | UL2818
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
