AcousticPro 1080P3
The AcousticPro 1080P3 is an acoustically transparent perforated weave fabric front projection material. The angular weave eliminates the moire effect while presenting warm neutral colors for today’s high definition 1080P (1920×1080) and 4K UHD projectors. The AcousticPro1080P3 allows speaker placement behind while allowing an exceptional acoustically transparent performance.
- Acoustically Transparent Matte White (perforated weave)

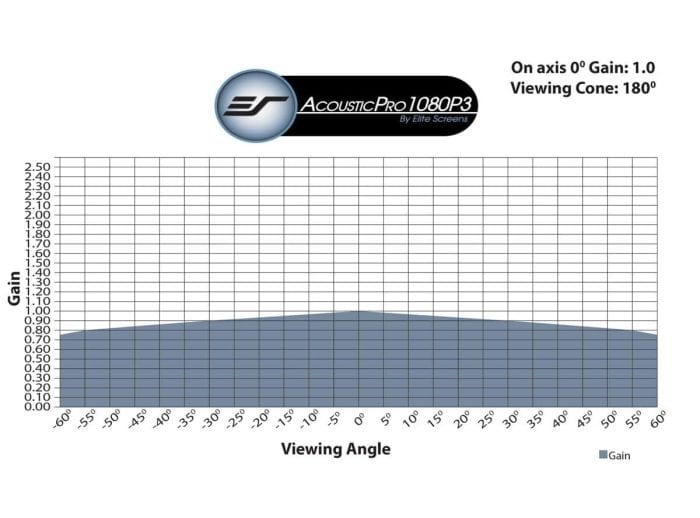

- Gain: 1.0
- Superb off-axis luminance
- Designed for 1080P (1920×1080) projector resolutions
- Detachable black backing eliminates backlighting artifacts from light bleed-through (only available on Sable Frame and ezFrame Series products)
- Mean attenuation of -3.09 dB
- Compatible with today’s 1080P/4K UHD Projectors
Insertion Loss
| Band | Frequency Range | Mean Level of Band (db) | Measured Maximum Variation within Band (db) | Measured Minimum Variation within Band (db) |
| 1 | 500 Hz – 2 kHz | -1.46 | -0.47 | -2.31 |
| 2 | 2 k – 8 kHz | -1.86 | -0.61 | -2.48 |
| 3 | 8 k – 20 kHz | -3.06 | -2.41 | -3.66 |

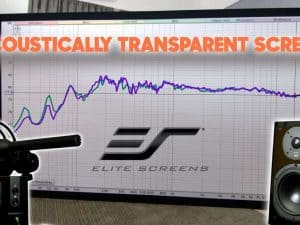

Acoustical Dispersion
| Orientation | Measurement Angle (º) | Measured Relative Response – 100 Hz- 10 kHz
Max Variation (db) / Min Variation (db) |
Measured Relative Response – 10 k- 20 kHz
Max Variation (db) / Min Variation (db) |
| Horizontal | 0; ±15; ±30 | -2.51 / -0.56 | -2.51 / -3.59 |
| Vertical | 0; ±15 | -2.70 / -0.37 | -3.59 / -2.55 |
| Gain | |
|---|---|
| Screen Material | |
| Front/Rear Projection | Front Projection |
| Viewing Angle | |
| Product Category | Accessories > Screen Materials |
| Compatible Projection | |
| Material Type | Acoustic Transparent |
| Material Hole Size | 0.178 mm |
- Acoustically Transparent Matte White (perforated weave)
- Gain: 1.0
- Superb off-axis luminance
- Designed for 1080P (1920×1080) projector resolutions
- Detachable black backing eliminates backlighting artifacts from light bleed-through (only available on Sable Frame and ezFrame Series products)
- Mean attenuation of -3.09 dB
- Compatible with today’s 1080P/4K UHD Projectors
Insertion Loss
| Band | Frequency Range | Mean Level of Band (db) | Measured Maximum Variation within Band (db) | Measured Minimum Variation within Band (db) |
| 1 | 500 Hz – 2 kHz | -1.46 | -0.47 | -2.31 |
| 2 | 2 k – 8 kHz | -1.86 | -0.61 | -2.48 |
| 3 | 8 k – 20 kHz | -3.06 | -2.41 | -3.66 |
Acoustical Dispersion
| Orientation | Measurement Angle (º) | Measured Relative Response – 100 Hz- 10 kHz
Max Variation (db) / Min Variation (db) |
Measured Relative Response – 10 k- 20 kHz
Max Variation (db) / Min Variation (db) |
| Horizontal | 0; ±15; ±30 | -2.51 / -0.56 | -2.51 / -3.59 |
| Vertical | 0; ±15 | -2.70 / -0.37 | -3.59 / -2.55 |
- Acoustically Transparent Matte White (perforated weave)
- Gain: 1.0
Please refer to the images below to the determine the front and rear side.
