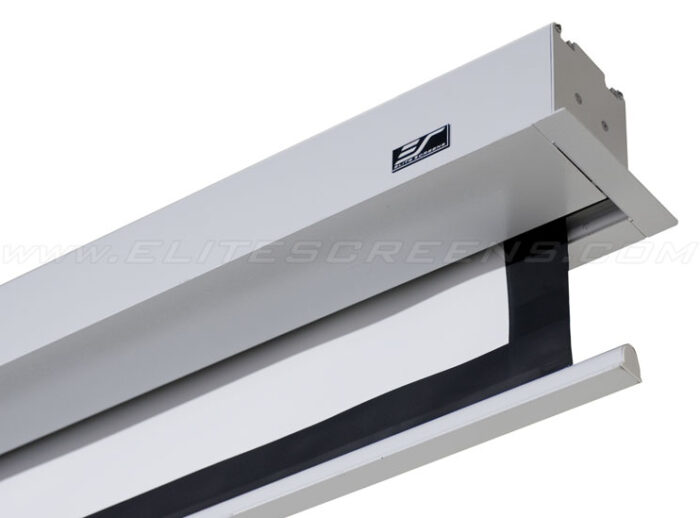

fully contained in-ceiling electric projection screen

Evanesce Series

GREENGUARD Certified

Newer or Similar Product

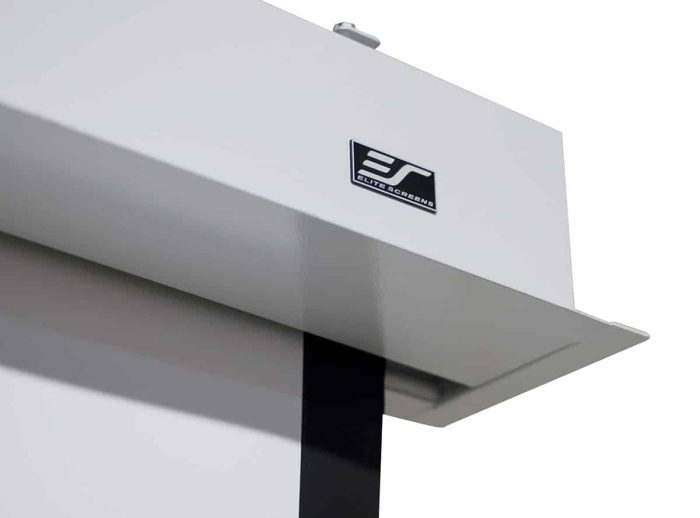

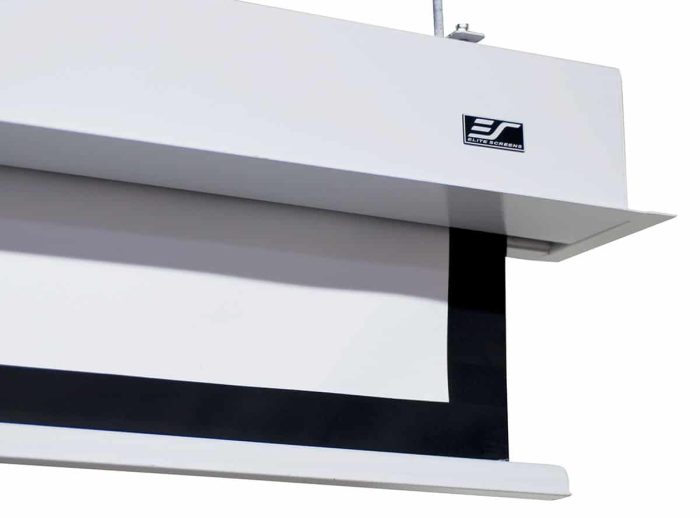

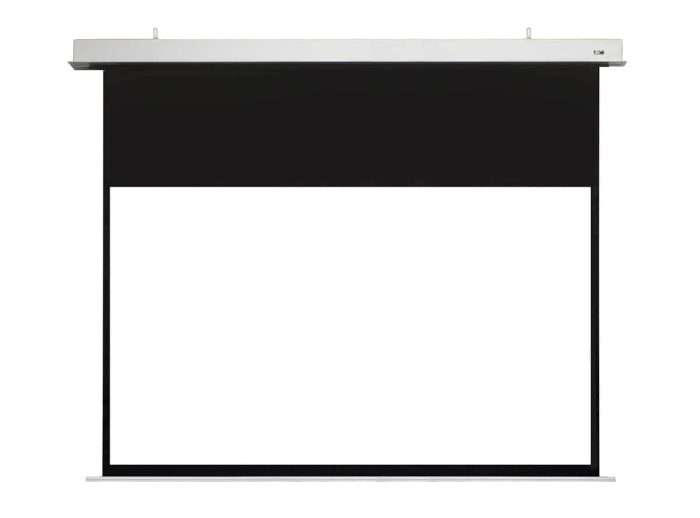

The Evanesce is a fully contained in-ceiling electric projection screen. It is encased in a white-enameled aluminum housing for convenient installation. Control package includes Infrared & Radio Frequency remote controls along with a wall box controller and 12-volt trigger capability.

Where to Buy
Buy Now
Product Weight N/A
Overall Dims N/A

Evanesce & Evanesce Tension Series

Evanesce (B)/Evanesce Tab-Tension (B) – Below Ceiling Installation

How to install the Evanesce in-ceiling projection screen above the ceiling

Evanesce AcousticPro UHD in Family Room

Testimonial Video: Evanesce Series (Laguna Beach CA)

Available in the following front projection materials

Material Name Gain Viewing Angle Description
MaxWhite® Fiberglass (FG) 1.1  180° MaxWhite® Fiberglass (FG) is fiberglass backed for added stiffness which provides the flattest possible non-tensioned screen surface with universal applications. This material provides wide viewing uniform diffusion while giving precise definition, color reproduction and black & white contrast.



Screen Material

  • MaxWhite® Fiberglass (FG) 1.1 Gain black backed matte white screen material
  • 180° wide-viewing angle for commercial and residential presentations
  • Not compatible with Ultra/Short-throw Projectors
  • Black masking borders enhance picture contrast
  • 4K Ultra HD, Active 3D, and HDR Ready
  • Durable and easy to clean surface
  • Available in the following diagonal sizes:
    • 106″, 112″, and 126″ in 16:9 format

Design and Installation

  • Disappearing recessed in-ceiling design for non-dedicated media rooms
  • Below and above ceiling access installation design
  • Integrated ceiling projection screen ships fully assembled, ready to install

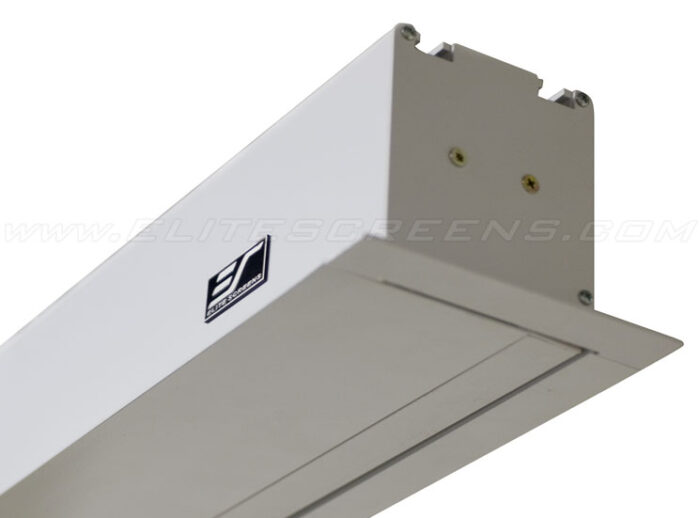

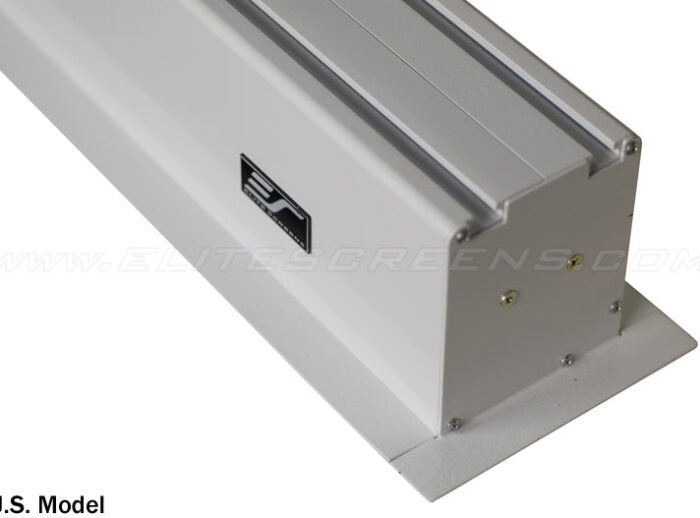

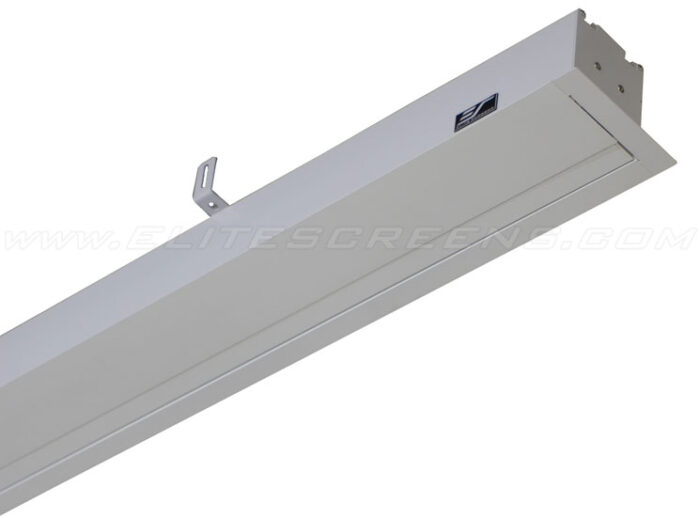

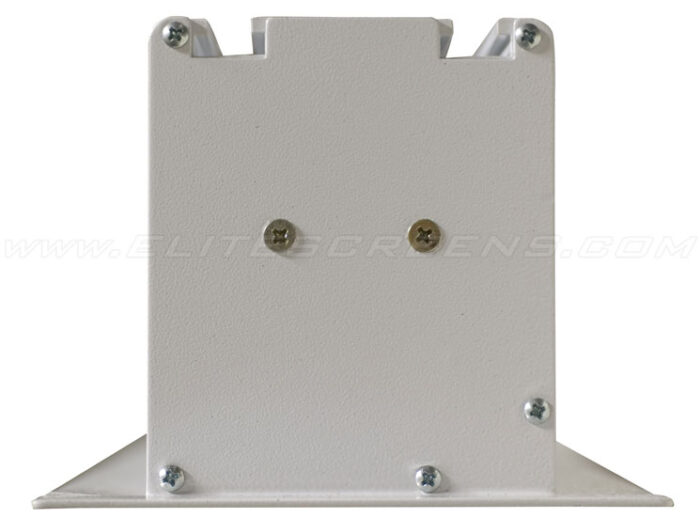

  • Aluminum housing with white finish (RAL9003) is strong and moisture resistant
  • Installation kit included

Control System

  • Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
  • User-friendly programmable vertical drop position for easy installation (SWIFT-RC1 Version Only)
  • Wall box controller is detachable for a clean look while maintaining RF & IR functionality
  • Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference (SWIFT-RC1 Version Only)
  • 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
    • Wired 12v trigger capability via wall box controller (SWIFT-RC1 Version Only)
    • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

  • Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
  • ETL, FCC, CE, CB GOSTCE & ISO9001:2008 Certified
  • Flame Retardant: Complies with NFPA 701 Standards (MaxWhite™ FG & AcousticPro UHD)
  • GREENGUARD® and GREENGUARD® Gold Certified UL | 2818
  • Conforms to UL 2043 – Plenum Rated: Suitable for air-handling spaces
  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

Matte White Materials FAQ's

Q: What is the difference between Elite’s MaxWhite® Fiberglass (FG) and SpectraWhite Fiberglass (FG)? Why is fiberglass backing important?
Q: What is the difference between Elite’s MaxWhite® Fiberglass (FG) and SpectraWhite Fiberglass (FG)? Why is fiberglass backing important?

Elite’s MaxWhite® FG and Spectra White FG are very comparable as they both are self-supporting matte white front projection screen surfaces with fiberglass backing. Having a fiberglass backing is beneficial as the embedded fiber glass improves rigidity which results in a more stiff material. Thus, the fiberglass backing provides the flattest possible surface a non-tensioned screen can offer. Additionally, the fiber glass backing eliminates any side curling non-tensioned materials are susceptible to, especially under cold temperatures. Both the MaxWhite® FG and SpectraWhite FG will provide an excellent quality image in light controlled environments. The main difference between the materials is that the MaxWhite® FG utilizes a more neutral white material for better white levels. Both the Spectra White FG and MaxWhite® FG have viewing angles of 180° (90° left and right). The wide diffusion uniformity on both the materials maintain luminance levels throughout the entire surface. The MaxWhite® FG is also offered on many more of or products, whereas the SpectraWhite FG is solely available on the Starling and Starling Tension. The Spectra White FG material is also slightly thicker than the MaxWhite® FG.

Q: What is the difference between Elite’s MaxWhite® and MaxWhite® FG screen materials?
Q: What is the difference between Elite’s MaxWhite® and MaxWhite® FG screen materials?

Elite Screens’ MaxWhite® and MaxWhite® FG are excellent screen materials for front projection presentations. The materials have a multi-layer weave and textured surface coating that offer perfect diffusion uniformity, color reproduction, and black and white contrast. Both have a 1.1 gain that allows for 180° viewing angles (90° left and right) and are black-backed which avoids light penetration. They are also easy to clean, mildew resistant, and GreenGuard® Gold UL 2818 certified. The key difference between the MaxWhite® and MaxWhite® FG is that the MaxWhite® FG has a fiber glass backing. This is beneficial as the embedded fiber glass improves rigidity which results in a more stiff material. Thus, the MaxWhite® FG provides the flattest possible surface a non-tensioned screen can offer. Additionally, the fiber glass backing eliminates any side curling non-tensioned materials are susceptible to, especially under cold temperatures. Lastly, the MaxWhite® FG is also flame retardant and complies with NFPA 701 Standards.

Q: What is the difference between Tensioned and Non-Tensioned Screen Material?
Q: What is the difference between Tensioned and Non-Tensioned Screen Material?

Tension material provides a flatter screen surface and for better uniformity and even light distribution without waving or curving on the projection surface. These problems could be caused by temperature variations in multiple layer materials. Newer non-tensioned materials such as our MaxWhite® or MaxWhite® FG have greatly reduced occurrences of this flaw to the point of arguably matching its flatness in some cases. Some prefer non-tensioned due to aesthetics but tension still generally has superior flatness.

Q: What is the viewing angle on the MaxWhite® material?
Q. What is the viewing angle on the MaxWhite® material?

The viewing angle of the MaxWhite® material is 180°.

Recessed/In-Ceiling Electric Screens FAQ’s

Q : What is the difference between the Evanesce (tension) B and Evanesce(tension) Series?
What is the difference between the Evanesce (tension) B and Evanesce(tension) Series?

The Evanesce B and Evanesce Tension B Series’ differ from the regular series in that the B Series were mainly designed for home theater applications. With that in mind, we focused on the most popular aspect ratios and diagonal sizes used in a home theater setting. We also reduced the size of the housing and motor. By focusing on fewer models and by reducing the amount of materials used for the housing unit, we were able to cut down on production costs which we in turn passed along to the consumer. The Evanesce and Evanesce Tension were designed more for commercial applications such as conference rooms and auditoriums. Nevertheless, the screens can also be installed in dedicated home theaters. The Evanesce and Evanesce Tension feature a wider array of aspect ratios and sizes, have a faster motor, and utilize a more robust housing unit. All series come with a complete remote kit and have hardware accessories that allow for either a below or above ceiling installation (excluding Evanesce Plus).

Q : Do any of the trim pieces from the Evanesce B Series screen come off to allow installation if there is no access above the screen?
Do any of the trim pieces from the Evanesce B Series screen come off to allow installation if there is no access above the screen?

Yes, the Evanesce B allows for both above and below ceiling installations.

Q : Do any of the trim pieces from the Evanesce Series screen come off to allow installation if there is no access above the screen?
Do any of the trim pieces from the Evanesce Series screen come off to allow installation if there is no access above the screen?

Yes, our  European Style Evanesce Series screen will accommodate your installation. Please click HERE to view the user guide for installation instructions.

Q: Will I void my warranty if I cut the power cord on my Evanesce screen to hardwire it?
Will I void my warranty if I cut the power cord on my Evanesce screen to hardwire it?

No, you will not void your warranty, but cutting the cord is not necessary. Please see our hardwired connection (direct control) instructions here.

Q: Can the Elite Screens Evanesce in-ceiling screens be installed a drop ceiling with t-bar ceiling tiles?
Q: Can the Elite Screens Evanesce in-ceiling screens be installed a drop ceiling with t-bar ceiling tiles?

All of our Evanesce Series in-ceiling screens (Evanesce, Evanesce B, Evanesce Tab-Tension, Evanesce Tab-Tension B, and Evanesce Plus) include installation hardware kits for ABOVE and BELOW.  The kit includes four long vertical brackets to allow the screen to be suspended from any above structure.

Q: Where Can I find the IR codes for my Electric Screen IR remote?
Q: Where Can I find the IR codes for my Electric Screen IR remote?

Elite provides binary codes for the IR remote, see below.

SeriesUpStopDown
CineTension 2 Series1111 0000 00011111 0000 00101111 0000 0100
Evanesce / Evanesce Tab-Tension B1111 0000 00011111 0000 00101111 0000 0100
Home2 Series1111 0000 00011111 0000 00101111 0000 0100
Spectrum Series1111 0000 00011111 0000 00101111 0000 0100
Spectrum Tab-Tension Series1111 0000 00011111 0000 00101111 0000 0100
Spectrum Tab-Tension 2 Series1111 0000 00011111 0000 00101111 0000 0100
Starling 2 / Starling Tab-Tension 2 Series1101 0000 10001101 0001 00001101 0010 0000
VMAX2 Series1111 0000 00011111 0000 00101111 0000 0100
VMAX Tab-Tension Dual Series1111 0000 00011111 0000 00101111 0000 0100
binary codes for the IR remote

Elite’s V2.0 infrared remotes

SeriesUpStopDown
V2.0 infrared remotes1111 0000 0010
0101 1101 1101 1010 1001
1111 0000 0001
0101 1100 1100 0111 1000
1111 0000 0100
0101 1110 1110 1100 1001
V2.0 infrared remotes0011 00000101 00000110 0000
ZZ Type0011 00000101 00000110 0000
Elite’s V2.0 infrared remotes
Q: What is the power cable length of all Elite Electric Screens?
Q: What is the power cable length of all Elite Electric Screens?

Please see this chart.
Note: These measurements are accurate for USA only, other countries may be equipped with different lengths for each model.

Series NameModel SizesLength of Power Cord
CineTension2All Size98.4″ (2.5M)
Evanesce BAll Size98.4″ (2.5M)+ with extra control box
Evanesce Tension BAll Size98.4″ (2.5M)+ with extra control box
EvanesceAll Size98.4″ (2.5M)+ with extra control box
Evanesce TensionAll Size98.4″ (2.5M)+ with extra control box
Evanesce PlusAll Size98.4″ (2.5M)+ with extra control box
Home2All Size98.4″ (2.5M)
KestrelAll Size98.4″ (2.5M)
Kestrel Tab-TensionAll Size70.8″ (1.8M)
Kestrel Tab-Tension CLRXAll Size70.8″ (1.8M)
Kestrel StageAll Size98.4″ (2.5M)
Kestrel HomeAll Size98.4″ (2.5M)
Saker150″ below98.4″ (2.5M)
Saker150″ above (150″)98.4″ (2.5M)
Saker Tab-TensionAll Size98.4″ (2.5M)
Saker PlusAll Size98.4″ (2.5M)+ with extra control box
SpectrumAll Size98.4″ (2.5M)
Spectrum TensionAll Size98.4″ (2.5M)
Spectrum2All Size98.4″ (2.5M)
StarlingAll Size98.4″ (2.5M)
Starling 2All Size98.4″ (2.5M)
Starling Tab-TensionAll Size98.4″ (2.5M)
Starling Tab-Tension 2All Other Sizes98.4″ (2.5M)
Starling Tab-Tension 292″ in CineGrey 5D98.4″ (2.5M)
VMAX2150″ below98.4″ (2.5M)
VMAX2150″ above (150″)98.4″ (2.5M)
VMAX Dual®All Size98.4″ (2.5M)
VMAX Tab-Tension DualAll Size98.4″ (2.5M)
Yard Master ElectricAll Size98.4″ (2.5M)
VMAX Tab-Tension 3All Size98.4″ (2.5M)
Q: I need to directly control an Elite electric screen. Do you have a hard wire diagram?
Q: I need to directly control an Elite electric screen. Do you have a hard wire diagram?

Yes, please click HERE for a diagram to achieve a direct control (dry contact).

Q: My projector is not triggering the screen to drop. How do I test the trigger to ensure that the screen is not the issue?
Q: My projector is not triggering the screen to drop. How do I test the trigger to ensure that the screen is not the issue?

By exposing the red and green wires of the provided trigger, connect a 9-volt battery to the bare wires according to their polarity with the screen plugged in to the wall outlet. Once the wires make contact with the battery’s terminals, the screen will drop. Releasing the voltage from the battery will make the screen rise automatically. This indicates that the trigger and screen are functioning properly. Please check with your power source’s manufacturer for further assistance.   If the screen does not drop when applying the voltage with the battery, the next step would be to test the screen’s circuit board. Do this by plugging in the provided wall box and pressing the DOWN button. If the screen drops, then you may need a replacement trigger. Please contact Elite’s service department for support by sending an email to [email protected].

Q: I know that all Elite Screens motorized screens include a built-in 5-12 volt trigger RJ45 input port, but what if my projector does not have a 5-12 volt trigger ouput port. How can I take advantage of the automatic down/stop synchronizcation of my Elite motorized screen and my projector?
Q. I know that all Elite Screens motorized screens include a built-in 5-12 volt trigger RJ45 input port, but what if my projector does not have a 5-12 volt trigger ouput port. How can I take advantage of the automatic down/stop synchronizcation of my Elite motorized screen and my projector?

Elite Screens offers a wireless Universal 5-12 volt projector accessory (Part# ZU12V) for projectors that do not have a trigger output. Contact your preferred Elite Screens reseller or visit shop.elitescreens.com for information about purchasing this product.

Q: If I install a Motorized Screen into the ceiling, what are my possible methods of controlling it?
Q. If I install a Motorized Screen into the ceiling, what are my possible methods of controlling it?

Since the Spectrum’s Infrared (IR) Sensor is hidden within the ceiling, there are a few options in which to control a ceiling installed Spectrum Screen:

  1. IR Eye Extender (ZSP-EYE&12V):  With the need of line of sight, the IR signal will not be sensed by the IR receiver built within the housing of the Spectrum.  By using an IR eye extender that attaches via the Spectrums all purpose RJ45 port, the extended sensor provides a solution to this problem.
  2. Radio Frequency (RF) Remote (ZSP-RF-B, ZSP-RF-W): The Spectrum, unfortunately, does not come with an RF remote.  It does, however, have an RF receiver built into the housing.  Without the need of direct line of sight, an RF remote would be a good control option.
  3. In-Wall Switch (ZIW-B, ZIW-W, ZIW-W1):  The spectrum comes with an all purpose RJ45 port.  By routing a cable within the wall, the In-Wall Switch provides a close proximity control option.  In addition, you can create your own in-wall switch by purchasing only our ZIW-Module.
  4. Wireless 12V Trigger (ZSP-TR01):  Use your projector as a screen control option by hooking up this simple device to your projector’s output trigger port.  If your screen doesn’t have an output trigger port, the Universal Wireless 12V Projector Trigger (ZU12V) works just as well for all projectors.
Q: Does the ZPM-RT2 control kit work with other Elite Screens electric screens?
Q: Does the ZPM-RT2 control kit work with other Elite Screens electric screens?

No, the ZPM-RT2 only works on the Spectrum 2 series.
Note: Compatible only with Spectrum 2 Series with serial number 198Exxxxx and after.  Example. 198E00497

Q: Are Elite’s electric screens compatible with Harmony remotes?
Q: Are Elite’s electric screens compatible with Harmony remotes?

Most of Elite’s electric screen products are compatible with Harmony remotes and are in their database. The only electric screens series that are not compatible with Harmony remotes are the Starling and Starling Tab-Tension Series (Versions 1 and 2). New Elite Screens series may not appear in the Harmony database, but you can simply select the VMAX2 series as the IR codes are identical for all series. Click here to visit the Harmony website for further assistance with programming your remote with our electric screens.

Q: What is the power consumption and motor RPM for my Elite Electric screen?
Q. What is the power consumption and motor RPM for my Elite Electric screen?

Please click here for the motor information of your Elite electric screen.

Q: Can I increase the Top Black Border on my screen?
Q: Can I increase the Top Black Border on my screen?

No, your screen’s Top Black border has been set to deploy to its full extent. Attempting to increase will damage the motor and void your warranty with Elite Screens.

Q: Why does my electric screen no longer function?
Q: Why does my electric screen no longer function?

There are a few possible things you could check:

1. Make sure your wall plug has power and that the screen is properly plugged in.
2. If the screen works well with the wall switch but not with the remote controls, ensure that fresh alkaline batteries are installed in the remote controls.
3. Check your screen’s internal fuse. (Please call our Tech Support for location of fuse before tampering with the screen.)
4. Our Home2, CineTension2, Kestrel, Raptor and VMAX Plus 3/4 screens feature a tubular motor equipped with a Thermal Relay.  This feature will automatically shut off the screen should your motor become too hot, thus preventing overheating of the motor.  To correct this, simply leave the screen alone for 20-30 minutes and try again.

Q: What accessories are included with my Electric Motorized Screen?
Q: What accessories are included with my Electric Motorized Screen?

Please click here to view the Electric Screens Accessories chart.

Q: Can I use my manual/electric Elite projection screen as a window shade to block the sunlight?
Q: Can I use my manual/electric Elite projection screen as a window shade to block the sunlight?

No, Elite manual and electric projection screens are not designed for use as a window curtain and should never be exposed to direct sunlight.  Prolonged exposure to solar radiation will destroy synthetic materials and such damage is not covered by our standard warranty.
