Adhesive Rear Projection Film

Insta-RP 2 Series

The Insta-RP 2 Series is an adhesive Rear Projection Film that is self-adhesive for installations on storefronts or any applications requiring a rear projection system display. It easily installs on any clear surface such as glass and plexiglass materials.



  • Thickness : 80um±1um
  • Width :152.4 cm
  • Material : PET
  • Light Transmittance : 75%
  • Temperature Range : -10°C ~ 40°C
SKU: Please select option(s) Categories: , Tags: ,
Product WeightN/A
Overall DimsN/A
Viewing Angle

160°

Gain

2.2

Screen Material

Compatible Projection

Ultra Short Throw, Short Throw, Standard "Long" Throw

Material Type

Rear Projection

Insta-RP 2 Series Rear Projection Self-adhesive Film | Woodfire Kabob Testimonial

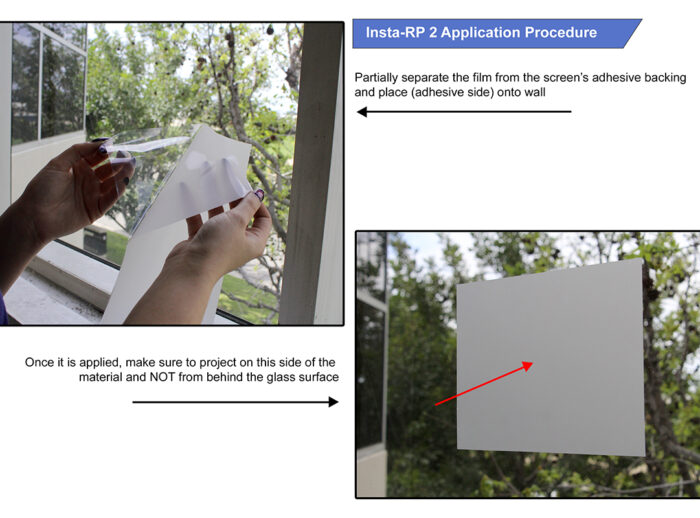

Insta-RP 2 Series | Rear Projection Self-Adhesive Film Installation

Weather Characteristics

High Temperature Storage 60 °C X 72 HoursPassNo Abnormal Appearance
High Temperature Storage -20 °C X 72 HoursPassNo Abnormal Appearance
High Temperature and Humidity 60 °C X 95% RH X 72 HoursPassNo Abnormal Appearance
Thermal Shock*PassNo Abnormal Appearance
Resistance to UV 15W UV X 24 HoursPassNo Abnormal Appearance

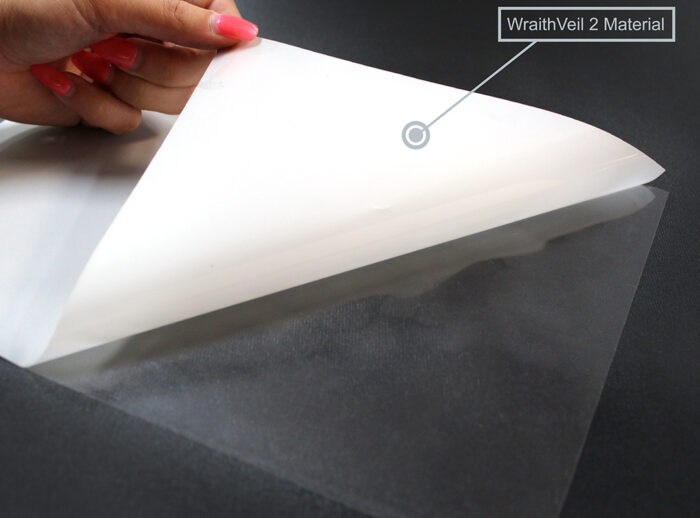

Rear Projection Film Screen Material:

  • WraithVeil® 2 Self-adhesive optical rear projection material (not translucent)
  • 4K Ultra HD, Active 3D, and HDR Ready
  • 12% transparency grade (not recommended for holographic images)
  • Minimum throw (lens) ratio of 0.19 x image width
  • Textured PET (Polyethylene terephthalate)
  • 2.2 gain with 180º wide diffusion uniformity
  • Material is easy to clean and maintain
  • Angular projection setup for elimination of “hot-spot”
  • Available in the following diagonal sizes:
    • 123″ in 16:9 format
    • Also available in 5’x20′ size

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

Q: What is the minimum lens throw ratio of the Insta-RP/Insta-RP2? Can I use an ultra/short-throw projector?
Q: What is the minimum lens throw ratio of the Insta-RP/Insta-RP2? Can I use an ultra/short-throw projector?

The minimum lens throw ratio is 0.2 x image width. Yes,  all projectors with minimum 0.2 lens throw ratio are all compatible with the Insta-RP/Insta-RP2.

Q: Can I use the Insta-RP / Insta-RP2 as both a front and rear projection surface?
Q: Can I use the Insta-RP / Insta-RP2 as both a front and rear projection surface?

While one may project images on the front of the surface of the Insta-RP/Insta-RP2…the quality of the reflected image may not perform equally, and therefore reduce the overall fidelity of the picture .

Q: Can the Insta-RP film material be installed on a curved glass/plexiglass and still retain its performance qualities?
Q: Can the Insta-RP film material be installed on a curved glass/plexiglass and still retain its performance qualities?

Yes, the Insta-RP film will indeed function perfectly on a curved glass setup. Below are two examples of such installations:

Insta-RP film examples
Insta-RP film examples
