Electric Floor-Rising Projection Screen
Kestrel Tab-Tension 3 Series

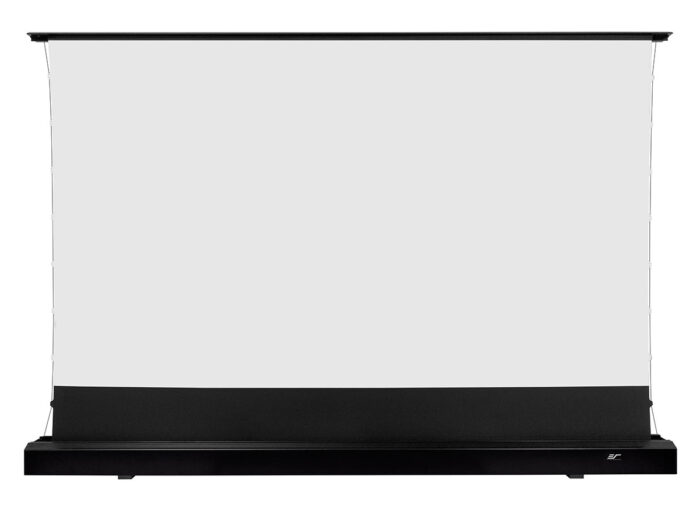

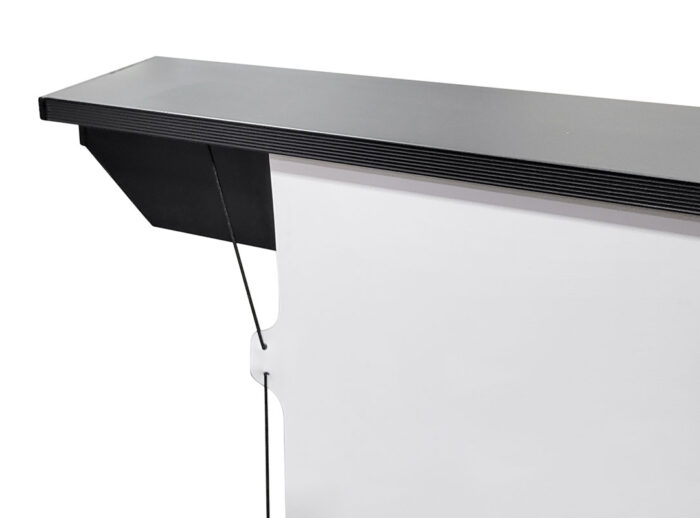

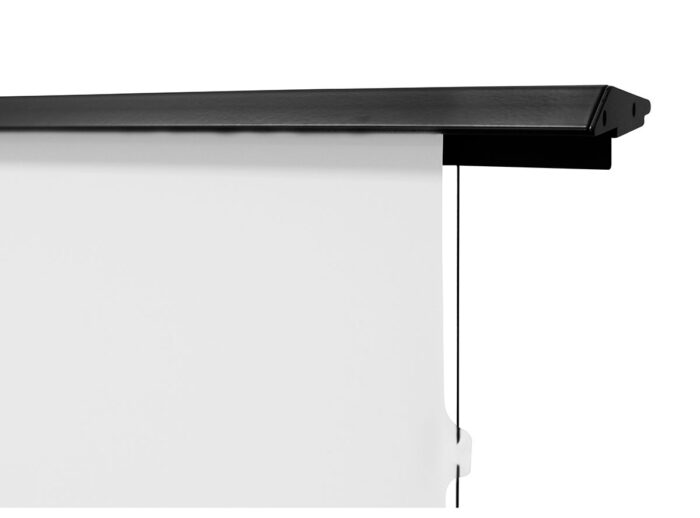

The Kestrel Tab-Tension 3 is an electric floor-rising projection screen that is an attractive centerpiece for home theater or high-level conference rooms. Its tab-tension design maintains a flat and taut front projection surface to provide a ripple-free image suitable for ultra-short throw projectors.
The Kestrel Tab-Tension 3 utilizes a “scissor-backed” cross risers to raise and lower the screen’s material. It is the ideal alternative solution for environments where wall/ceiling installations are not practical.

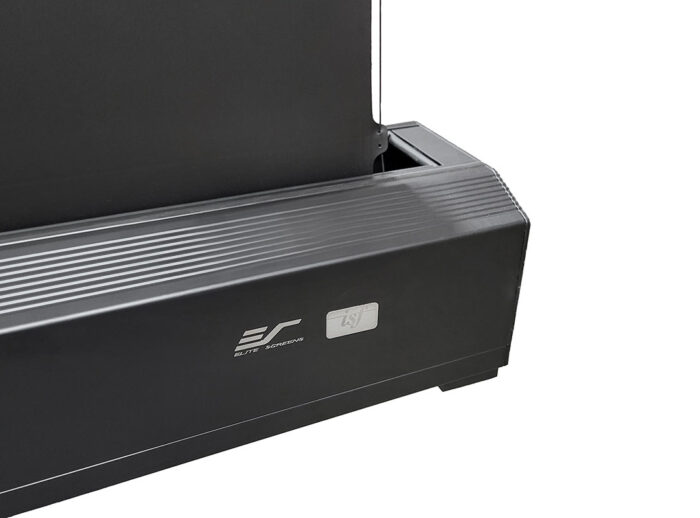

The housing is of aluminum construction, is moisture resistant and available in a black housing. It includes handheld remote controls, wall box controller and a 12v trigger.
| Viewing Angle | 180° |
|---|---|
| Gain | 1.1 |
| Screen Material | |
| Compatible Projection | Ultra Short Throw, Short Throw, Standard "Long" Throw |
| Material Type | Matte White |
Screen Material
- CineWhite® 1.1 Gain front projection material for rooms with controlled lighting
- Ultra-wide viewing angle allows viewers to see clear picture of equal brightness from any angle
- ISF Certified for accurate color reproduction – An Industry standard for high-fidelity video display systems
- Black-backing eliminates light penetration to prevent picture degradation
- Compatible with ultra/short, and standard (long) throw projectors
- Available in the following diagonal sizes: 122″, 135″, 150″ and 183″ in 16:9 aspect ratio
Design and Operation

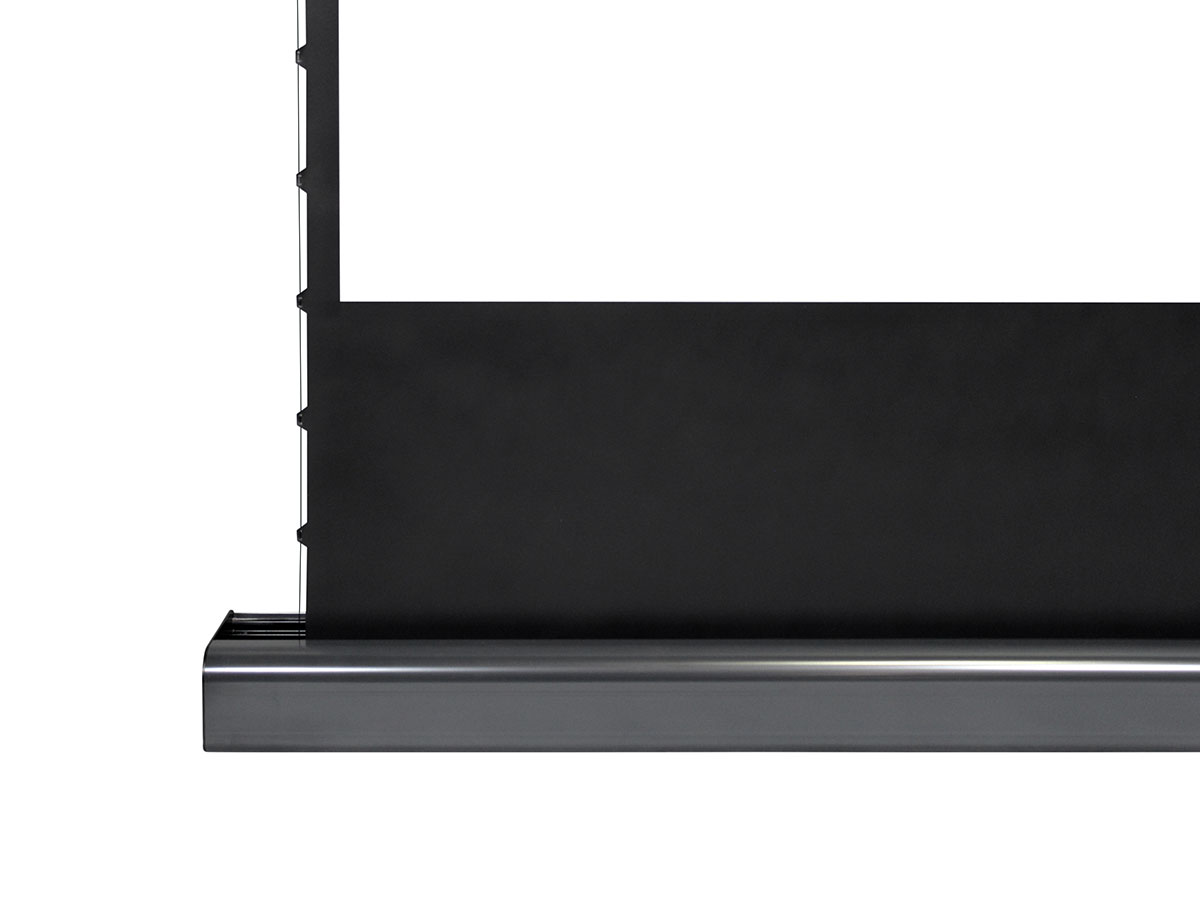

- Rises and lowers by our motorized precision “scissor-backed” cross spring risers

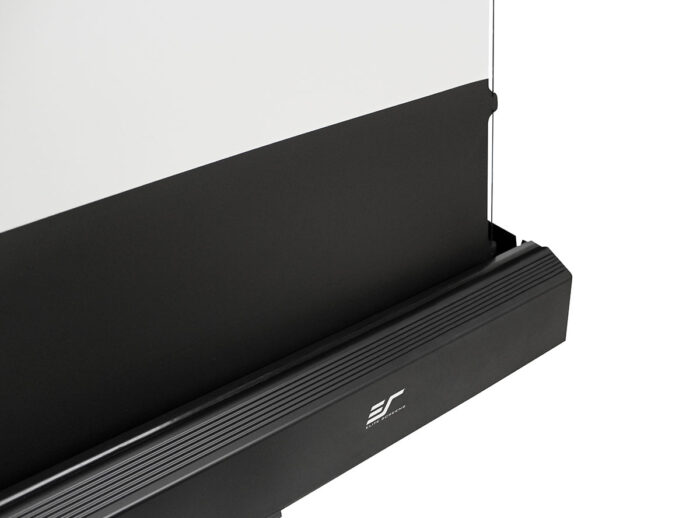

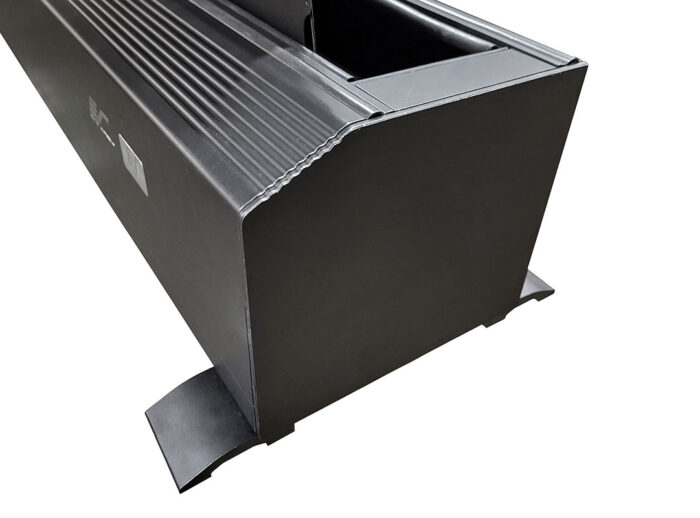

- Heavy-duty aluminum black housing is moisture resistant
- Free-standing projector screen appears and disappears from a touch of a button
- Plug & Play design with built-in low voltage control system, no hardwire installation required
- Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
- User-friendly programmable vertical rise position for easy installation
- Wall box controller is detachable for a clean look while maintaining RF & IR functionality
- Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
- 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
- Wired 12v trigger capability via wall box controller
- Wireless 12v trigger capability via Radio Frequency remote control
Quality and Reliability
- Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
Dimensions Tables
- Dimensions Table – H Type (PDF)
- Dimensions Table 150″ and Above – H Type (PDF)
- Dimensions Table (PDF) – J Type – DISCONTINUED
User Guides
- User Guide – RC1 (PDF)
- User Guide 150″ and Above – RC1 (PDF)
- User Guide (PDF) – J Type – DISCONTINUED
Comparison Tables
Others
Check your projector’s documentation to find out if your projector has a 5 volt or 12 volt trigger output. If it does then the ZSP-TR02 is compatible with your projector.
A: The ZU12V is compatible only with Electric/Motorized drop down screens using Ver 2.0 or 3.0 circuit boards. You can typically find this information on your Radio Frequency remote control.
Electric/Motorized Screens that are not compatible:
• Floor-Rising Electric/Motorized screens
• All Yard Master Electric/Motorized screen
• Drop down Electric/Motorized screens
– New RC1 circuit board. For example, Radio Frequency remote has part number ZRC1-RF on the back.
– ZZ Type
– J Type
– X Type
The ZIW In-Wall switch is compatible with all of Elite’s electric retractable floor rising, wall/ceiling and in-ceiling/recessed screens, EXCEPT for the VMAX Dual®, VMAX Tab-Tension Dual, Starling, Starling 2, Starling Tab-Tension and the Starling Tab-Tension 2 Series.
Please see this chart.
Note: These measurements are accurate for USA only, other countries may be equipped with different lengths for each model.
| Series Name | Model Sizes | Length of Power Cord |
| CineTension2 | All Size | 98.4″ (2.5M) |
| Evanesce B | All Size | 98.4″ (2.5M)+ with extra control box |
| Evanesce Tension B | All Size | 98.4″ (2.5M)+ with extra control box |
| Evanesce | All Size | 98.4″ (2.5M)+ with extra control box |
| Evanesce Tension | All Size | 98.4″ (2.5M)+ with extra control box |
| Evanesce Plus | All Size | 98.4″ (2.5M)+ with extra control box |
| Home2 | All Size | 98.4″ (2.5M) |
| Kestrel | All Size | 98.4″ (2.5M) |
| Kestrel Tab-Tension | All Size | 70.8″ (1.8M) |
| Kestrel Tab-Tension CLRX | All Size | 70.8″ (1.8M) |
| Kestrel Stage | All Size | 98.4″ (2.5M) |
| Kestrel Home | All Size | 98.4″ (2.5M) |
| Saker | 150″ below | 98.4″ (2.5M) |
| Saker | 150″ above (150″) | 98.4″ (2.5M) |
| Saker Tab-Tension | All Size | 98.4″ (2.5M) |
| Saker Plus | All Size | 98.4″ (2.5M)+ with extra control box |
| Spectrum | All Size | 98.4″ (2.5M) |
| Spectrum Tension | All Size | 98.4″ (2.5M) |
| Spectrum2 | All Size | 98.4″ (2.5M) |
| Starling | All Size | 98.4″ (2.5M) |
| Starling 2 | All Size | 98.4″ (2.5M) |
| Starling Tab-Tension | All Size | 98.4″ (2.5M) |
| Starling Tab-Tension 2 | All Other Sizes | 98.4″ (2.5M) |
| Starling Tab-Tension 2 | 92″ in CineGrey 5D | 98.4″ (2.5M) |
| VMAX2 | 150″ below | 98.4″ (2.5M) |
| VMAX2 | 150″ above (150″) | 98.4″ (2.5M) |
| VMAX Dual® | All Size | 98.4″ (2.5M) |
| VMAX Tab-Tension Dual | All Size | 98.4″ (2.5M) |
| Yard Master Electric | All Size | 98.4″ (2.5M) |
| VMAX Tab-Tension 3 | All Size | 98.4″ (2.5M) |
The adaptor can easily be made by using a CAT-5 networking cable and a RJ-45 networking connector. See image below and please note that the RJ-45 is exclusively designed to be compatible with only a projector’s trigger output. Any other type of device’s trigger output that you choose to utilize with our product is to your own discretion and is not covered under warranty should there be any malfunction. Please contact Elite Screen’s technical support department for further information. Circuit board layout of CineTension2, Home2, VMAX2, Spectrum, Kestrel series screens
There are a few possible things you could check:
1. Make sure your wall plug has power and that the screen is properly plugged in.
2. If the screen works well with the wall switch but not with the remote controls, ensure that fresh alkaline batteries are installed in the remote controls.
3. Check your screen’s internal fuse. (Please call our Tech Support for location of fuse before tampering with the screen.)
4. Our Home2, CineTension2, Kestrel, Raptor and VMAX Plus 3/4 screens feature a tubular motor equipped with a Thermal Relay. This feature will automatically shut off the screen should your motor become too hot, thus preventing overheating of the motor. To correct this, simply leave the screen alone for 20-30 minutes and try again.

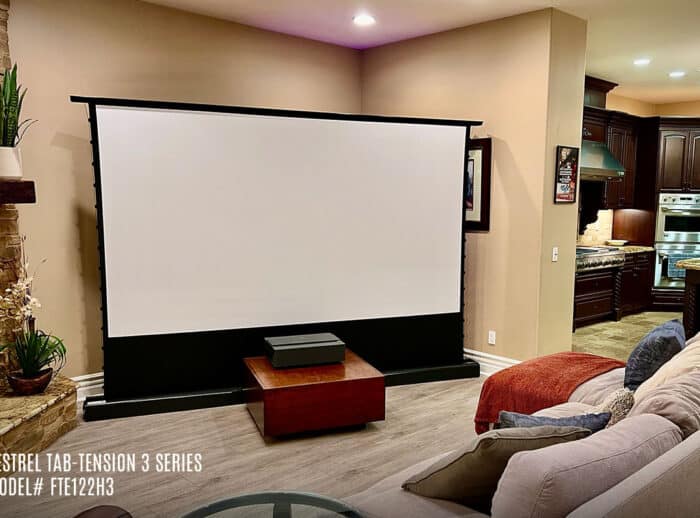

Lifestyle Gallery

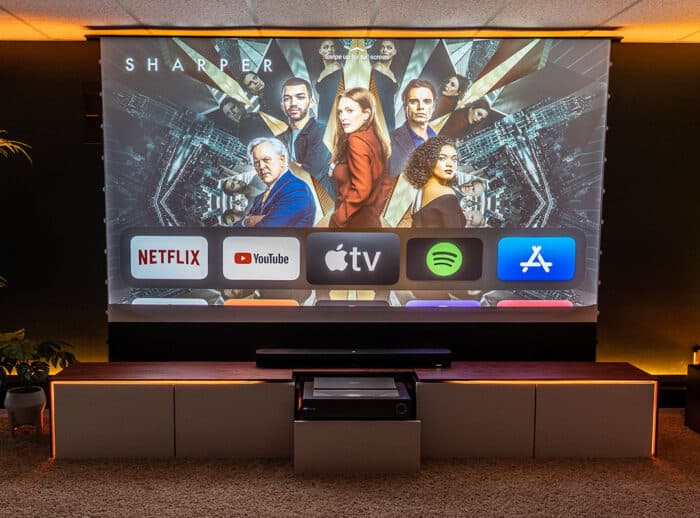

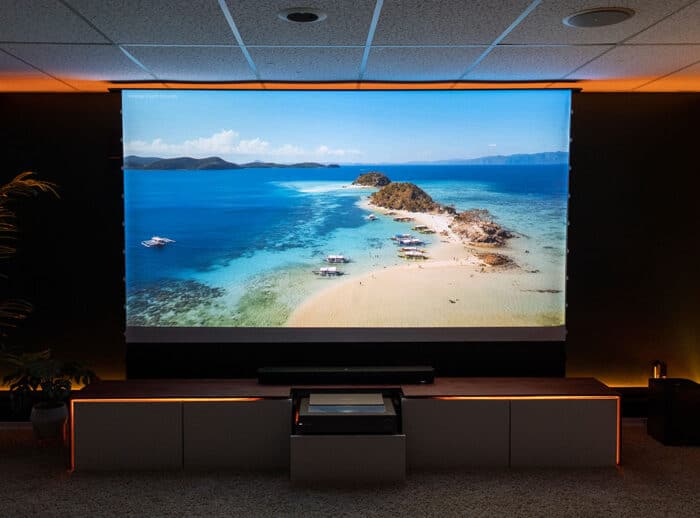

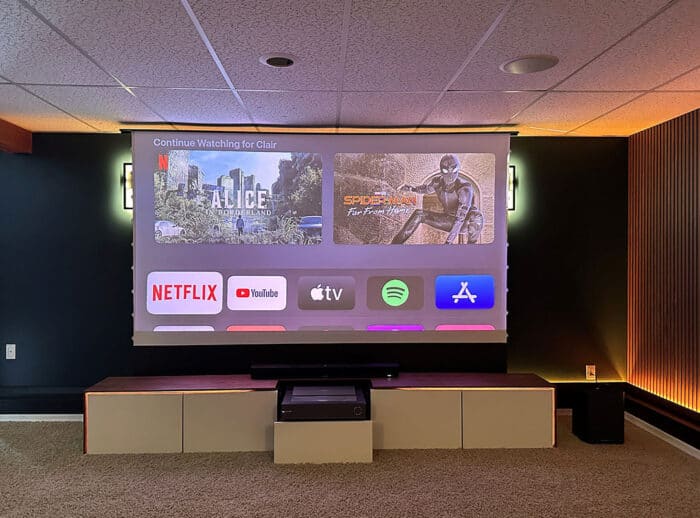

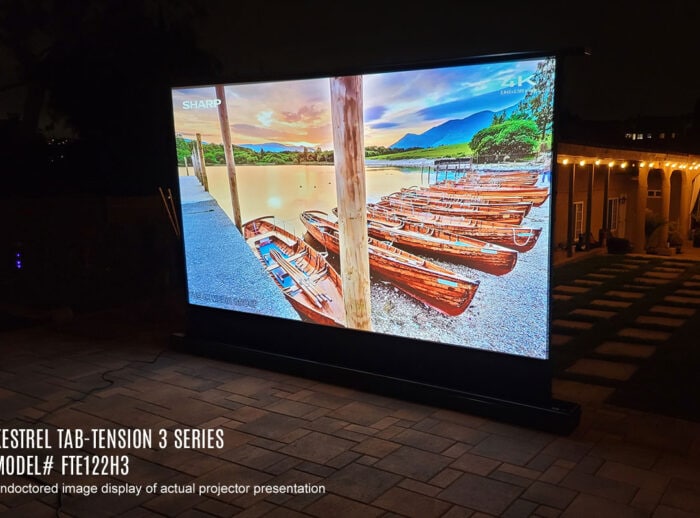

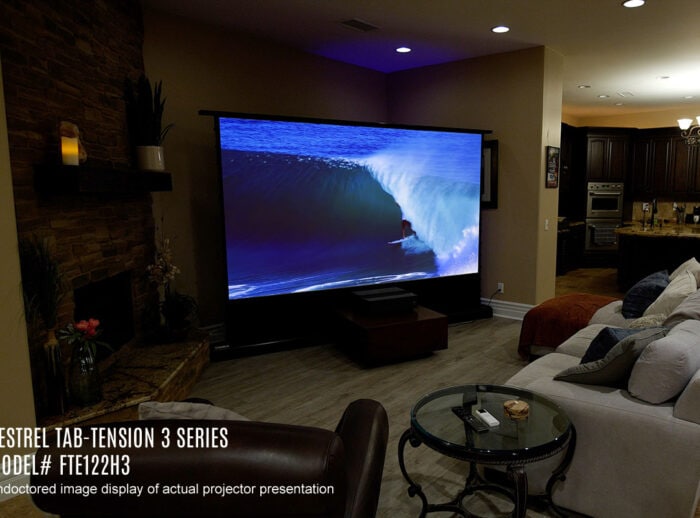

Undoctored image of actual projector presentation
