Ceiling Ambient Light Rejecting Projection Screen

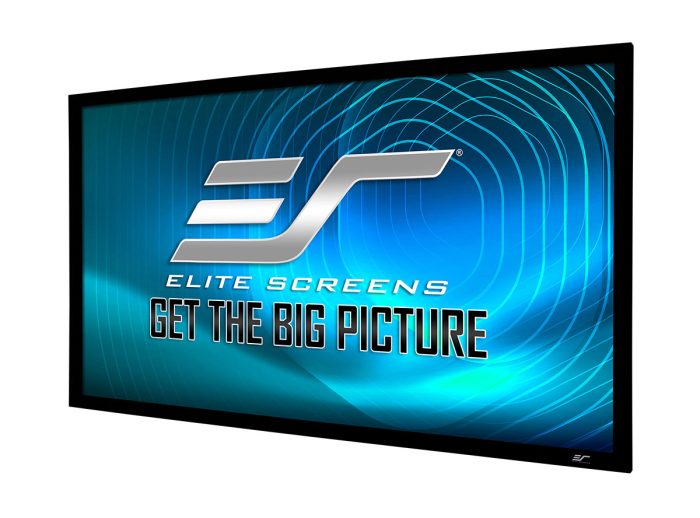

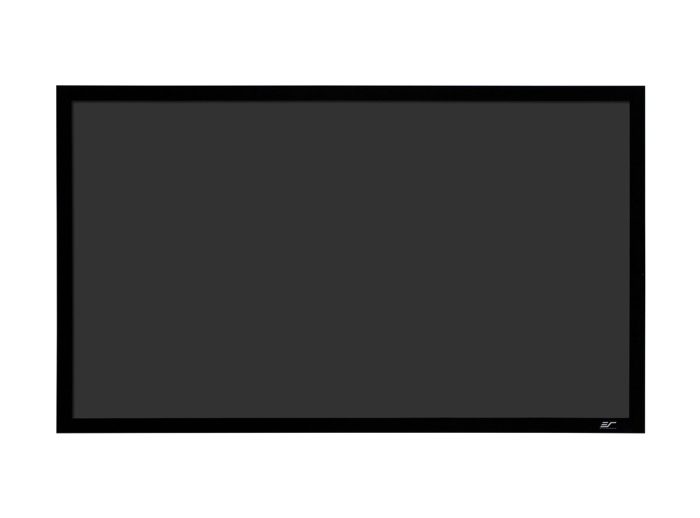

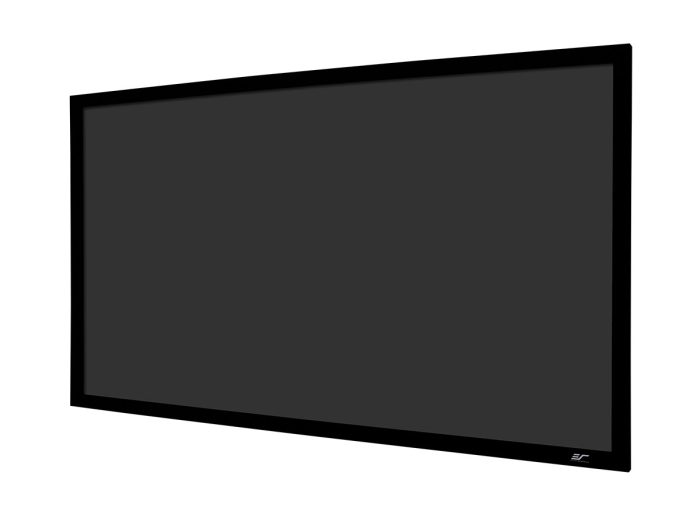

Sable Frame StarBright® 14
The Sable Frame StarBright® 14 is a fixed frame projection screen that utizlies a high-gain front projection material with ceiling ambient light (CLR®/ALR) rejecting technolgy designed for use in environments where ambient light cannot be entirely controlled. An added value is that it works exceptionally well in improving contrast in dark room environments as it does with high levels of ambient light.
The StarBright® 14 CLR/ALR front proejction surface is a true optical lens based front projection screen material. Its specialized filter design eliminates ambient light wash-out by reflecting only the direct projected image. The results are superior image brightness levels with enhanced contrast and color neutrality. It features a retro-reflective surface that directs projector light to the audience reducing light scatter.
| Viewing Angle | 70° |
|---|---|
| Gain | 1.4 |
| Screen Material | |
| Compatible Projection | Standard "Long" Throw |
| Material Type | Ambient Light Rejecting (ALR/CLR®), Silver & Grey |
Screen Material
- StarBright® 14 is a retro-reflective front projection material for standard throw projectors
- 1.4 Gain increase projector brightness to produce vibrant colors and high contrast images in bright room environments
- Active micro-structural filters absorb 95% of ceiling light from above to combat the washout effect typically experienced with matte white materials
- Diffusion layers enhance color contrast and black/white dynamic range performance
- Excellent diffusion uniformity without color shift, texture, shimmer, hot-spotting, dark corners and other distracting artifacts
- Scratch-resistant material is easy to clean and maintain
- Optimized for 4K/8K Ultra HD, HDR projectors
Design & Installation

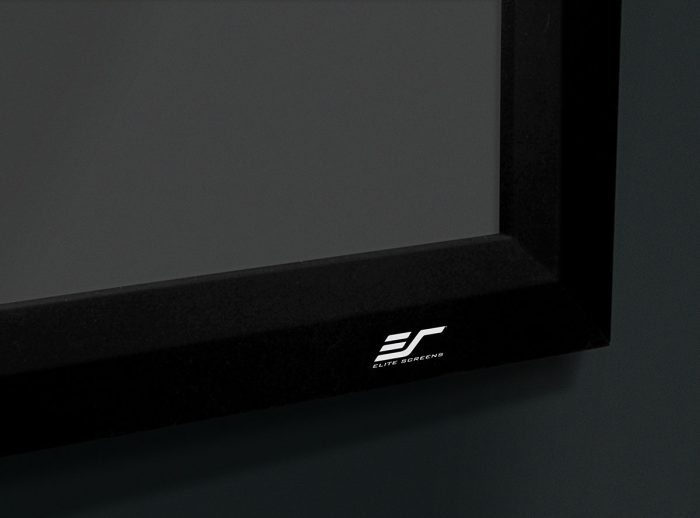

- 2.35” wide aluminum frame with hand-wrapped velveteen surface provides an elegant finish while absorbing projector overshoot
- Spring and grommet attachment system allows for an easy installation with a clean, smooth projection surface
- Split-frame aluminum design is cost-effective for shipping and provides easy access to installation sites
- Sliding wall mounting brackets accommodate wood stud installation and allow horizontal movement of screen to ensure precision on-axis alignment
Quality and Reliability
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
Dimensions Tables
- Dimensions Table (PDF)
User Guides
Comparison Tables
- Product Cut Sheet (PDF)
- CLR®/ALR Materials Comparison
- Fixed Frame Comparison Table
- ALR/CLR® Fixed Frame Comparison Table
Sable Frame Series FAQ’s
While the frame structure and screen material performance remain the same between the version 1 and version 2 of the (Lunette, SableFrame,ezFrame) series, there are two main differences.
– Version 2 features a newly designed material that has a rubber-edge border (does not apply to AcousticPro materials) which makes installation a lot easier and a lot less time consuming.
– Version 2 comes with an installation kit that includes wood screws & improved dry-wall anchors, wall brackets, screwdriver, and a mallet.
Both of these new features help speed up the overall process of assembly and installation of your fixed frame projection screen.
The Sable Frame and ezFrame frame have different frame designs. The SableFrama has an Astragal (half round surface flanked by 2-flat sides) profile as opposed to the ezFrame’s standard (wedge or sloped-edgethe frames are different only to suit different aesthetic needs. Please see this PDF for an illustration of the differences. Both frames come in 16:9, 16:10, and 2.35:1 aspect ratios. Both are also available in Cinegrey, Cinegrey5d, Cinewhite™, Powergain, and AcousticPro1080P2. The ezFrame is different in that it is also 4:3 aspect ratio and it is available with AcousticPro1080P3 and WraithVeil(rear projection) screen material.
Elite Screens offers replacement materials for 4:3, 16:9, and 2.35:1 fixed frame screens.
Decoding the model number: ZR92WH1-M
ZR- Sable Frame / ezFrame Series Replacement Material
92= Diagonal Size of 92″
W= CineWhite
H= 16:9 Aspect Ratio (V= 4:3, Wide= 2.35:1)
-M = Screen Type
ZAR : Aeon Series Replacement Material
Z-SBSF : Sable Frame B2 Series Replacement Material
Shop links : Sable Frame / ezFrame Series Materials, Aeon Series Materials, Sable Frame B2 Series Materials
General Fixed Frame Screens FAQ’s
In addition to an appealing aesthetic appearance, the advantage of having a black velvet covered frame is to help absorb projector overshoot.
Center support bar for larger size fixed frame screens goes inside the top of the groove located on the back of the frame.
Elite Screens does not recommend attempting such an installation as in most cases it would not be possible. This is because the frame has to be lifted directly above and then placed down onto the brackets. The brackets will then latch onto the grooves of the frame and hold it in place. Mounting the wall brackets flush to the wall and ceiling would not provide the clearance needed for the frame to be lifted above the brackets. Elite Screens recommends the wall brackets be placed no closer than 4-6”(depending on the thickness of the frame) below the ceiling as that ditstance would give you the clearance needed to lift the screen above and then onto the brackets.
2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
