Light-Weight Portable Projection Screen
Tripod B Series
Tripod B SeriesTripod B Series in Conference Room

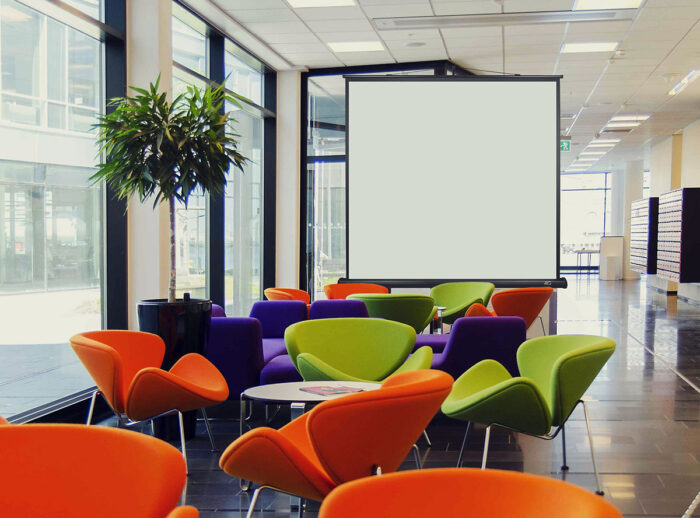

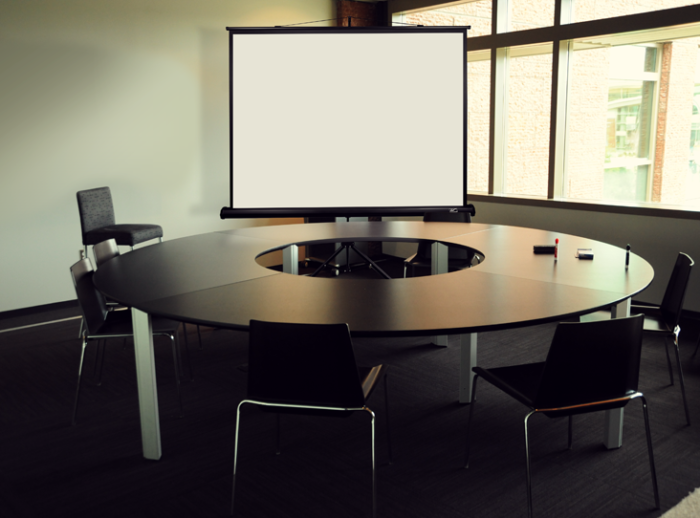

Tripod B Series in Conference Room

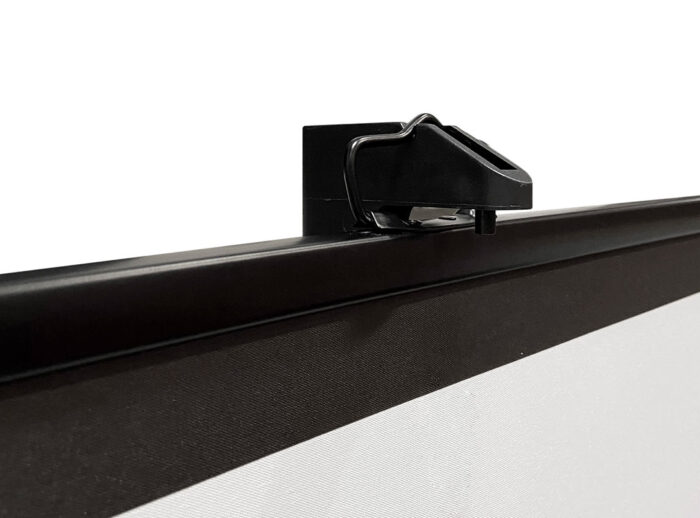

Tripod B Series 50 inch Model Top

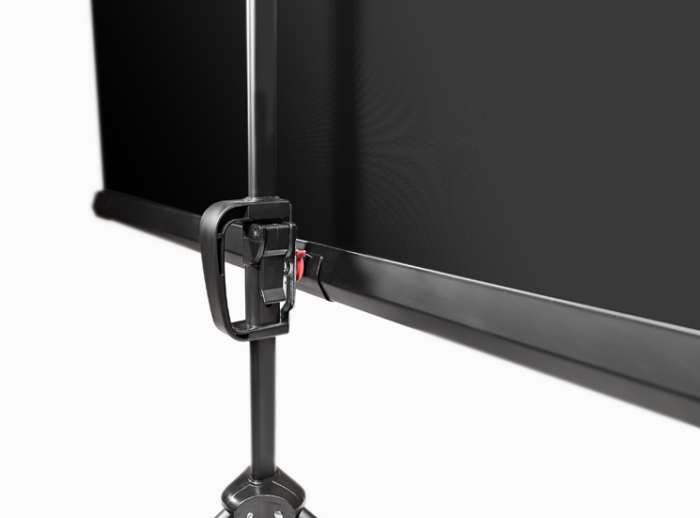

Tripod B Series Back View Detail
Tripod B Series Back View
Tripod B Series Top View Detail

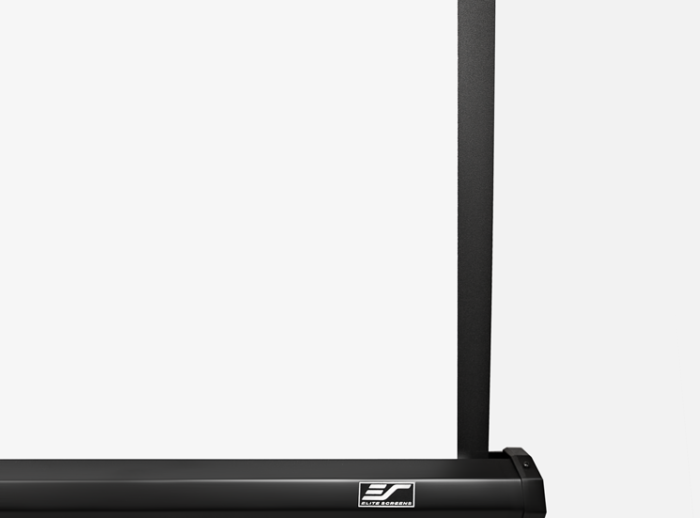

Tripod B Series Bottom Right Side View

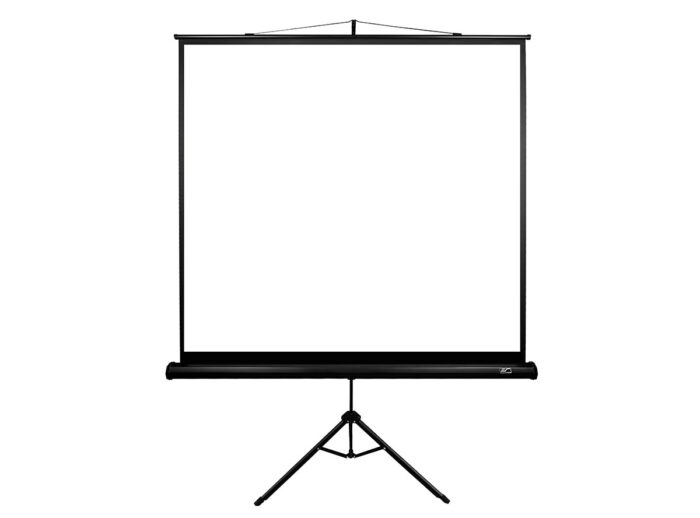

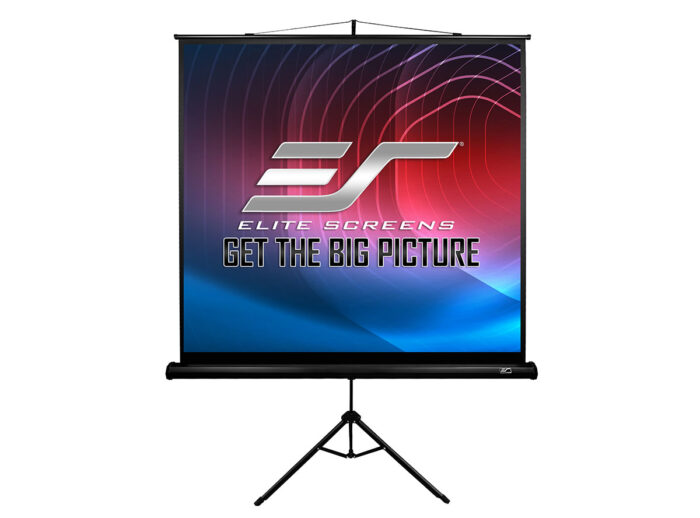

Tripod B Series Front View
Tripod B Series Front View
Tripod B Series Front View
Tripod B Series Angle View
Tripod B Series Angle View
The Tripod B Series is a light-weight portable projection screen of the traditional tripod design. It is a dependable design that is easy to carry for portable small or large venue presentations. Its adjustable telescopic support allows variable height settings to aid in formatting the screen into a variety of aspect ratios. The MaxWhite® 2 front projection material has a 1.1 unity gain with a wide viewing angle.
*Below are examples of aspect ratios that can be achieved by adjusting the height position on a T113SB.
- 60” height x 80” wide = 100” diagonal in 4:3
- 50” height x 80” wide = 94” diagonal in 16:10
- 45” height x 80” wide = 92” diagonal in 16:9
- 34” height x 80” wide = 87” diagonal in 2.35:1
| Viewing Angle | 180° |
|---|---|
| Gain | 1.0 |
| Compatible Projection | Standard "Long" Throw |
| Screen Material | |
| Material Type | Matte White |
Screen Material
- MaxWhite® 2 1.1 Gain matte white front projection material
- Black backing eliminates light penetration for enhanced brightness
- Wide 180° viewing angle diffusion uniformity maintains projector light all across the surface
- Not compatible with Ultra/Short-throw Projectors
- Standard left and right black masking borders enhances perceived contrast
- Available in the following diagonal sizes:

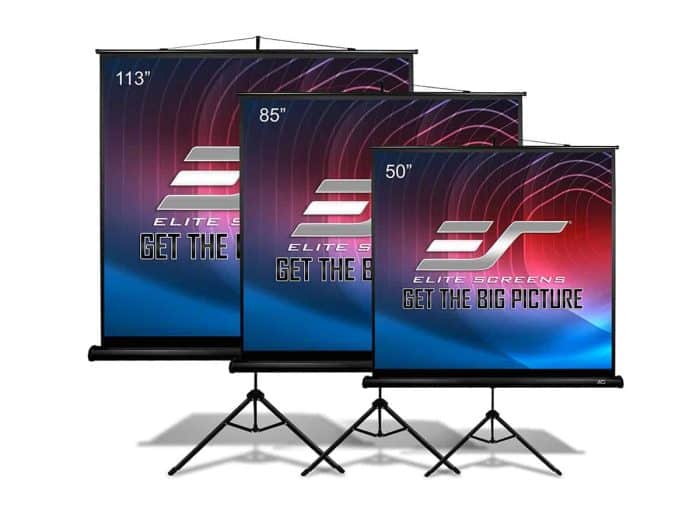

- 50″, 71″, 85″ and 113″ in 1:1 format
Design and Operation

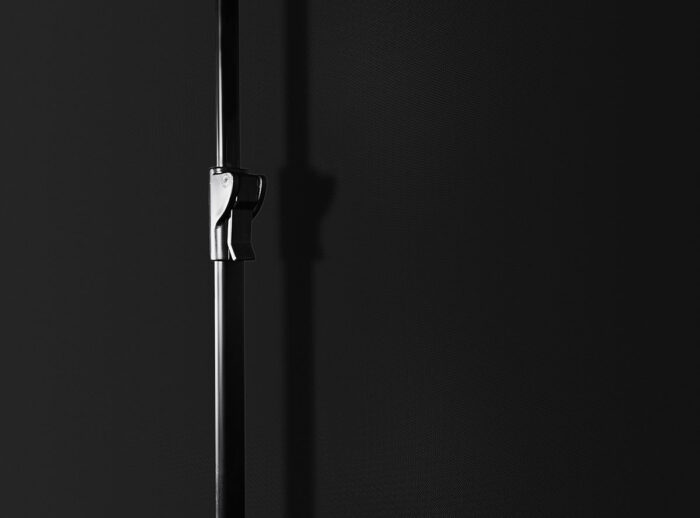

- Adjustment lock secures telescopic vertical support positions
- Latch locking system allows multiple height adjustment for various aspect ratio settings

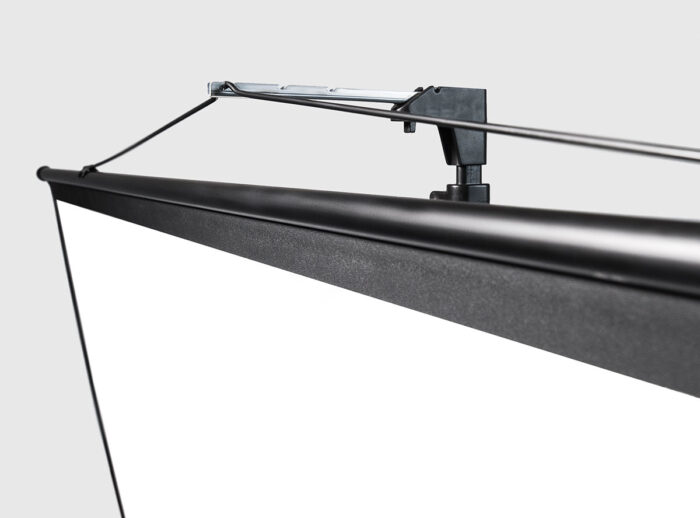

- Keystone eliminator
- Integrated handle allows screen to be easily carried
- Heavy-duty metal casing withstands rough handling while in transit
- Includes drawstring bag for easy transport on the go. (50″ and 71″ Models ONLY)
- Optional canvas bag available for added protection during transit (excludes 50″ model)
Quality and Reliability
- GREENGUARD® and GREENGUARD® Gold Certified | UL 2818
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
User Guides
- User Guide (PDF)
- User Guide – Z Type (PDF) – DISCONTINUED
Dimensions Tables
- Dimensions Table – EN Type (PDF)
- Dimensions Table – Z Type (PDF) – DISCONTINUED
A: Follow the steps below:
1. Pull adjustment tabs to unlock
2. Push and slide legs in to shorten position
3. Push extension bar down and hook pin to end cap
4. Finally lock both adjustment tabs to fit in the carrying bag
The Tripod Pro series was designed for ProAV & Staging applications. Both the Tripod and Tripod Pro have a steel casing but the Pro Series has a velvet finish giving it a more professional appearance. The Pro Series comes in the 1:1 aspect ratio and is available in diagonal sizes 85″, 99″, 113″, and 119″ . The Tripod is available in 1:1, 4:3, and 16:9 aspect ratios and diagonal sizes from 50″-136″.
No, the tripod is not detachable from the screen’s case.
No, but Elite does sell an optional carrying bag for all tripod models. You can buy one from your preferred reseller or at www.shop.elitescreens.com.
2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
