outdoor folding-Frame rear projection screen.

Yard Master 2 Rear Series

The Yard Master 2 is a folding-frame outdoor projection screen. Its light-weight aluminum frame allows it to be set up in minutes. Simply, unfold the frame; attach the material and legs, then project. The Yard Master 2 is the perfect companion for outdoor presentations with front or rear projection materials available.

*Be sure to use the screen only during a light breeze (up to 7 mph); it is not meant to withstand heavy winds.

Product WeightN/A
Overall DimsN/A
Viewing Angle

120°

Gain

2.2

Screen Material

Compatible Projection

Standard "Long" Throw

Material Type

Rear Projection

Extension Legs for Elite Screens’ YardMaster II Outdoor Projection Screen

YardMaster 2 Series Indoor/Outdoor Projection Screen

Yard Master 2 Series Outdoor Projection Screen Product Video

Yard Master 2 Outdoor Projection Screen

Available in the following front projection materials

Material NameGainViewing AngleDescription
WraithVeil®2.2 160°WraithVeil® is our rear projection material which has a special surface coating that enhances color reproduction and black level contrast with good uniformity for large audiences. Ideal for moderate room lighting environments.



Screen Material

  • WraithVeil® tensioned rear projection material
  • Black masking borders enhance picture contrast
  • 4K Ultra HD, Active 3D, and HDR Ready
  • Available in the following diagonal sizes:
    • 100″, 120″ and 135″ in 4:3 format
    • 55″, 90″, 100″, 110″, 120″ and 135″ in 16:9  format

Design and Operation

  • Light-weight aluminum square tube construction
  • Single-piece frame system unfolds effortlessly
  • Corner pull-tabs make installation easier
  • Snap-button attachments on material

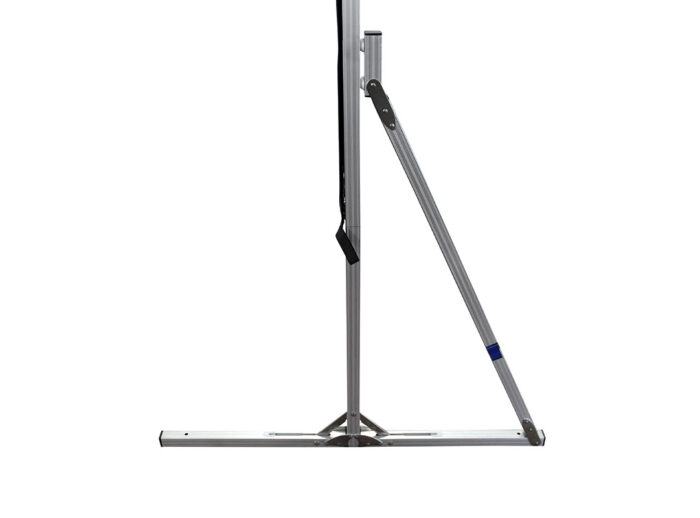

  • Detachable AT-legs included
  • Assembles in minutes with no tools required
  • Stainless steel components are corrosion resistant and suitable for protection against outdoor elements
  • Stakes, rope, and support rings included for additional support and stability (Not included in models OMS55HR2 / OMS58H2)
  • Soft-padded carrying bag stores entire product for portability
  • Optional extension legs (ZOMS2-LEGS) increase height by 27″ – SOLD SEPARATELY

Quality and Reliability

  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

Rear Projection Material FAQ's

Q: Does the WraithVeil® /WraithVeil® 2 rear projection material create a “hotspot” effect?
Q: Does the WraithVeil® /WraithVeil® 2 rear projection material create a “hotspot” effect?

The reflective properties of the Wraith Veil rear projection material may cause a hot spot.  This is normal for this material and thus, the following should be considered to reduce the possibility of having a hot spot.

1. Reduce the output power of the projector. Choose a lower lumens (brightness) setting like Cinema for example.
2. Avoid using ultra/short-throw projectors since the bulb will be very close to the material.
3. Move the projector further away from the screen.  This will increase the throw distance of the projector, and will effectively reduce the intensity of the image brightness.
4. Reposition the projector relative to the audience.  Raising the projector’s height or lowering it so it is not projecting directly into the viewer’s line of sight.  Use vertical lens shift to achieve vertical off-axis projection and use the keystone adjuster to restore the image’s rectangular shape.
5. Another idea is to position the projector horizontally off-axis so that the projector’s glare will not be in the viewer’s line of sight.

Yard Master 2 Rear Series FAQ’s

Q: How many times do we recommend the Elite Yard Master Portable Projector screen material to be folded so it can be properly stored after each use? Is there a preferred number of folds to reduce the presence of wrinkles?
How many times do we recommend the Elite Yard Master Portable Projector screen material to be folded so it can be properly stored after each use? Is there a preferred number of folds to reduce the presence of wrinkles?

In order to have less memory lines or “wrinkles” from folding, here are a few tips. Don’t fold tightly or try to fold over the material as compact as possible. Both will leave pronounced memory lines. It is recommended to take note of how lightly folded the screen material was when it came from the factory and repeat that whenever you are packing the screen away. Another method when storing the screen is to gently and loosely roll the material and keep it in a safe, dry space at an optimal room temperature.

Q: My Yard Master has lines or wrinkles on the material. Will they disappear after stretching or what else can I do to eliminate them?
Q: My Yard Master has lines or wrinkles on the material. Will they disappear after stretching or what else can I do to eliminate them?

Wrinkles or lines found on the Yard Master projection material in most cases disappear when the material is stretched over the frame. If in case they don’t, we recommend using a fabric steamer to eliminate any lines or wrinkles.

Q: Will my Yard Master projection screen rust if I leave it outdoors for a long period of time (weeks, etc.)?
Q: Will my Yard Master projection screen rust if I leave it outdoors for a long period of time (weeks, etc.)?

Eventually, yes. It is recommended that no projection screen, regardless of manufacturer/model be permanently left outside and exposed directly to the elements. The yardmaster is made for temporary outdoor events such as day excursions or weekend camping trips. It has a rolled sheet steel alloy frame that is coated in a rust-resistant black enamel for outdoor events. Just like any other piece of audio-video equipment, proper care and storage is required to maximize the Yardmaster’s operational lifespan.

Q: Can I use the YardMaster 2 series outside on a windy day?
Q: Can I use the YardMaster 2 series outside on a windy day?

In a calm wind below 10mph, yes. If it exceeds the 10mph, there is a chance of damaging the frame or the material itself.

Q: Do we recommend they store the Elite Yard Master portable Projection screen in a plastic or a metal bin when it is not being used ?
Do we recommend they store the Elite Yard Master portable Projection screen in a plastic or a metal bin when it is not being used ?

Either way will work just fine. However, it is best to first pack the screen into its canvas carrying pouch which is included. This accessory was designed to protect the screen when you store it.

Q: Regarding the Yard Master 2 / Yard Master 2 WraithVeil Dual / Yard Master Plus Series products, Is there an issue with leaving the screen on the frame for long periods of time? Will the screen stretch out? Will the frame eventually warp? I’m looking to avoid constant assembly and disassembly.
Q: Regarding the Yard Master 2 / Yard Master 2 WraithVeil Dual / Yard Master Plus Series products, Is there an issue with leaving the screen on the frame for long periods of time? Will the screen stretch out? Will the frame eventually warp? I’m looking to avoid constant assembly and disassembly.

The Yard Master 2 / Yard Master 2 WraithVeil Dual / Yard Master Plus Series products are portable outdoor screens that can be left in a safe area outside for a few nights. It is not designed to be a permanent fixed frame and left assembled for a long period of time indoors or outdoors.
