rear projection screen material

WraithVeil®

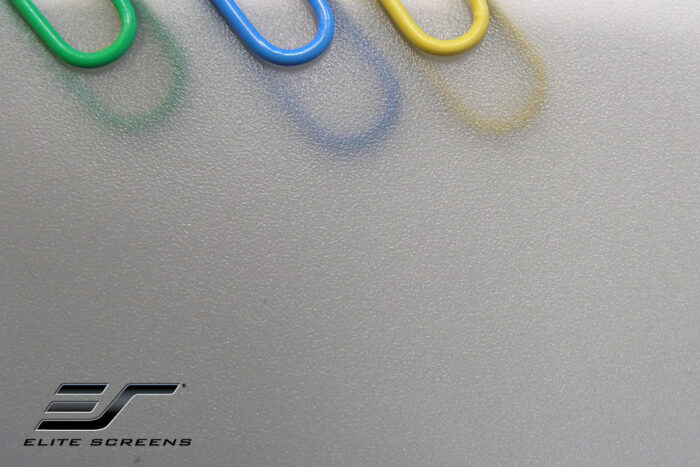

WraithVeil® is our rear projection screen material. It has a high gain performance for applications with a high ambient light intrusion. Its 2.2 gain configuration is ideal for events such as clubs, restaurants, trade shows, meeting rooms, and outside evening presentations. Its special surface coating enhances color reproduction and black level contrast with wide uniformity for large audiences. Seamless screen sizes are available in sizes up to 200″.

Gain

2.2

Viewing Angle

160°

Compatible Projection

Standard "Long" Throw

Material Type

Rear Projection

  • Textured PVC with surface coating
  • Gain 2.2
  • Viewing angle: 160° (80° ± LR)
  • Screen surface can be easily cleaned with mild soap and water
  • Mildew resistant
  • 4K Ultra HD, Active 3D, and HDR Ready

Part number list for WraithVeil material for Yard Master 2 Series

Part No.DescriptionFormatGain
Z-OMS90HR290″ WraithVeil rear projection material for YardMaster 216:92.2
Z-OMS100HR2100″ WraithVeil rear projection material for YardMaster 216:92.2
Z-OMS110HR2110″ WraithVeil rear projection material for YardMaster 216:92.2
Z-OMS120HR2120″ WraithVeil rear projection material for YardMaster 216:92.2
Z-OMS135HR2135″ WraithVeil rear projection material for YardMaster 216:92.2



Part number list for WraithVeil material for Yard Master Plus Series

Part No.DescriptionFormatGain
 Z-OMS100HR2PLUS 100″ WraithVeil rear projection material for OMS100H2PLUS16:9 2.2
Z-OMS120HR2PLUS120″ WraithVeil rear projection material for OMS120H2PLUS16:9 2.2
Z-OMS135HR2PLUS 135″ WraithVeil rear projection material for OMS135H2PLUS16:9 2.2
Z-OMS145HR2PLUS 145″ WraithVeil rear projection material for OMS145H2PLUS16:9 2.2
Z-OMS180HR2PLUS 180″ WraithVeil rear projection material for OMS180H2PLUS16:9 2.2
Z-OMS200HR2PLUS 200″ WraithVeil rear projection material for OMS200H2PLUS16:9 2.2

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

  • Gain 2.2
  • Viewing angle: 160° (80° ± LR)

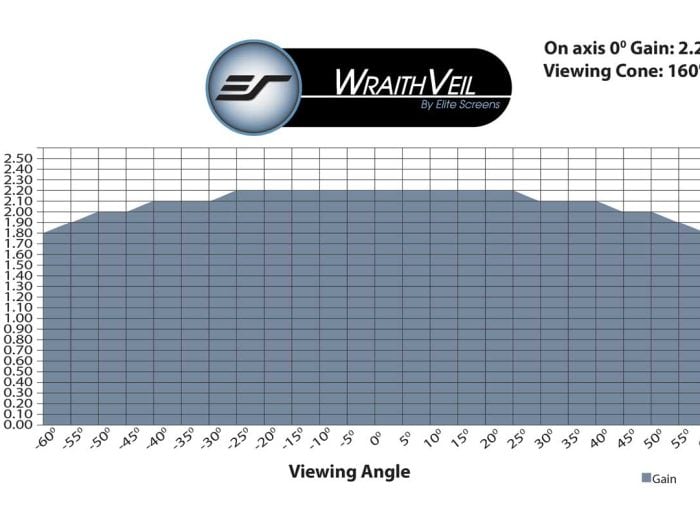

WraithVeil® Gain Chart

Q: Does the WraithVeil® /WraithVeil® 2 rear projection material create a “hotspot” effect?
Q: Does the WraithVeil® /WraithVeil® 2 rear projection material create a “hotspot” effect?

The reflective properties of the Wraith Veil rear projection material may cause a hot spot.  This is normal for this material and thus, the following should be considered to reduce the possibility of having a hot spot.

1. Reduce the output power of the projector. Choose a lower lumens (brightness) setting like Cinema for example.
2. Avoid using ultra/short-throw projectors since the bulb will be very close to the material.
3. Move the projector further away from the screen.  This will increase the throw distance of the projector, and will effectively reduce the intensity of the image brightness.
4. Reposition the projector relative to the audience.  Raising the projector’s height or lowering it so it is not projecting directly into the viewer’s line of sight.  Use vertical lens shift to achieve vertical off-axis projection and use the keystone adjuster to restore the image’s rectangular shape.
5. Another idea is to position the projector horizontally off-axis so that the projector’s glare will not be in the viewer’s line of sight.
