Non-electric Outdoor projection screen

Yard Master Manual Series

GREENGUARD Certified
IP65 Certified Projector Screens
Award_winning

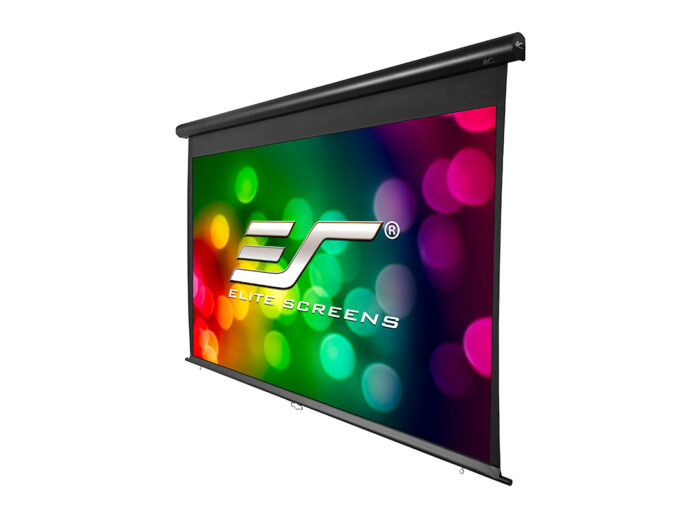

Elite Screens’ Yard Master Manual Series is a non-electric outdoor projection screen that is IP65 certified for rain/water protection. Its retractable design is ideal for wall and patio installations as it brings media room quality in addition to functionality  to your outdoor spaces. It’s sleek enameled weather resistant aluminum casing beautifully accessorizes your backyard, patio, pool deck, or anywhere a gathering for evening movie time is appropriate. The 100-120” models utilize an SRM (slow react mechanism) that prolongs the product’s lifespan and allows the material to rise back up into its casing unassisted. The MaxWhite® projection material is ideal for the outdoors while it provides a wide viewing angle that will accommodate your entire viewing audience. It is also GREENGUARD® (UL2808) certified for safe air quality emissions.

Twice Picks Awards

Where to Buy
Buy Now
SKU: Please select option(s) Categories: , Tags: ,
Product Weight N/A
Overall Dims N/A
Viewing Angle

180°

Screen Material

Gain

1.1

Compatible Projection

Standard "Long" Throw

Material Type

Matte White

YardMaster Manual All-Weather Projection Screen – Customer Testimonial – Downey, CA

YardMaster Manual Indoor/Outdoor Retractable Projection Screen

Screen Material

  • MaxWhite® 1.1 gain (matte white) front projection material with superb color temperature
  • Wide diffusion uniformity allows viewers to enjoy a clear and bright picture from any angle
  • 4K Ultra HD, Active 3D, and HDR Ready
  • Not compatible with Ultra/Short-throw Projectors
  • Black borders absorb projector over scan while enhancing visual contrast
  • Black material backing eliminates light penetration for enhanced brightness levels
  • Available in the following diagonal sizes:
    • 100″ and 120″ in 16:9 format



Design and Installation

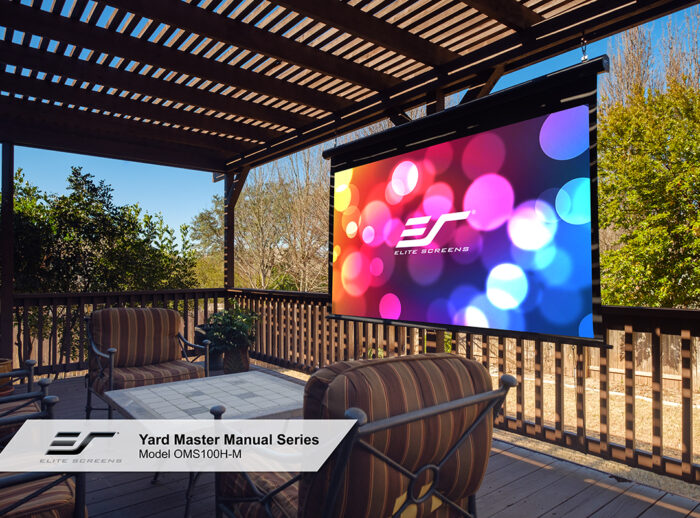

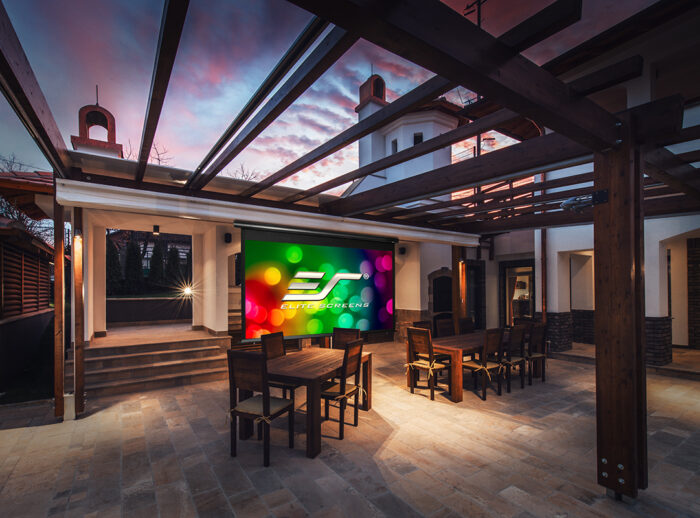

  • Ideal for backyards, patios, pool decks, and recreation rooms
  • IP65 certified for rain/water protection for outdoor applications
  • Acclimated to outdoor use without compromising home theater sophistication.
  • Dynamic indoor home theater quality with outdoor durability

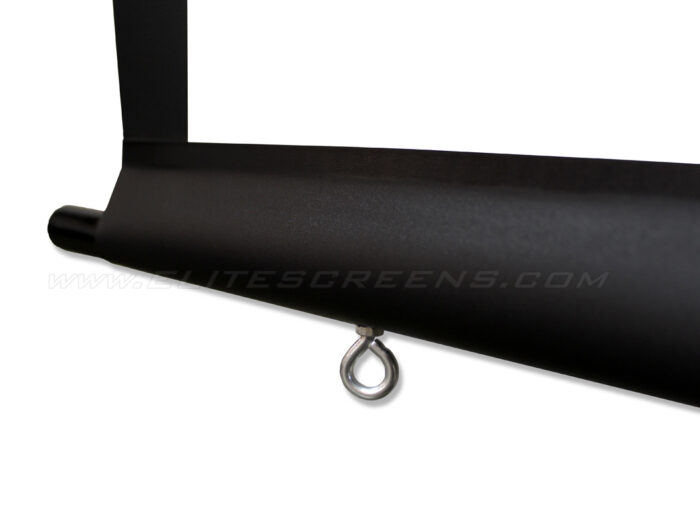

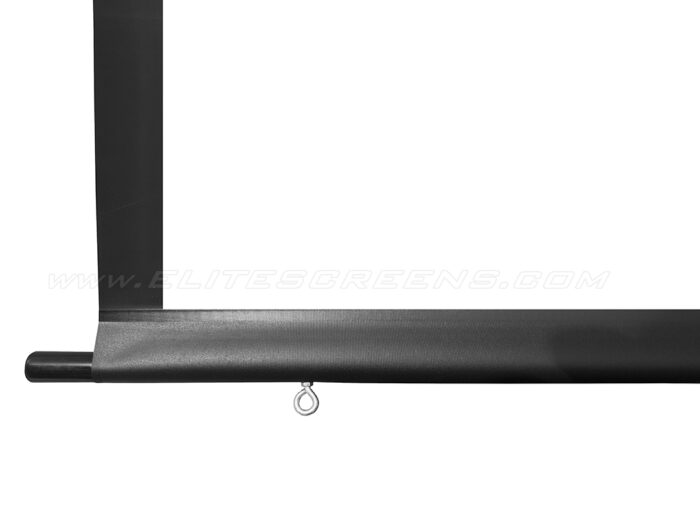

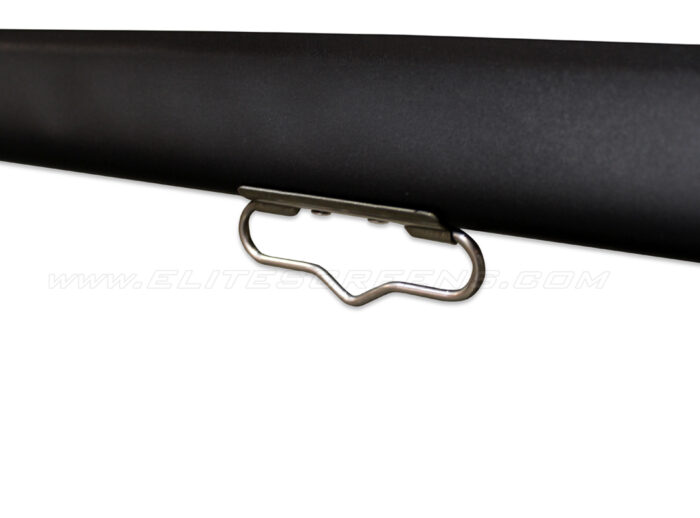

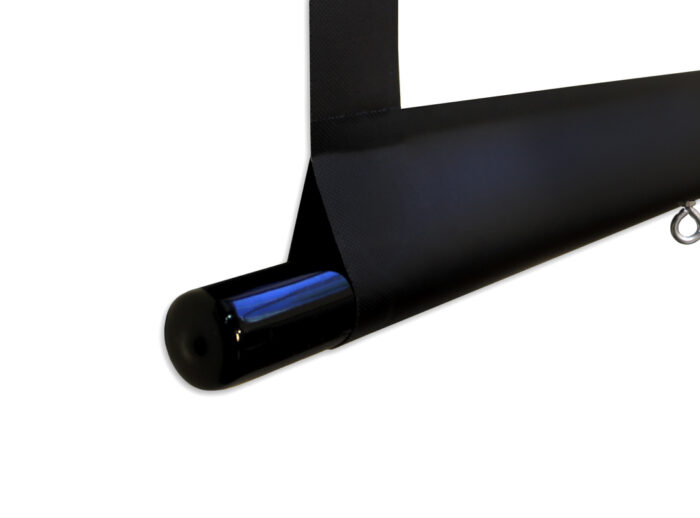

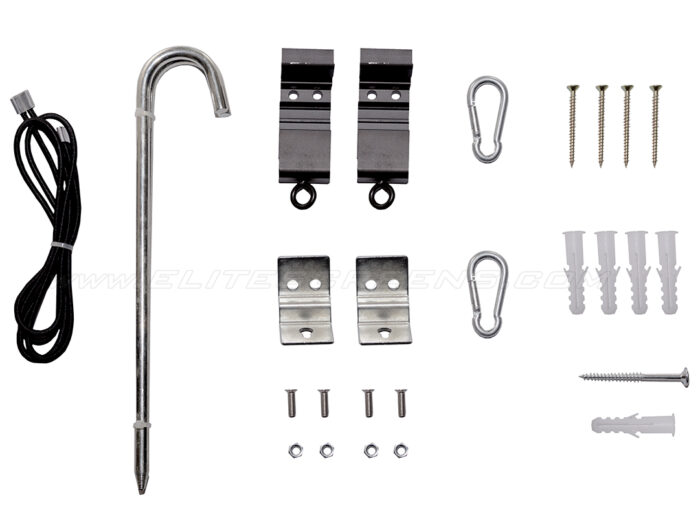

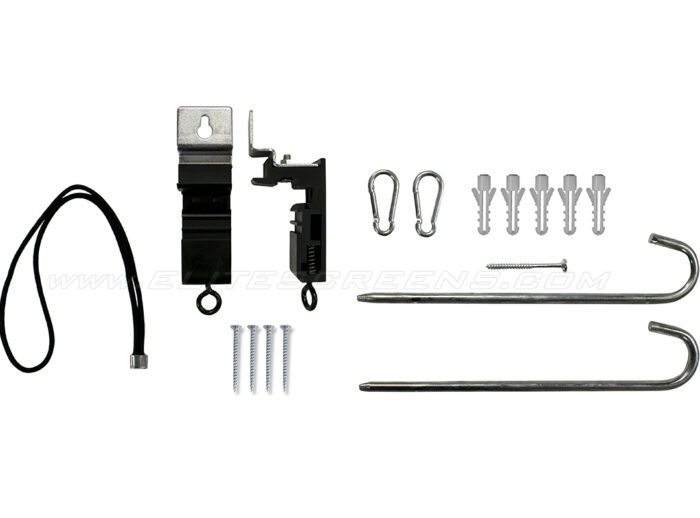

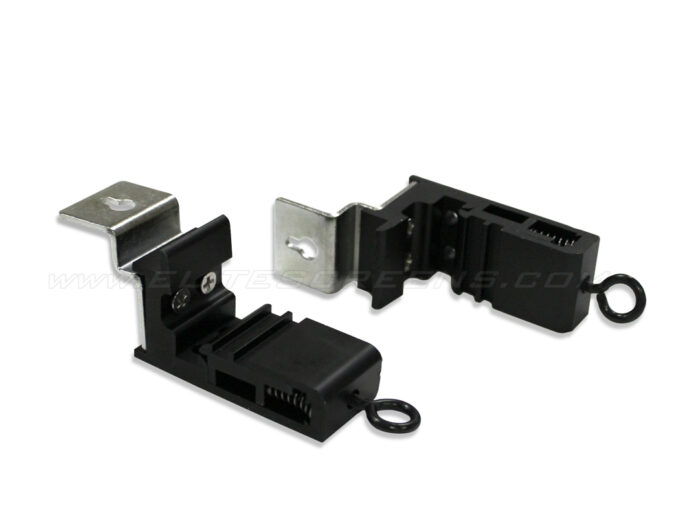

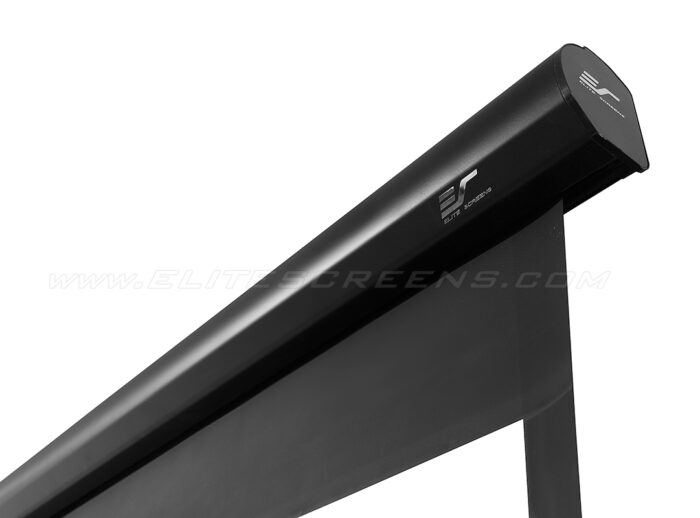

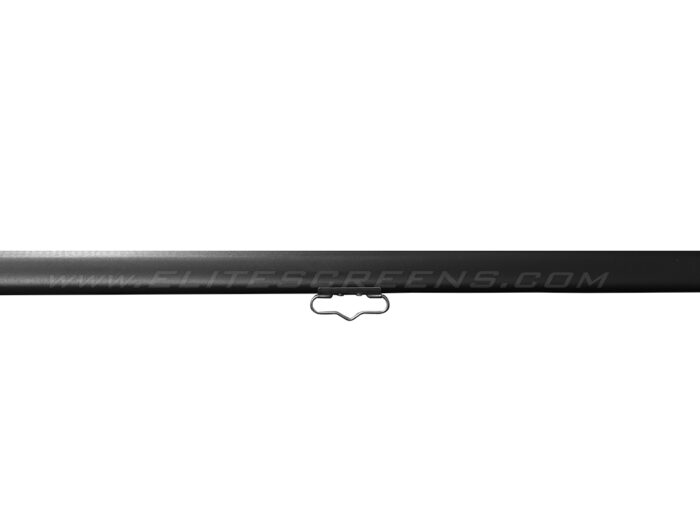

  • Rust-proof metal components – housing, roller tube, brackets, handle, weight bar
  • Slow-retract system on 100-120” models allows hands-free operation during screen retraction



Quality and Reliability

  • GREENGUARD® and GREENGUARD® Gold Certified (UL 2818) for safe indoor emissions
  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

Matte White Materials FAQ's

Q: What is the difference between Elite’s MaxWhite® Fiberglass (FG) and SpectraWhite Fiberglass (FG)? Why is fiberglass backing important?
Q: What is the difference between Elite’s MaxWhite® Fiberglass (FG) and SpectraWhite Fiberglass (FG)? Why is fiberglass backing important?

Elite’s MaxWhite® FG and Spectra White FG are very comparable as they both are self-supporting matte white front projection screen surfaces with fiberglass backing. Having a fiberglass backing is beneficial as the embedded fiber glass improves rigidity which results in a more stiff material. Thus, the fiberglass backing provides the flattest possible surface a non-tensioned screen can offer. Additionally, the fiber glass backing eliminates any side curling non-tensioned materials are susceptible to, especially under cold temperatures. Both the MaxWhite® FG and SpectraWhite FG will provide an excellent quality image in light controlled environments. The main difference between the materials is that the MaxWhite® FG utilizes a more neutral white material for better white levels. Both the Spectra White FG and MaxWhite® FG have viewing angles of 180° (90° left and right). The wide diffusion uniformity on both the materials maintain luminance levels throughout the entire surface. The MaxWhite® FG is also offered on many more of or products, whereas the SpectraWhite FG is solely available on the Starling and Starling Tension. The Spectra White FG material is also slightly thicker than the MaxWhite® FG.

Q: What is the difference between Elite’s MaxWhite® and MaxWhite® FG screen materials?
Q: What is the difference between Elite’s MaxWhite® and MaxWhite® FG screen materials?

Elite Screens’ MaxWhite® and MaxWhite® FG are excellent screen materials for front projection presentations. The materials have a multi-layer weave and textured surface coating that offer perfect diffusion uniformity, color reproduction, and black and white contrast. Both have a 1.1 gain that allows for 180° viewing angles (90° left and right) and are black-backed which avoids light penetration. They are also easy to clean, mildew resistant, and GreenGuard® Gold UL 2818 certified. The key difference between the MaxWhite® and MaxWhite® FG is that the MaxWhite® FG has a fiber glass backing. This is beneficial as the embedded fiber glass improves rigidity which results in a more stiff material. Thus, the MaxWhite® FG provides the flattest possible surface a non-tensioned screen can offer. Additionally, the fiber glass backing eliminates any side curling non-tensioned materials are susceptible to, especially under cold temperatures. Lastly, the MaxWhite® FG is also flame retardant and complies with NFPA 701 Standards.

Q: What is the difference between Tensioned and Non-Tensioned Screen Material?
Q: What is the difference between Tensioned and Non-Tensioned Screen Material?

Tension material provides a flatter screen surface and for better uniformity and even light distribution without waving or curving on the projection surface. These problems could be caused by temperature variations in multiple layer materials. Newer non-tensioned materials such as our MaxWhite® or MaxWhite® FG have greatly reduced occurrences of this flaw to the point of arguably matching its flatness in some cases. Some prefer non-tensioned due to aesthetics but tension still generally has superior flatness.

Q: What is the viewing angle on the MaxWhite® material?
Q. What is the viewing angle on the MaxWhite® material?

The viewing angle of the MaxWhite® material is 180°.

Yard Master Manual Series FAQ’s

Q: How many times do we recommend the Elite Yard Master Portable Projector screen material to be folded so it can be properly stored after each use? Is there a preferred number of folds to reduce the presence of wrinkles?
How many times do we recommend the Elite Yard Master Portable Projector screen material to be folded so it can be properly stored after each use? Is there a preferred number of folds to reduce the presence of wrinkles?

In order to have less memory lines or “wrinkles” from folding, here are a few tips. Don’t fold tightly or try to fold over the material as compact as possible. Both will leave pronounced memory lines. It is recommended to take note of how lightly folded the screen material was when it came from the factory and repeat that whenever you are packing the screen away. Another method when storing the screen is to gently and loosely roll the material and keep it in a safe, dry space at an optimal room temperature.

Q: What is the operating temperature range for my outdoor Yard Master Electric/Manual projector screen?
Q: What is the operating temperature range for my outdoor Yard Master Electric/Manual projector screen?

50° – 104° F (10° – 40° C)

Q: What makes the Yard Master Manual IP65 Certified?
Q: What makes the Yard Master Manual IP65 Certified?

For a quick explanation on the IP65 rating

Browse All FAQ Articles

2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations

Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
