Battery-Operated Outdoor Projection Screen
Yard Master Tab-Tension Wireless Series
The Yard Master Tab-Tension Wireless is a battery-operated outdoor projection screen which eliminates the need for a power cable. It is IPX3 rated for water protection for outdoor applications. The tab-tension design provides uniform tension on all sides for a flat and taut projection surface.
The CineWhite® front projection surface provides excellent brightness uniformity, color reproduction with superb image clarity for nighttime movie presentations.
 |
 |
|---|
| Product Weight | N/A |
|---|---|
| Overall Dims | N/A |
| Viewing Angle | 180° |
| Gain | 1.1 |
| Compatible Projection | Ultra Short Throw, Short Throw, Standard "Long" Throw |
| Material Type | Matte White |
| Screen Material |
Screen Material
- CineWhite® 1.1 Gain matte white flexible front projection material
- Wide viewing angle allows the audience to see a clear, bright, uniform picture from any angle
- Standard 4-side black masking borders absorb projector overshoot while enhancing visual contrast
- Black backing eliminates light penetration for enhanced brightness and color saturation to prevent picture degradation
- Compatible with Standard, Short, and Ultra-Short Throw Projectors
- Compatible with Full HD, Ultra HD (4K/8K) and Active 3D projectors
- ISF Certified for accurate color reproduction – An industry standard for high-fidelity visual display systems
- Available in diagonal size 125″ and 140″ in 16:9 format
Design, Installation and Control System
- Designed for outdoor use without compromising its home theater visual appeal
- Dynamic indoor home theater quality with the durability of an outdoor product

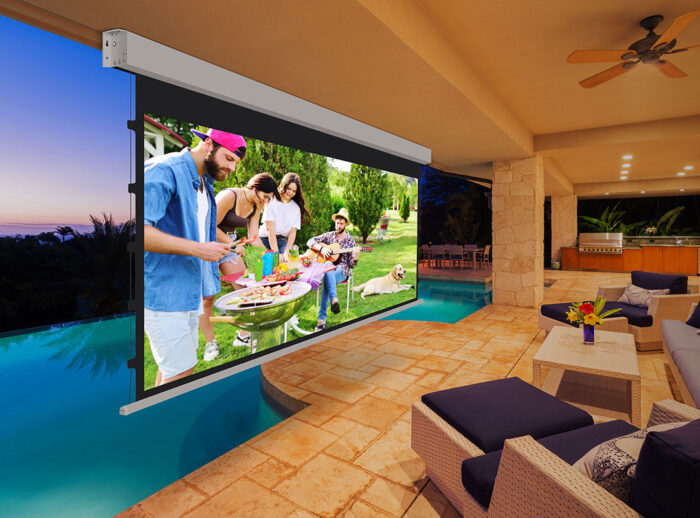

- Ideal for backyards, patios, pool decks, and recreation room installations

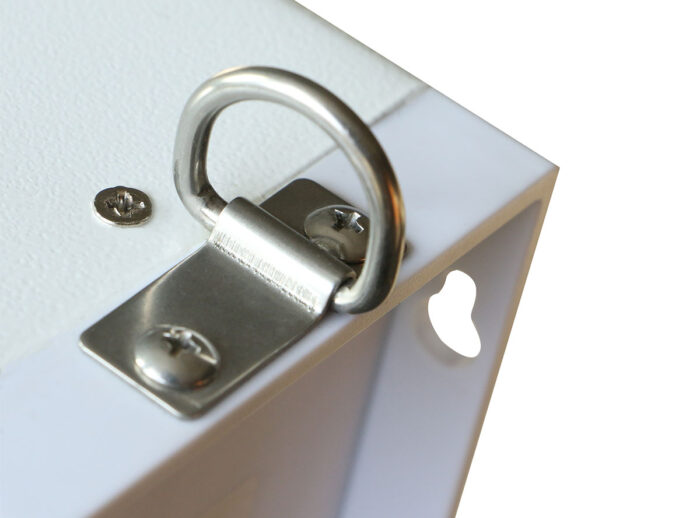

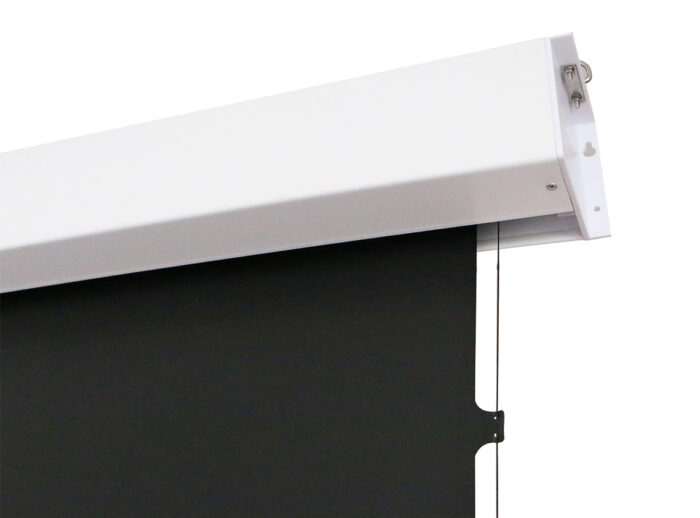

- Heavy-duty steel case in a white finish includes end caps for wall or suspended ceiling installation

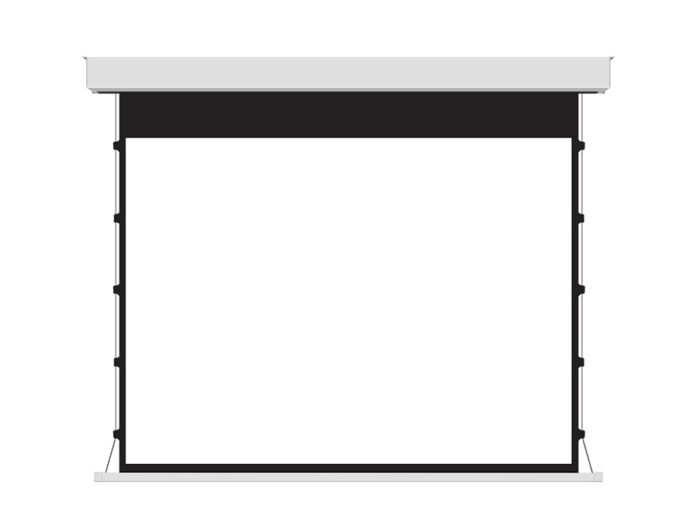

- Tab-tension design provides uniform flatness over the entire projection surface for ripple-free presentations
- Radio Frequency remote for long range operation without line of sight required
- Built-in rechargeable Li-on battery eliminates need to plug screen into a power outlet
- Battery charge can last up to 200 cycles on a single charge
- IPX3 Rated for protection against water spray less than 60 degrees from vertical
Quality and Reliability
- Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
Dimensions Tables
User Guides
Comparison Tables
Others
Yard Master Wireless Series FAQs
The RF remote is not rechargeable and requires one button cell CR2032 battery.
When charging the battery, the light on the charger is RED. The light on the charger will turn GREEN to indicate it is fully charged.
It takes 2 ½ hours to fully charge the battery.
A. When the battery charge is below 10%, the screen will emit a beeping sound when it is in use.
A. The battery can hold its charge for up to 3 months without use.
A fully charged battery will last about the following up/down cycles according to the size.
125” = 200 up/down cycles.
140” = 180 up/down cycles
Q: Can the battery-operated Yard Master Wireless/Yard Master Tab-Tension Wireless be used when it is plugged in to a power outlet?
A: Yes, the Yard Master Wireless/Yard Master Tab-Tension will operate if it is plugged in, but we strongly advise not to do so as it will increase pressure on the battery from overcharging and decrease its life expectancy.
Q: If the battery no longer charges, can the Yard Master Wireless/Yard Master Tab-Tension Wireless still operate with the charger being plugged in?
A: Yes, if the battery no longer charges the Yard Master Wireless/Yard Master Tab-Tension Wireless can continue to operate if it the charge is plugged in to a power outlet.
Matte White Materials FAQ's
Elite’s MaxWhite® FG and Spectra White FG are very comparable as they both are self-supporting matte white front projection screen surfaces with fiberglass backing. Having a fiberglass backing is beneficial as the embedded fiber glass improves rigidity which results in a more stiff material. Thus, the fiberglass backing provides the flattest possible surface a non-tensioned screen can offer. Additionally, the fiber glass backing eliminates any side curling non-tensioned materials are susceptible to, especially under cold temperatures. Both the MaxWhite® FG and SpectraWhite FG will provide an excellent quality image in light controlled environments. The main difference between the materials is that the MaxWhite® FG utilizes a more neutral white material for better white levels. Both the Spectra White FG and MaxWhite® FG have viewing angles of 180° (90° left and right). The wide diffusion uniformity on both the materials maintain luminance levels throughout the entire surface. The MaxWhite® FG is also offered on many more of or products, whereas the SpectraWhite FG is solely available on the Starling and Starling Tension. The Spectra White FG material is also slightly thicker than the MaxWhite® FG.
Elite Screens’ MaxWhite® and MaxWhite® FG are excellent screen materials for front projection presentations. The materials have a multi-layer weave and textured surface coating that offer perfect diffusion uniformity, color reproduction, and black and white contrast. Both have a 1.1 gain that allows for 180° viewing angles (90° left and right) and are black-backed which avoids light penetration. They are also easy to clean, mildew resistant, and GreenGuard® Gold UL 2818 certified. The key difference between the MaxWhite® and MaxWhite® FG is that the MaxWhite® FG has a fiber glass backing. This is beneficial as the embedded fiber glass improves rigidity which results in a more stiff material. Thus, the MaxWhite® FG provides the flattest possible surface a non-tensioned screen can offer. Additionally, the fiber glass backing eliminates any side curling non-tensioned materials are susceptible to, especially under cold temperatures. Lastly, the MaxWhite® FG is also flame retardant and complies with NFPA 701 Standards.
Tension material provides a flatter screen surface and for better uniformity and even light distribution without waving or curving on the projection surface. These problems could be caused by temperature variations in multiple layer materials. Newer non-tensioned materials such as our MaxWhite® or MaxWhite® FG have greatly reduced occurrences of this flaw to the point of arguably matching its flatness in some cases. Some prefer non-tensioned due to aesthetics but tension still generally has superior flatness.
The viewing angle of the MaxWhite® material is 180°.
Lifestyle Gallery
Undoctored image of actual projector presentation
