Golf Impact Projection Material for DIY Projects
GolfSim DIY Screen Series

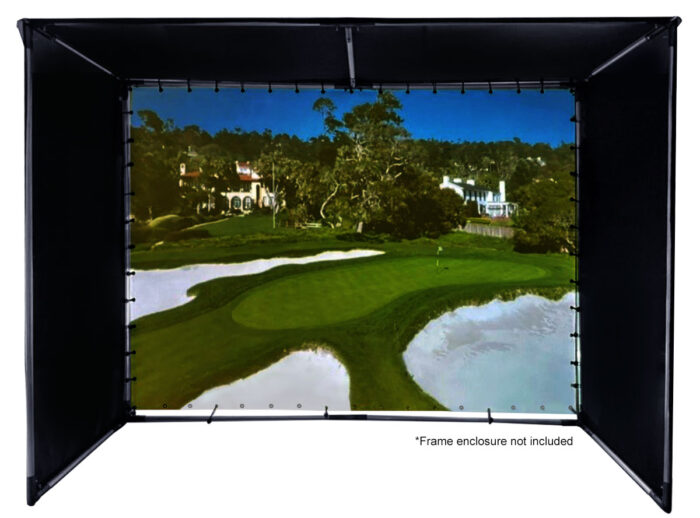

The GolfSim DIY Screen is a golf impact front projection material for golf simulator enclosures. It is a Do-it-Yourself (DIY) design that includes metal grommets all around the entire material to ensure the material is equally tensioned on all sides and perfect for custom frame golf /sport simulation enclosures.
*We consider our impact screens a wearable item and the life of them will vary according to their use. Avoid using golf balls with scuffs or markings to maximize the life of the screen. If possible, use new golf balls. Some creasing may occur but may be removed with a steamer and/or light ironing set to no higher than Polyester.
| Product Weight | N/A |
|---|---|
| Overall Dims | N/A |
| Screen Material | |
| Compatible Projection | Short Throw |
Product Features – ImpactWhite® 1145
The ImpactWhite® 1145 is a multi-layer warp knitted fabric formulated for maximum strength to withstand golf ball impact while providing the highest image quality, and longevity.
Screen Material, Design and Installation
- ImpactWhite® 1145 golf impact front projection material
- ISF Certified for Accurate Color Reproduction
- Resists indentations from golf impact and withstands ball speeds up to 200 mph.
- Withstands up to 1,062 continuous golf ball strikes on same spot at 160 mph
- Average impact rebound less than 1.6 feet

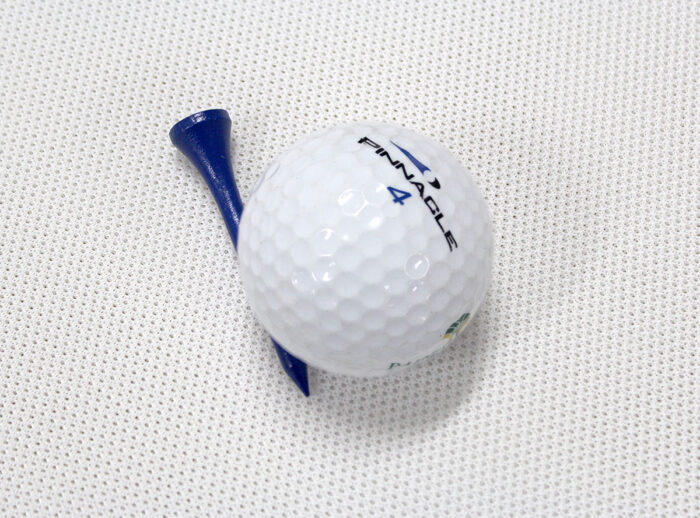

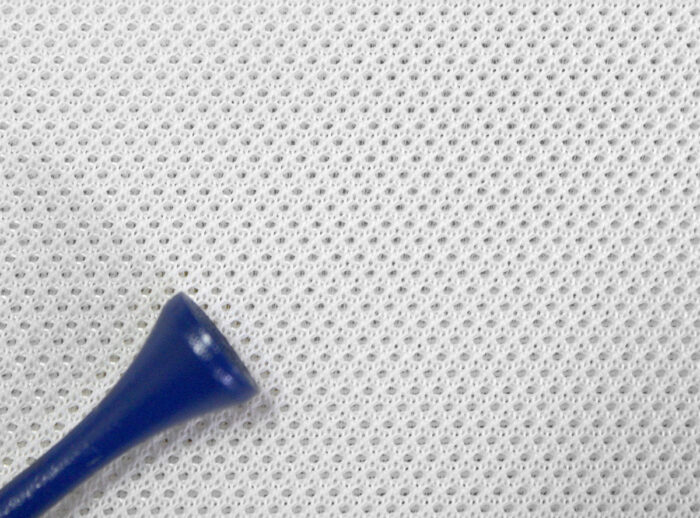

- 4.5 mm warp knitted fabric is comprised of three layers for maximum performance in image quality, shock absorption, and endurance
- Internal spacer suppresses and dampens the noise generated when golf ball impacts screen
- High-strength warp knitted fabric absorbs impact reducing ball bounce back
- Allows a clear and sharp presentation without loss of image fidelity
- Professionally engineered projection surface performs at a theater-grade level

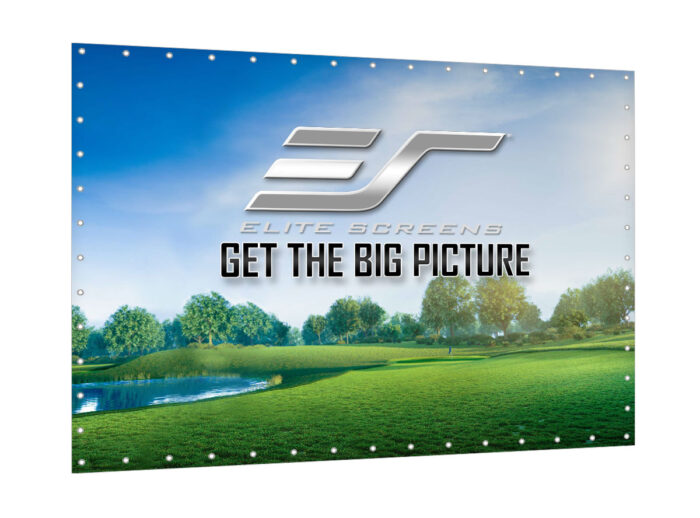

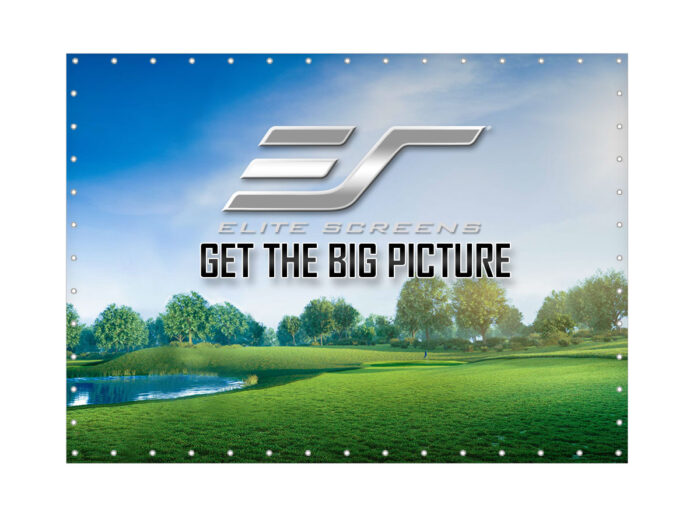

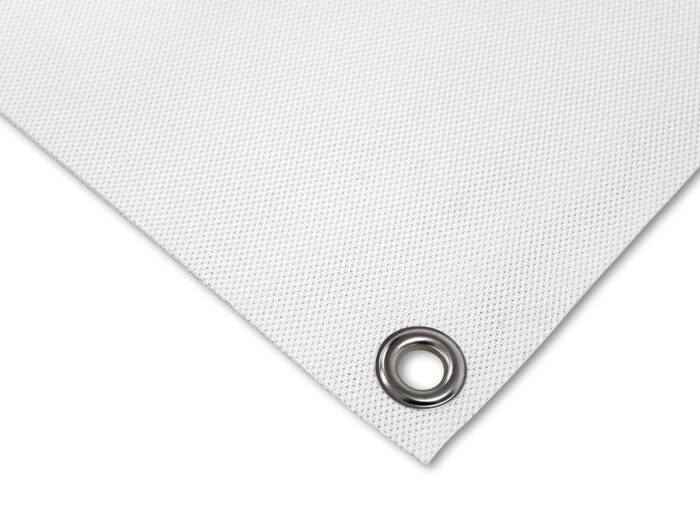

- Metal grommets surround entire material which allows material to be equally tensioned on all sides
- Works best with short throw projectors to avoid casting shadows and sufficient space for golf ball bounce back
- 4K/8K Ultra HD, Active 3D and HDR Ready
- ImpactWhite™ 1145 available in the following sizes:
- 10’ x 8’
- 10’ x 9.8’
- 10’ x 13.1’
- 10’ x 19.6’
Product Features – ImpactWhite® 360
Screen Material, Design and Installation
- ImpactWhite® 360 golf impact front projection screen material
- 1.0 gain with a 180° wide viewing angle allows viewers to see a clear bright uniform picture from any angle
- Resists golf impact and withstands ball speeds up to 200 mph.

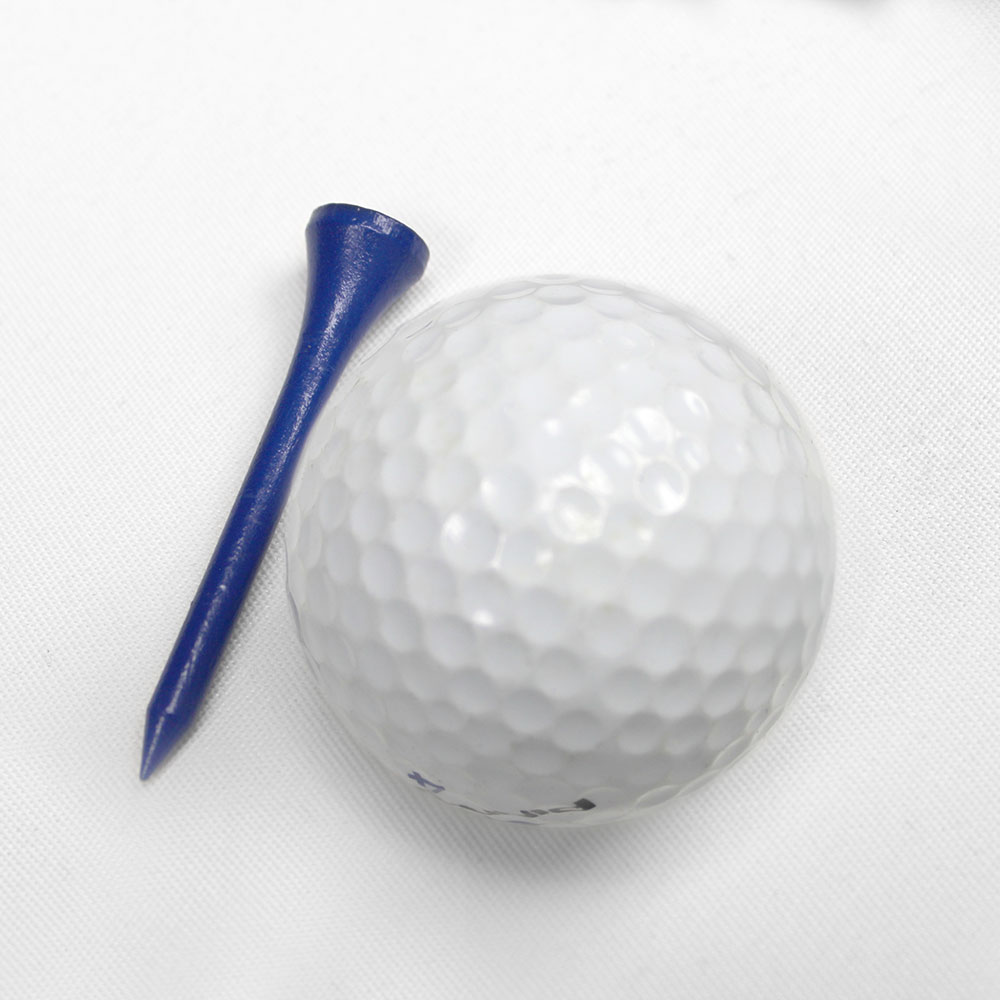

- 1.2 mm tightly woven polyester material offers minimal impact noise and bounce back

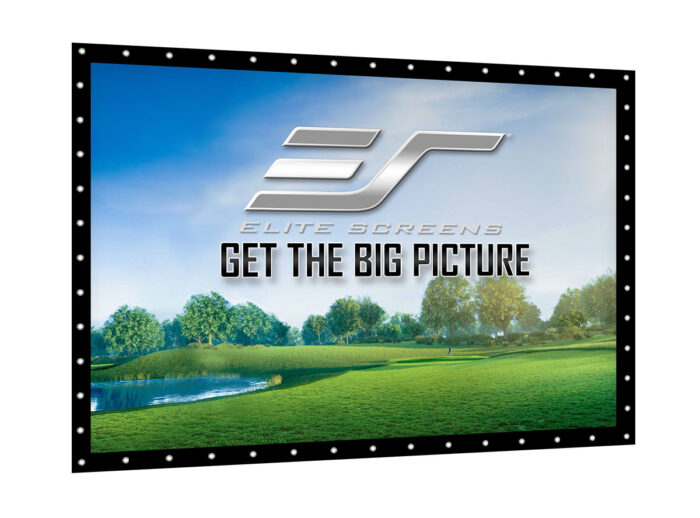

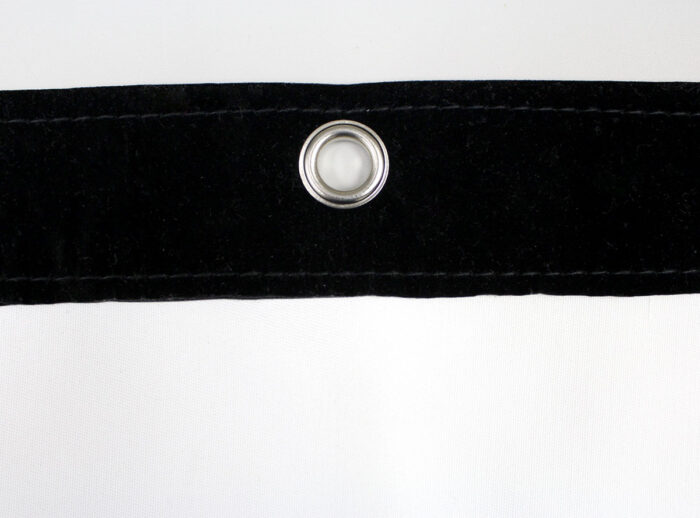

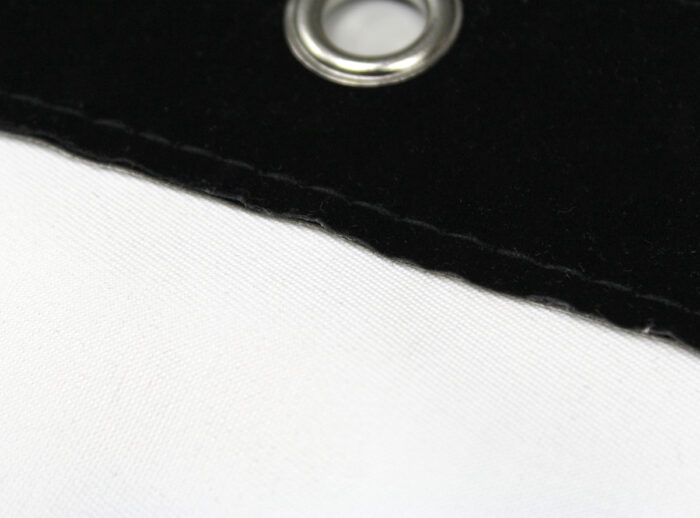

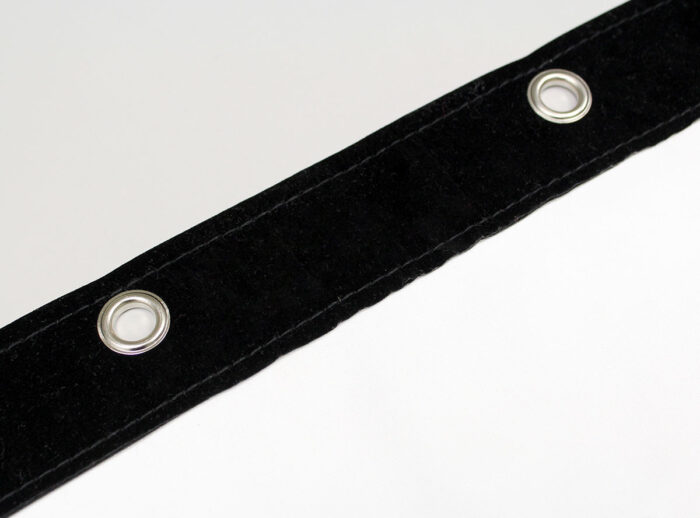

- Metal grommets on a black leatherette velvet border surround entire material which allows material to be equally tensioned on all sides
- Allows a clear and sharp presentation without loss of image fidelity
- Designed to perform to high industry standards for cinema quality presentations
- ISF Certified for accurate color reproduction – An industry standard for high-fidelity video display systems
- Available in the following sizes:
- 9.8′ x 8′
- 9.8′ x 13.1′
- 9.8′ x 9.8′
Quality and Reliability
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
Dimensions Tables
User Guides
Other
A:
• Short-throw projectors are ideal since they can be placed safely away with sufficient distance away from the tee and minimize golf ball impact.
• Ultra-short projectors could get hit with the ball unless they have a protection cover.
• Standard throw projectors can create shadows when in front of the screen.
Q: I’ve had my Golf Screen about 4 months ago, and everything has been going well. Recently, I noticed that there are a few places on the ImpactWhite® screen where the material appears to be compromised. I did not want to create a scenario where a golf ball might penetrate the screen material and potentially cause damage to something behind the screen. Is there a way to repair/reinforce the sections that appear to be compromised? And is this possibly considered normal wear and tear?
A: Elite Screens does not have repair kits for ImpactWhite materials for wear and tear. All our ImpactWhite® screens are considered wearable items and the life of the will vary according to their use. Avoid using golf balls with scuffs (picture below for example) or markings to maximize the life of the screen.
If the ImpactWhite® material is starting to wear and tear from normal impact from a golf ball, we can review the wear and possibly cover it under warranty.
We use the following standard for determining warranty coverage from wear and tear.
• Wear and tear that cannot be seen from the diagonal screen size distance is not deemed to be replaced under warranty.
If the product is hit by a damaged golf ball, it is not considered normal use and no longer covered by the warranty
2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
