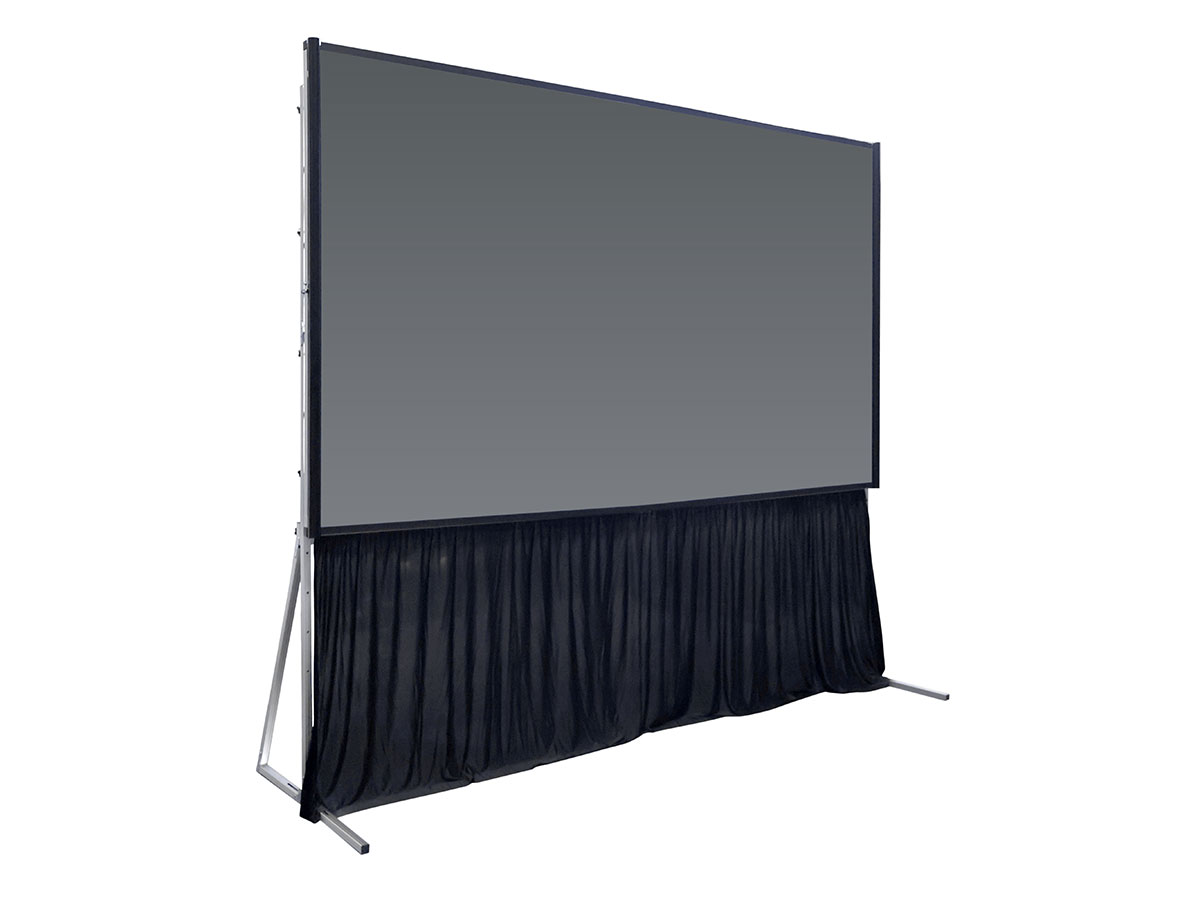

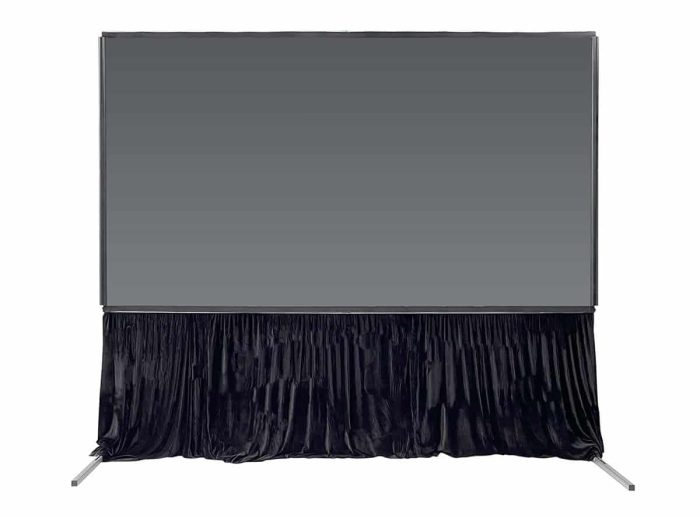

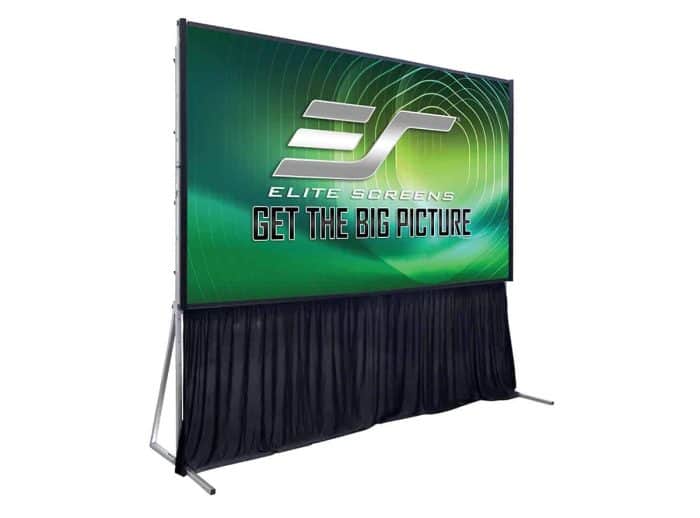

Light-On CLR® 5 Series

Ultra/Short-throw projectors require a flat projection surface since the projector’s light is closer to the material.  Non-tensioned screen materials may exhibit minor wave or curls which may be more pronounced if using an ultra/short-throw projector.   We recommend using a Fixed Frame Screen or a Tab-Tension screen with PVC such as our CineWhite® flexible material which will provide adequate tension throughout the entire projection surface. Please click here to learn more about the CineWhite® screen material. Our Aeon CLR®, EDGE FREE® Fixed Frame is recommended for table-top ultra-short throw projectors in an ambient light room environment. Please click here to learn more about the Aeon CLR®.

Elite’s non-tensioned screens are great with standard throw projectors, but just like any non-tensioned projector screen, we don’t recommend using it with an ultra/short throw projector.  Non-tensioned screens are not completely flat and while it may have little, if any, perceivable effect with a standard projector’s image, it can distort ultra/short throw imagery. We recommend purchasing Elite’s tab-tensioned screens utilizing the CineWhite® or CineWhite® UHD materials or any of Elite’s fixed frame screens if an ultra/short throw projector is required.

Elite Screens offers many options for ultra-short throw projectors. It is important that you select a projection screen surface that is pliable and can be stretched/tensioned to achieve a flat projection ripple-free image. We recommend a fixed frame or tab-tensioned screen with any of our CineWhite® (controlled room light required for best results) variant of materials and StarBright CLR® for ceiling ambient light rejecting technology.

Most ultra-short throw projectors despite claiming they can go up to a certain size, if they have a focus adjustment should be able to adjust the picture to 103” (if a 100” UST projector) or 123” (if a 120” UST projector) and fill in the entire screen area. In some cases, certain UST projectors that have a fixed focus lens can go up to 103” and 123” with minimal impact on the picture and allowing to fill in the screen size.

Ceiling mounted UST projector will not work with CLR®/ CLR® 2/ CLR® 3 flipped upside down because the material is specifically oriented to reject “absorb” lighting from above. In addition it is designed to properly accept tabletop mounted UST projector light and direct it to the viewer’s sweet spot. If the material is flipped upside down and there is overhead light, that light will not be rejected but instead reflected which would degrade the picture quality. In addition, the ceiling mounted UST projector light will still not likely align properly with the human eye to deliver the ideal “sweet-spot” picture performance.

CLR®/CLR®2/CLR®3 and CineGrey 3D/5D are Ceiling Ambient Light Rejection Screen fabrics, however the CLR fabrics are especially designed for Ultra Short Throw (UST) Projectors to reject ambient light. The CineGrey 3D/5D are typically made for standard “long-throw” projectors and require the projected light (angle in) to reflect (angle out) at the same angle to the viewer’s eyes, “sweet spot”.

Ceiling mounted UST projectors will not even work with Starbright CLR® materials because the material is specifically orientated to reject “ceiling light” or any type of lighting from above. This means that the screen will reject any overhead light, even from a compatible projector. Theoretically, you could invert the Starbright CLR® material to match with an inverted UST projector but the alignment will still not likely align properly with the human eye to deliver the ideal “sweet-spot” picture performance.
