Portable ALR / CLR Projection Screen
Light-On CLR® 3 Series

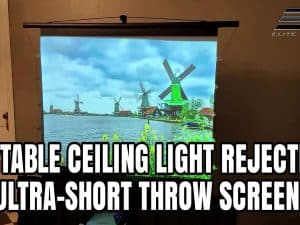

The Light-On CLR® 3 series is a category of Ceiling Light Rejecting (CLR®) solutions designed to work only with Portable Ultra Short Throw Projectors that combat the wash out effect in bright ceiling light rooms such as classrooms or living rooms. The portable products are available in a 55” (4:3) tripod and 60” (16:9) folding-frame variant.
Matte white screens are not meant to be used in rooms where light cannot be controlled. The projected images lose detail and contrast rendering the presentation unwatchable.
The portable Light-ON CLR® 3 series use our innovative micro structured front projection material that is designed to absorb overhead light which results in retaining a contrast rich image.
| Product Weight | N/A |
|---|---|
| Overall Dims | N/A |
| Viewing Angle | 170° |
| Gain | 0.8 |
| Screen Material | |
| Compatible Projection | Ultra Short Throw |
| Material Type | Ambient Light Rejecting (ALR/CLR®), Silver & Grey |
Screen Material
- CLR® 3 Ceiling Ambient Light Rejecting material absorbs up to 90% of overhead lighting
- Wide viewing angle allows viewers to see a bright uniform picture from any angle
- 80x contrast improvement over matte white under ambient light room conditions
- Micro-serriform optical structure filters out ambient light that produces contrast rich images
- Compatible only with tabletop mounted ultra-short throw projectors
- Project within a short distance without shadowing the picture
- Black-backing (non-opaque) enhances image brightness
Projector Screens Design

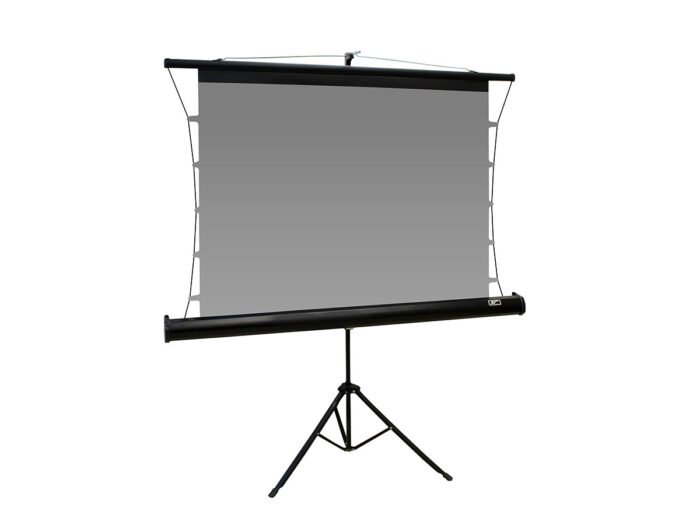

- 55” Diagonal Tripod

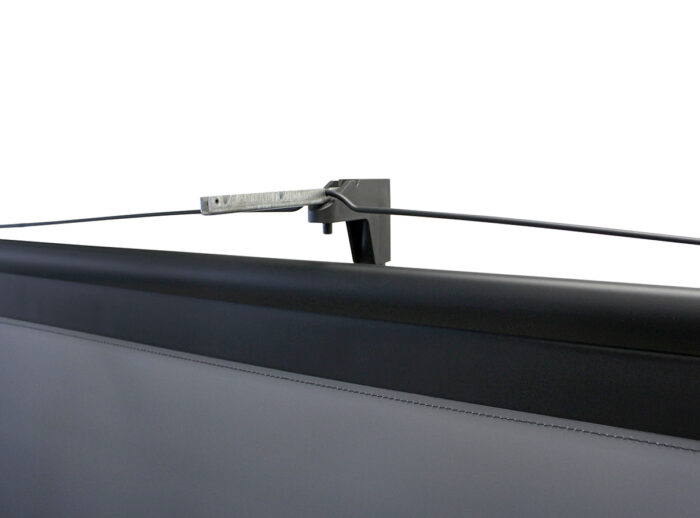

- Pull-up retractable design includes keystone eliminator

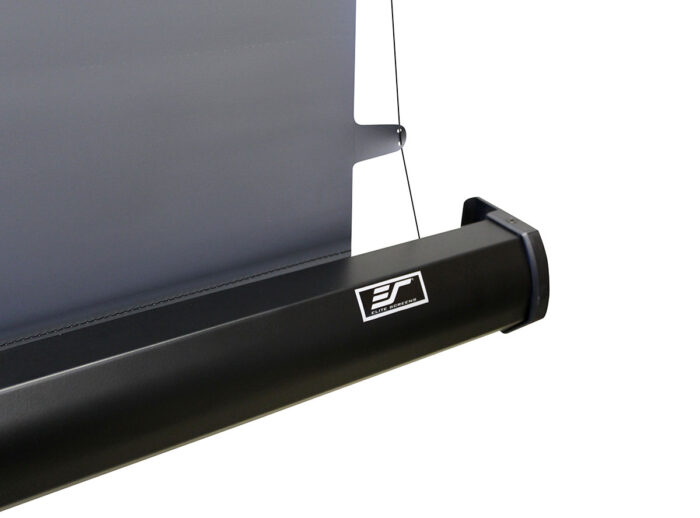

- Lightweight black housing includes carrying bag for protection and storage

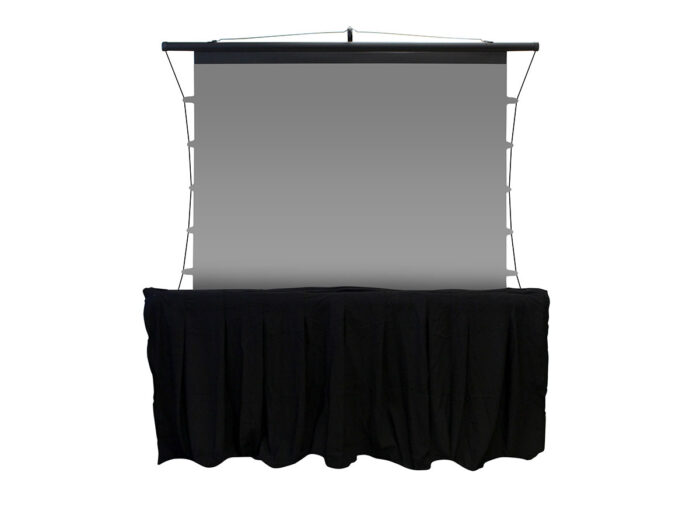

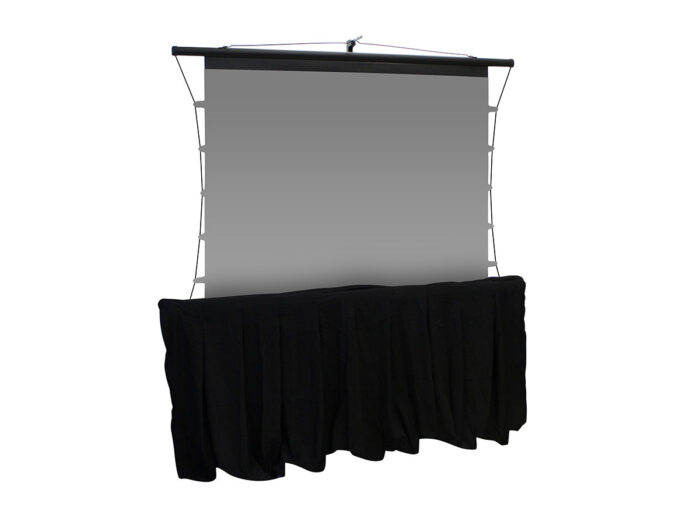

- Black tripod skirt included provides an elegant and professional presentation

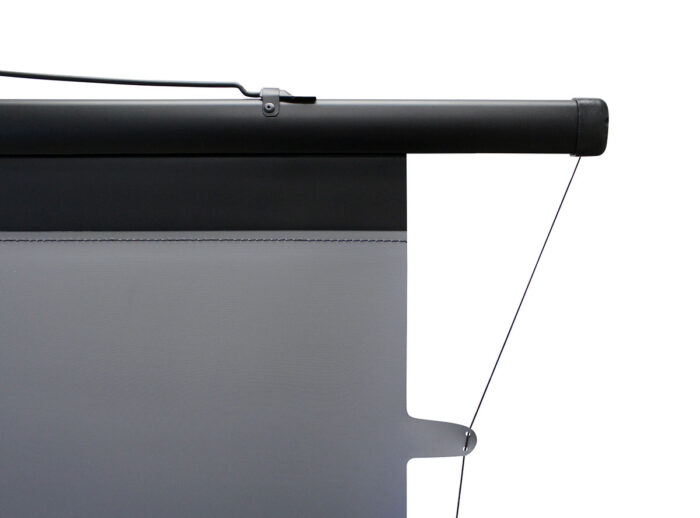

- Tab-tension design provides a flat and taut projection surface
- Top/Bottom black masking borders absorb projector overshoot and enhances picture contrast
- Carrying bag included for easy transportation, protection and storage

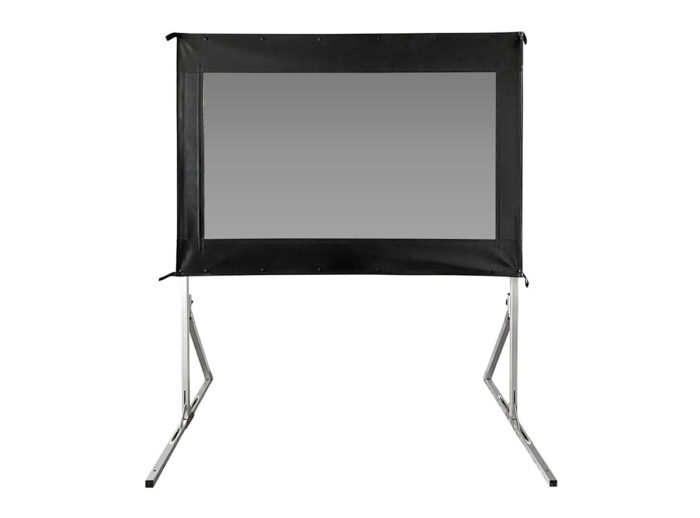

- 60″ Diagonal Folding-Frame
- Collapsible folding-frame design assembles effortlessly
- Material stretches on frame using corner pull-tabs with snap buttons
- Adjustable legs accommodate various height settings
- Back brace support on legs for improved stability
- Padded carrying bag fits entire product for protection and portability
- 4-sided black masking borders absorb projector overshot and enhances picture contrast
Quality and Reliability
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
Dimensions Tables
- Dimensions Table (PDF) – Tripod
- Dimensions Table (PDF) – Folding Frame
User Guides
- User Guide – Z Type (Tripod Tab-Tension Model# TT55V-CLR3) (PDF)
- User Guide – Z Type (Folding Frame Model) (PDF)
Comparison Tables
- Portable Screens Comparison (PDF)
- CLR®/ALR Materials Comparison
- Portable ALR/CLR Screens Comparison (PDF)
Others
Please click here for installation tip (PDF)
Ceiling mounted UST projector will not work with CLR®/ CLR® 2/ CLR® 3 flipped upside down because the material is specifically oriented to reject “absorb” lighting from above. In addition it is designed to properly accept tabletop mounted UST projector light and direct it to the viewer’s sweet spot. If the material is flipped upside down and there is overhead light, that light will not be rejected but instead reflected which would degrade the picture quality. In addition, the ceiling mounted UST projector light will still not likely align properly with the human eye to deliver the ideal “sweet-spot” picture performance.
Click Here for Instructions
CLR®/CLR®2/CLR®3 and CineGrey 3D/5D are Ceiling Ambient Light Rejection Screen fabrics, however the CLR fabrics are especially designed for Ultra Short Throw (UST) Projectors to reject ambient light. The CineGrey 3D/5D are typically made for standard “long-throw” projectors and require the projected light (angle in) to reflect (angle out) at the same angle to the viewer’s eyes, “sweet spot”.
Ceiling mounted UST projectors will not even work with Starbright CLR® materials because the material is specifically orientated to reject “ceiling light” or any type of lighting from above. This means that the screen will reject any overhead light, even from a compatible projector. Theoretically, you could invert the Starbright CLR® material to match with an inverted UST projector but the alignment will still not likely align properly with the human eye to deliver the ideal “sweet-spot” picture performance.
Most ultra-short throw projectors despite claiming they can go up to a certain size, if they have a focus adjustment should be able to adjust the picture to 103” (if a 100” UST projector) or 123” (if a 120” UST projector) and fill in the entire screen area. In some cases, certain UST projectors that have a fixed focus lens can go up to 103” and 123” with minimal impact on the picture and allowing to fill in the screen size.
The steep light from an Ultra-Short Throw projector causes the halo effect and can spill light around the frame. There is no way to solve it, but it can be mitigated by painting your wall a darker color, or putting a velvet border around the screen frame.
Lifestyle Gallery

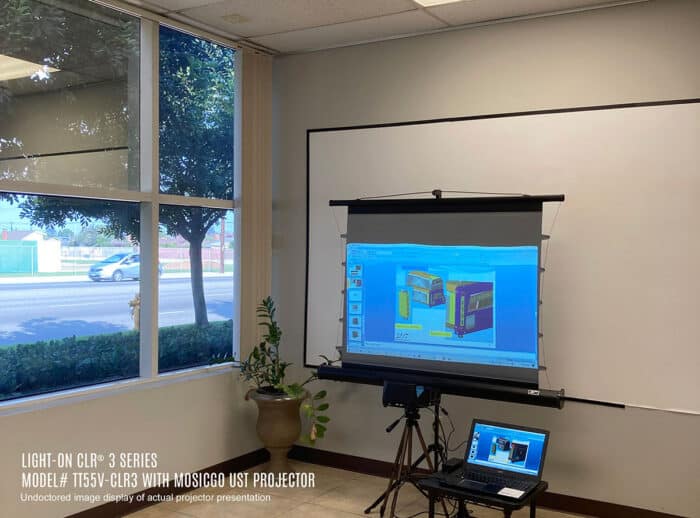

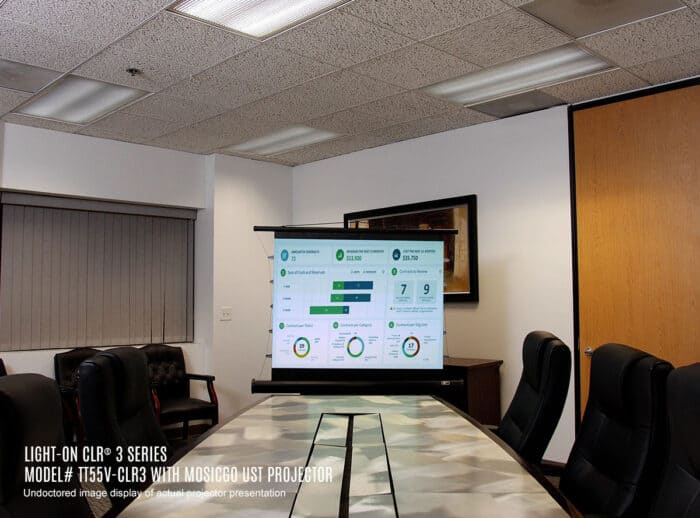

Undoctored image of actual projector presentation
