Ceiling Ambient Light Rejecting Projection Screen

Aeon CLR® 3 Series

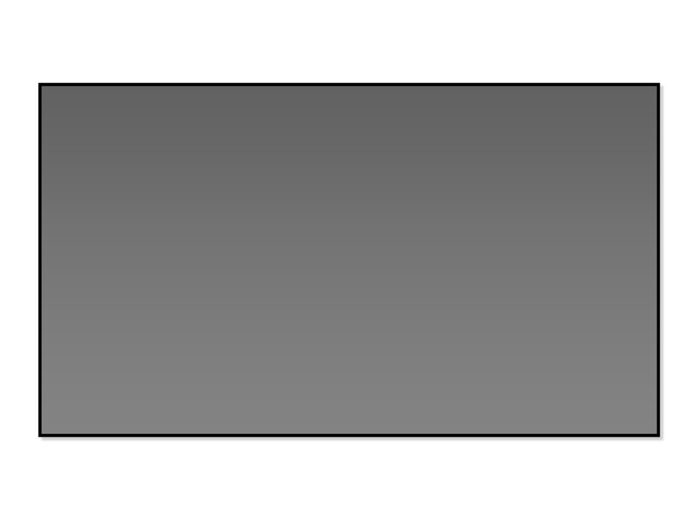

The Aeon CLR® 3 is an EDGE FREE® fixed frame screen that utilizes our CLR® 3 (Ceiling Light Rejecting®) material. Its serriform optical surface lens microstructure negates the washout effect of ambient light especially from overhead sources. This also enables the material to provide contrast levels that are 75 times greater than that of standard matte white projection screens.

CLR® 3 is specifically designed for ultra-short-throw projectors to provide a large-screen performance in the close quarters of most residential or training room environments. CLR® 3 offers a wide viewing angle, neutral color temperature, and enhanced picture contrast in a theater-grade image.

EDGE FREE® means there is an internal framework with wraparound material bordered with an ultra-thin bezel. The screen uses a Ceiling Light Rejection® technology.

How to properly unpack or unroll Elite Screens Ceiling Ambient Light Rejecting CLR® materials

Aeon CLR® 3 – Ceiling Ambient Light Rejecting EDGE FREE Fixed Frame Screen

Phil Jones from Projector Reviews Evaluates the Elite Screens Aeon CLR® 3 Series

JoelsterG4K Covers Elite Screens Ceiling Light Rejecting (CLR®) Materials – CLR®, CLR® 2 and CLR® 3

Spare Change Reviews the Elite Screens Aeon CLR® 3

EBPMan Reviews Elite Screens Aeon CLR® 3 Series

Aeon CLR® 3 at Design Center Furniture Testimonial

Aeon CLR® 3 Testimonial

What are the benefits of using a Ceiling Ambient Light Rejecting UST material vs. a Flat Panel TV

Screen Material

  • CLR® 3 (Ceiling Light Rejecting) material absorbs 90% of overhead lighting
  • Improves color saturation and black levels under ambient light conditions

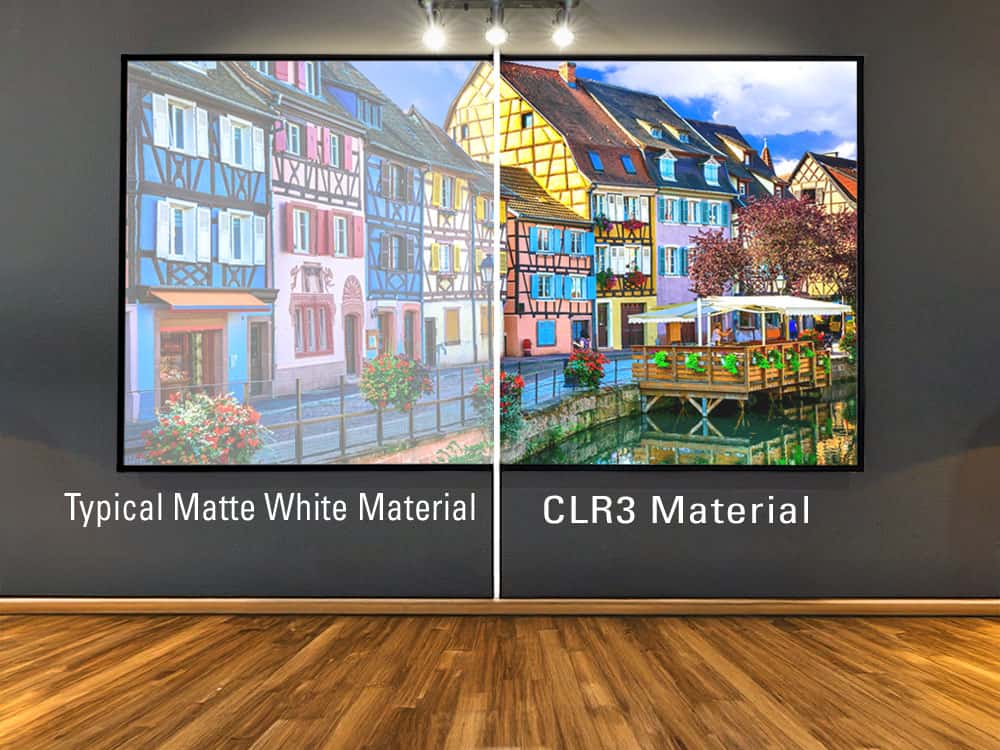

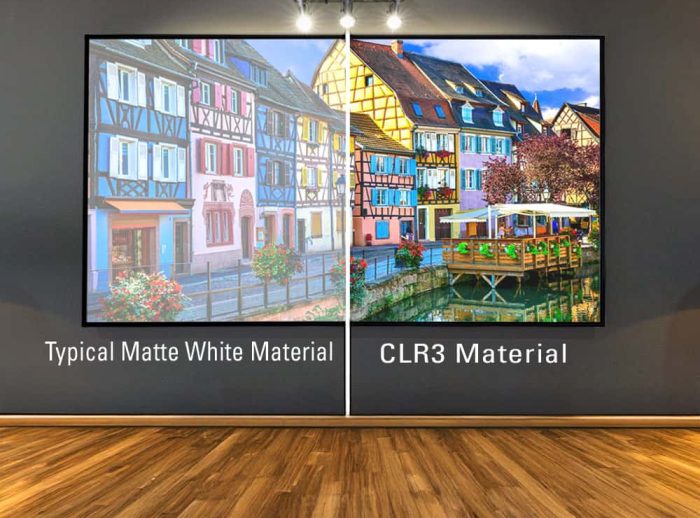

  • 75x contrast improvement over standard matte white screens in ambient light room environments
  • Project from a short distance without shadowing the picture
  • 170° viewing angle (85° L/R) – Allows viewers to spread out while maintaining brightness uniformity
  • Black-backing (non-opaque) enhances image brightness

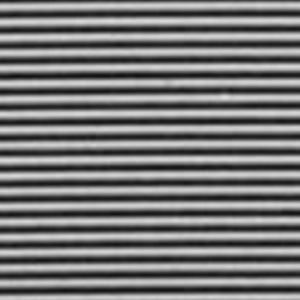

  • Micro-serriform optical structure filters out ceiling light for superior picture quality
  • 4K/8K Ultra HD, HDR Ready

Design and Installation

  • Sleek EDGE FREE® Fixed Frame resembles a flat panel TV

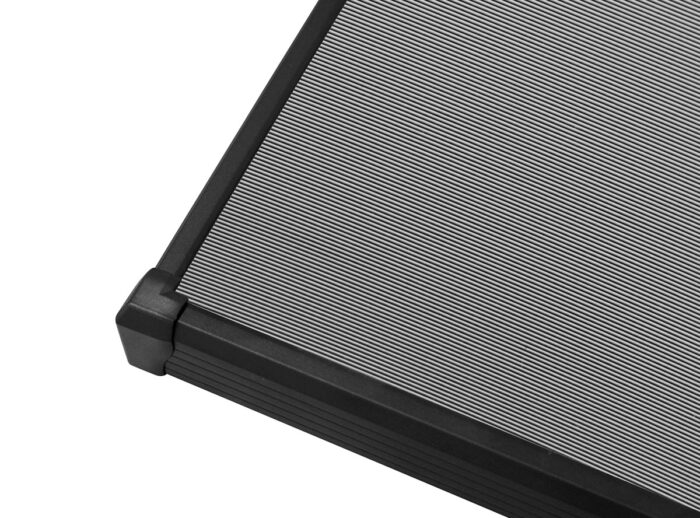

  • Lightweight aluminum split-frame design
  • Wraparound design maximizes viewing area and reduces overall footprint

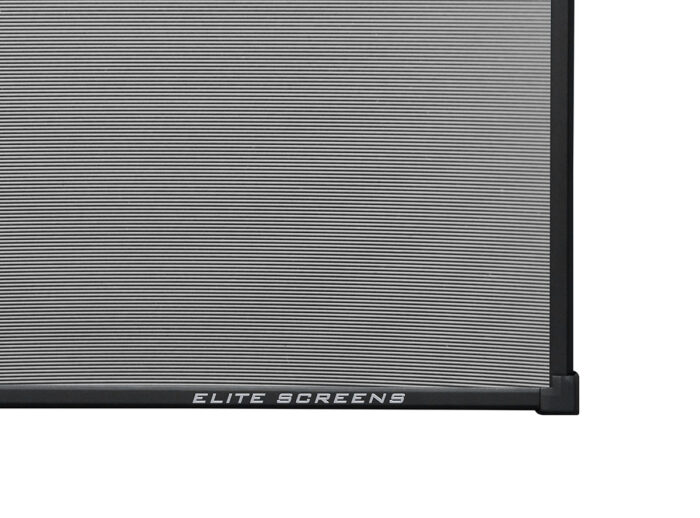

  • Ultra-thin black bezel trim
  • LED Backlight kit included
  • Project within a short distance without shadowing the picture
  • Designed for table-top ultra-short throw projectors

Quality and Reliability

  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

Please click here for installation tip (PDF)

Choosing The Right Sized Projection Screen

Selecting the Right Elite Screens Screen Material For Your Home Theater

Understanding ANSI Lumens & Screen Gain

Understanding Aspect Ratio & Resolution

4K/UltraHD: What You Need To Know

GreenGuard® Certification – Improving Human Health and Quality of Life

Projection Screen to HDTV Comparison

How To Perfectly Install ANY Projection Screen

The Right Projection Screen for UST Projectors

Ceiling and Ambient Light Rejecting (CLR/ALR) Projection Screen Setup Guide

Aeon Series FAQ’s

Q: I am assembling the Aeon Fixed Frame screen and do not see a hole for the center support however there is a center support bar included. How do I attach my center support bar?
Q: I am assembling the Aeon Fixed Frame screen and do not see a hole for the center support however there is a center support bar included. How do I attach my center support bar?

There is a hex screw that must first be inserted on the back channel of the bottom and top frames. Then, the center support bar attaches to the hex screw.

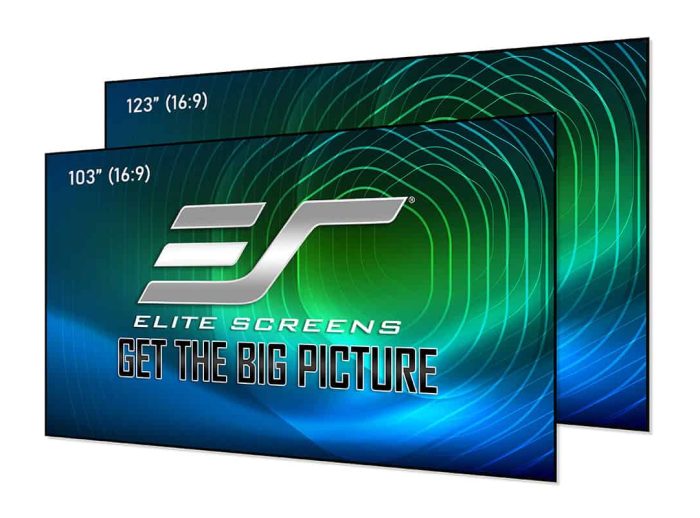

Q: I’d like to buy an Aeon CLR® 3 screen but my UST projector is 120 inches. I notice that your screens are oversized by a few inches such as 103” versus 100” or 123” vs 120”. In my case for example, I do not want an empty screen section, but the image to go all the way to the border of the screen. Can you advise?
Q: I’d like to buy an Aeon CLR® 3 screen but my UST projector is 120 inches. I notice that your screens are oversized by a few inches such as 103” versus 100” or 123” vs 120”. In my case for example, I do not want an empty screen section, but the image to go all the way to the border of the screen. Can you advise?

Most ultra-short throw projectors despite claiming they can go up to a certain size, if they have a focus adjustment should be able to adjust the picture to 103” (if a 100” UST projector) or 123” (if a 120” UST projector) and fill in the entire screen area. In some cases, certain UST projectors that have a fixed focus lens can go up to 103” and 123” with minimal impact on the picture and allowing to fill in the screen size.

Q: What are the model numbers for replacement screen material for my fixed frame screen?
Q. What are the model numbers for replacement screen material for my fixed frame screen?

Elite Screens offers replacement materials for 4:3, 16:9, and 2.35:1 fixed frame screens.

Decoding the model number: ZR92WH1-M

ZR- Sable Frame / ezFrame Series Replacement Material
92= Diagonal Size of 92″
W= CineWhite
H= 16:9 Aspect Ratio (V= 4:3, Wide= 2.35:1)
-M = Screen Type

ZAR : Aeon Series Replacement Material
Z-SBSF : Sable Frame B2 Series Replacement Material

Shop links : Sable Frame / ezFrame Series Materials, Aeon Series Materials, Sable Frame B2 Series Materials

CLR® 3 – Screen Material FAQ’s

Q: I plan to purchase a CLR®/ CLR®2/ CLR® 3 material, but want to use a ceiling mounted UST projector. Can I flip and install the CLR/CLR2/CLR3 upside down to make this work?
Q: I plan to purchase a CLR®/ CLR®2/ CLR® 3 material, but want to use a ceiling mounted UST projector. Can I flip and install the CLR/CLR2/CLR3 upside down to make this work?

Ceiling mounted UST projector will not work with CLR®/ CLR® 2/ CLR® 3 flipped upside down because the material is specifically oriented to reject “absorb” lighting from above. In addition it is designed to properly accept tabletop mounted UST projector light and direct it to the viewer’s sweet spot. If the material is flipped upside down and there is overhead light, that light will not be rejected but instead reflected which would degrade the picture quality. In addition, the ceiling mounted UST projector light will still not likely align properly with the human eye to deliver the ideal “sweet-spot” picture performance.

Q: How do I determine the direction of the CLR/CLR 2/CLR 3/ CLR 4 materials??
Q: How do I determine the direction of the CLR/CLR 2/CLR 3/ CLR 4 materials??

Click Here for Instructions

Q: I have a new UST projector in my multi-purpose room with very good light control. Considering to buy a StarBright CLR®/CLR® 2/CLR® 3 or CineGrey 3D/5D® screen. What is the difference?
Q: I have a new UST projector in my multi-purpose room with very good light control. Considering to buy a StarBright CLR®/CLR® 2/CLR® 3 or CineGrey 3D/5D® screen. What is the difference?

CLR®/CLR®2/CLR®3 and CineGrey 3D/5D are Ceiling Ambient Light Rejection Screen fabrics, however the CLR fabrics are especially designed for Ultra Short Throw (UST) Projectors to reject ambient light. The CineGrey 3D/5D are typically made for standard “long-throw” projectors and require the projected light (angle in) to reflect (angle out) at the same angle to the viewer’s eyes, “sweet spot”.

Q: How about using any “CLR/ALR” (Cinegrey®3D/5D or Starbright CLR®/CLR® 2/CLR® 3) with a ceiling-installed UST/ST projector?
Q: How about using any “CLR/ALR” (Cinegrey®3D/5D or Starbright CLR®/CLR® 2/CLR® 3) with a ceiling-installed UST/ST projector?

Ceiling mounted UST projectors will not even work with Starbright CLR® materials because the material is specifically orientated to reject “ceiling light” or any type of lighting from above. This means that the screen will reject any overhead light, even from a compatible projector. Theoretically, you could invert the Starbright CLR® material to match with an inverted UST projector but the alignment will still not likely align properly with the human eye to deliver the ideal “sweet-spot” picture performance.

Q: I’d like to buy an Aeon CLR® 3 screen but my UST projector is 120 inches. I notice that your screens are oversized by a few inches such as 103” versus 100” or 123” vs 120”. In my case for example, I do not want an empty screen section, but the image to go all the way to the border of the screen. Can you advise?
Q: I’d like to buy an Aeon CLR® 3 screen but my UST projector is 120 inches. I notice that your screens are oversized by a few inches such as 103” versus 100” or 123” vs 120”. In my case for example, I do not want an empty screen section, but the image to go all the way to the border of the screen. Can you advise?

Most ultra-short throw projectors despite claiming they can go up to a certain size, if they have a focus adjustment should be able to adjust the picture to 103” (if a 100” UST projector) or 123” (if a 120” UST projector) and fill in the entire screen area. In some cases, certain UST projectors that have a fixed focus lens can go up to 103” and 123” with minimal impact on the picture and allowing to fill in the screen size.

Q: I own an Aeon CLR/CLR2/CLR 3 fixed frame screen and notice a halo effect/light spill around the UST screen. How can I remedy this?
Q: I own an Aeon CLR/CLR2/CLR 3 fixed frame screen and notice a halo effect/light spill around the UST screen. How can I remedy this?

The steep light from an Ultra-Short Throw projector causes the halo effect and can spill light around the frame. There is no way to solve it, but it can be mitigated by painting your wall a darker color, or putting a velvet border around the screen frame.

General Fixed Frame Screens FAQ’s

Q: What is the advantage of having a black velvet covered frame?
Q. What is the advantage of having a black velvet covered frame?

In addition to an appealing aesthetic appearance, the advantage of having a black velvet covered frame is to help absorb projector overshoot.

Q: Where do I place the center support bar for a fixed frame screen?
Q: Where do I place the center support bar for a fixed frame screen?

Center support bar for larger size fixed frame screens goes inside the top of the groove located on the back of the frame.

Q : Can I flush mount my fixed frame screen directly to the wall/ceiling? I would like the top of the frame to be exactly where the ceiling and wall meet.
Q : Can I flush mount my fixed frame screen directly to the wall/ceiling? I would like the top of the frame to be exactly where the ceiling and wall meet.

Elite Screens does not recommend attempting such an installation as in most cases it would not be possible. This is because the frame has to be lifted directly above and then placed down onto the brackets. The brackets will then latch onto the grooves of the frame and hold it in place. Mounting the wall brackets flush to the wall and ceiling would not provide the clearance needed for the frame to be lifted above the brackets. Elite Screens recommends the wall brackets be placed no closer than 4-6”(depending on the thickness of the frame) below the ceiling as that ditstance would give you the clearance needed to lift the screen above and then onto the brackets.
