Fixed Frame projection screen

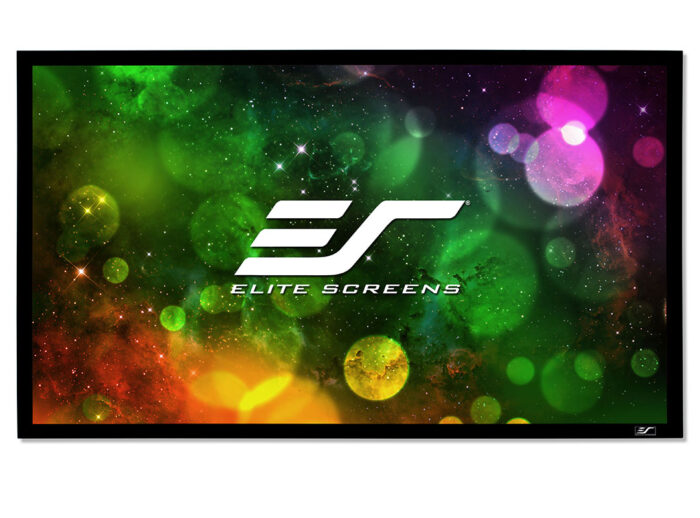

Sable Frame B2 Series

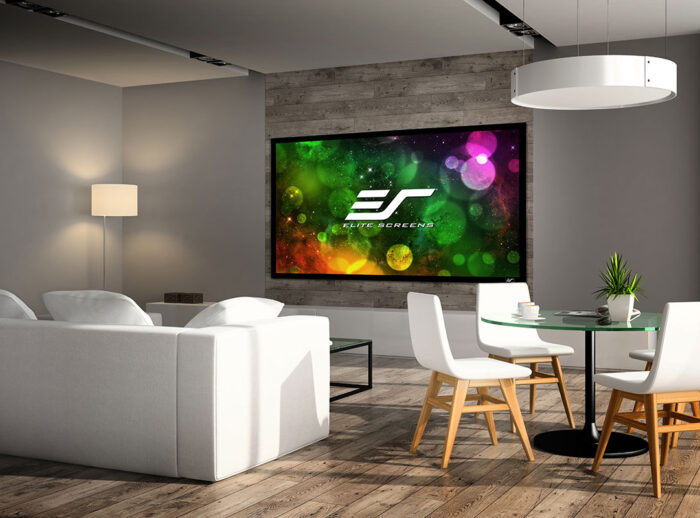

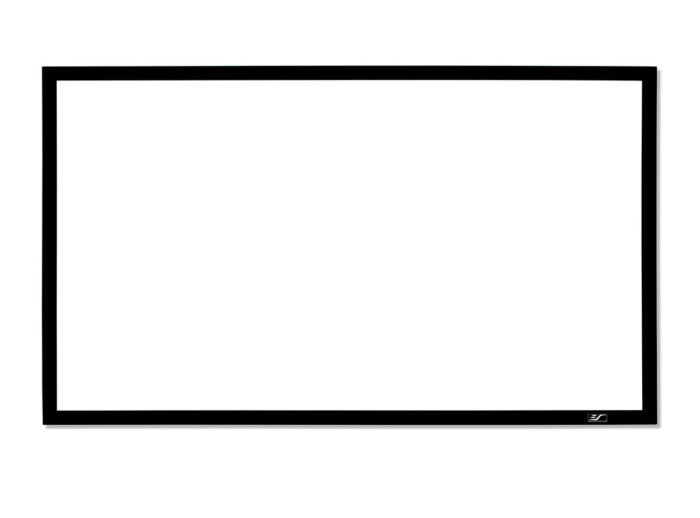

Elite Screens Sable Frame B2 series is the perfect choice for a stylishly sleek home theater experience. The Sable Frame B2 screens feature Elite Screens CineWhite® UHD-B, 1.3 gain front projection material in a 16:9 aspect ratio. Enjoy an ultra-flat projection surface accomplished by a spring tensioned system while the plush black velvet finish aluminum frame absorbs projector light overshoot. Sable Frame B2 easily assembles in minutes and is ready for installation using the included sliding wall mounts and installation kit.
| Viewing Angle | 180° |
|---|---|
| Gain | 1.3 |
| Screen Material | |
| Compatible Projection | Ultra Short Throw, Short Throw, Standard "Long" Throw |
| Material Type | Matte White |
Screen Material
- CineWhite® UHD-B 1.3 Gain front projection material
- ISF Certified for Accurate color points, Dynamic Range, and Color Temperature
- Black backing eliminates light penetration for greater picture clarity
- Superior color reproduction while providing excellent black/white dynamic range
- Outstanding picture quality at any viewing angle with no compromise in resolution or brightness
- 4K/8K Ultra HD, HDR and Active 3D Ready
- Compatible with Ultra/Short and Standard throw projectors

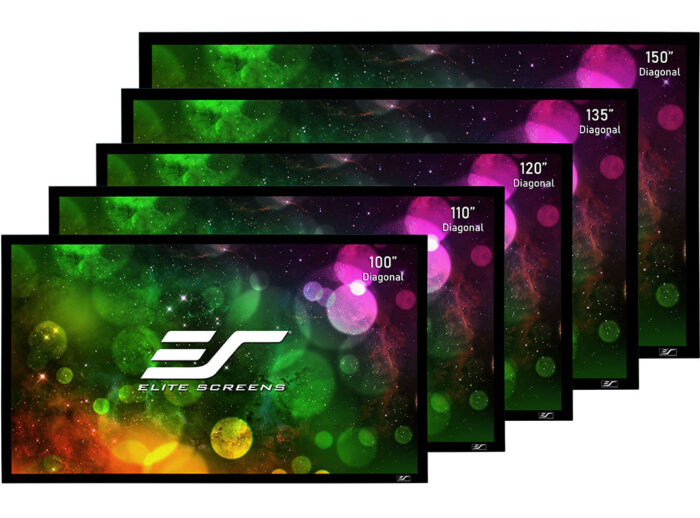

- Available in the following range of diagonal sizes in 16:9 aspect ratio: 100”, 110”, 120”, 135” and 150”
Design and Installation

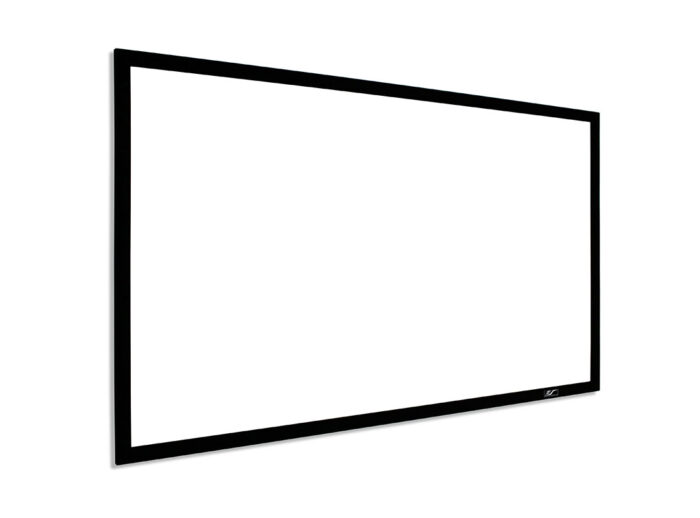

- 2.75” width aluminum black frame is velvet coated
- Elegant velvet covered frame absorbs projector overshoot and increases picture contrast
- Permanently tensioned fixed frame screen provides uniform flatness across entire surface
- Split-frame design facilitates lower shipping costs without sacrificing quality
- Wall brackets allow screen to slide horizontally for a properly centered installation
Quality and Reliability
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
- CineWhite® Material Sheet (PDF)
- Comparison Table (PDF)
- Product Cut Sheet (PDF)
- Frame Comparison Diagram
Dimensions Tables
- Dimensions Table – EN/H Type
- Dimensions Table – I Type
- Dimensions Table – M Type
- Frame Dimensions – M Type
- Packaging Dimensions Table (PDF)
- Dimensions Table – Z Type – DISCONTINUED
User Guides
- User Guide – EN/H Type (PDF)
- User Guide – EN/H Type V2 (PDF)
- User Guide – M Type V2.1 (PDF)
- User Guide – I / N Type (PDF) – Fix Plates
- User Guide – Z Type V3 (PDF) – DISCONTINUED
- User Guide – M Type V2 (PDF) – DISCONTINUED
- User Guide- Version 1 (PDF) – DISCONTINUED
- User Guide- Version 2 (PDF) – DISCONTINUED
- User Guide – M Type (PDF) – DISCONTINUED
In addition to an appealing aesthetic appearance, the advantage of having a black velvet covered frame is to help absorb projector overshoot.

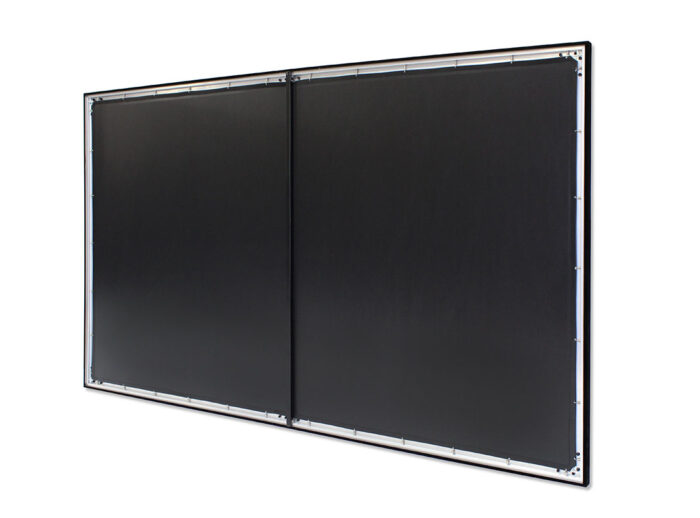

Center support bar for larger size fixed frame screens goes inside the top of the groove located on the back of the frame.
Elite Screens does not recommend attempting such an installation as in most cases it would not be possible. This is because the frame has to be lifted directly above and then placed down onto the brackets. The brackets will then latch onto the grooves of the frame and hold it in place. Mounting the wall brackets flush to the wall and ceiling would not provide the clearance needed for the frame to be lifted above the brackets. Elite Screens recommends the wall brackets be placed no closer than 4-6”(depending on the thickness of the frame) below the ceiling as that ditstance would give you the clearance needed to lift the screen above and then onto the brackets.
