Evanesce Tab-Tension Series
Evanesce Tab-Tension SeriesEvanesce Tab-Tension Series In Home Theater

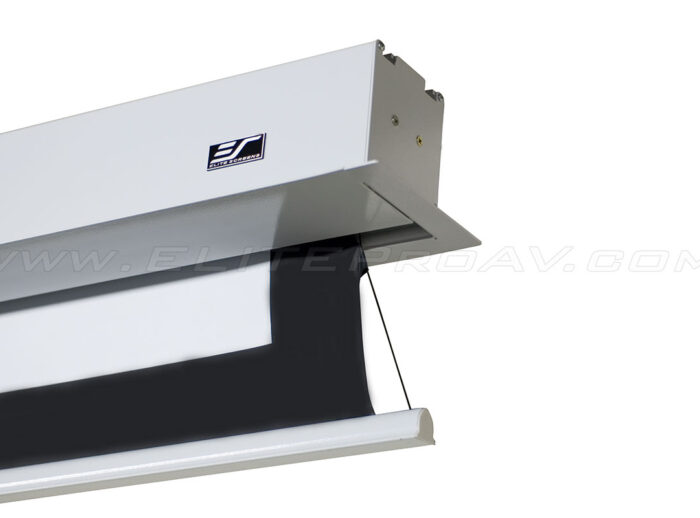

Opened Housing

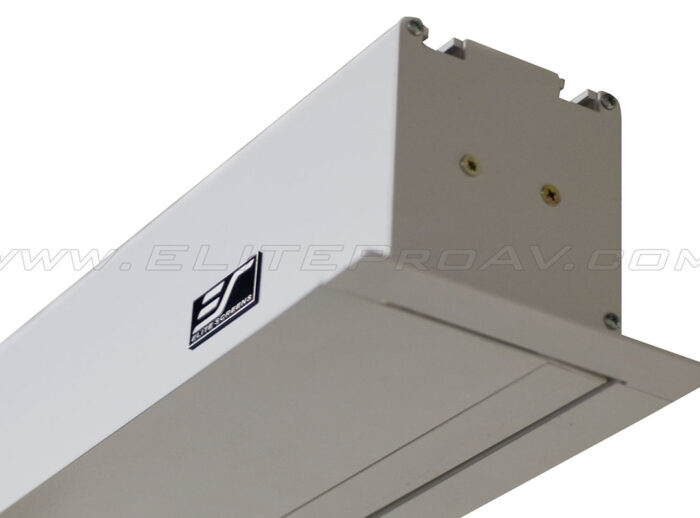

Housing Unit

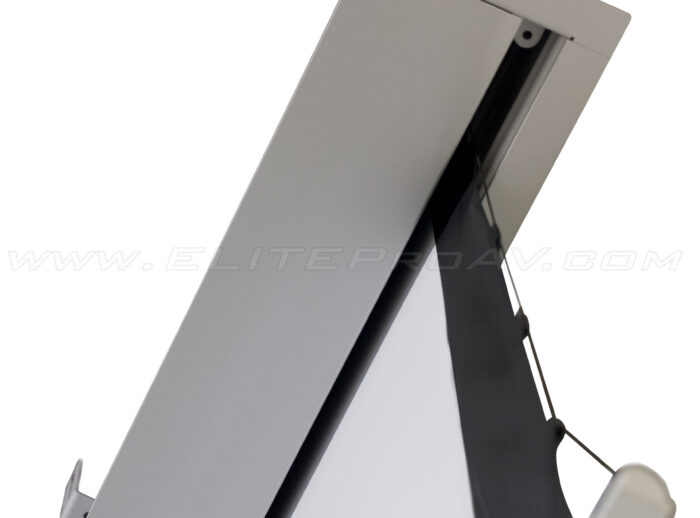

Evanesce Tab-Tension Series Bottom View
Evanesce Tab-Tension Series
Evanesce Tab-Tension Series Installation Example
Evanesce Tab-Tension Series Installation Example
Evanesce Tab-Tension Series Installation Example
Evanesce Tab-Tension Series Conference Room

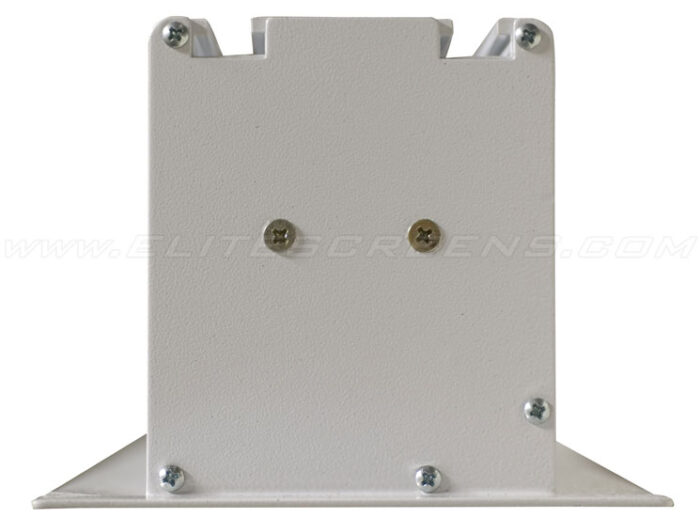

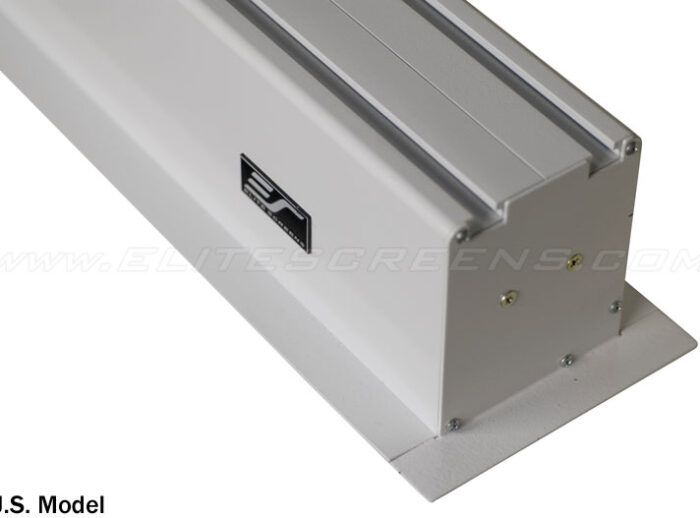

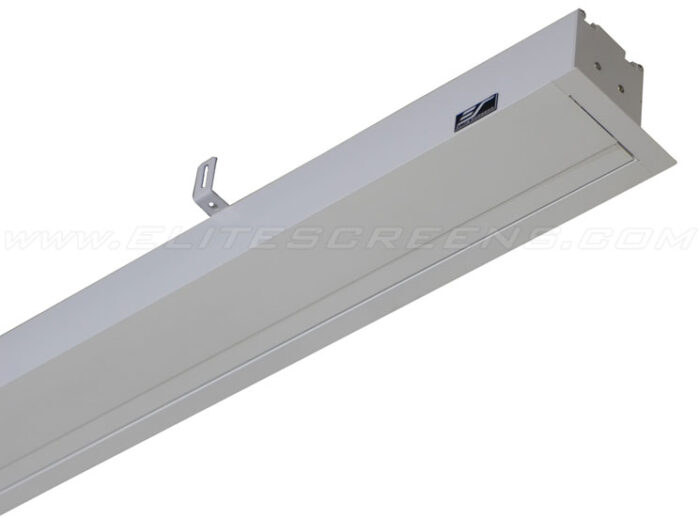

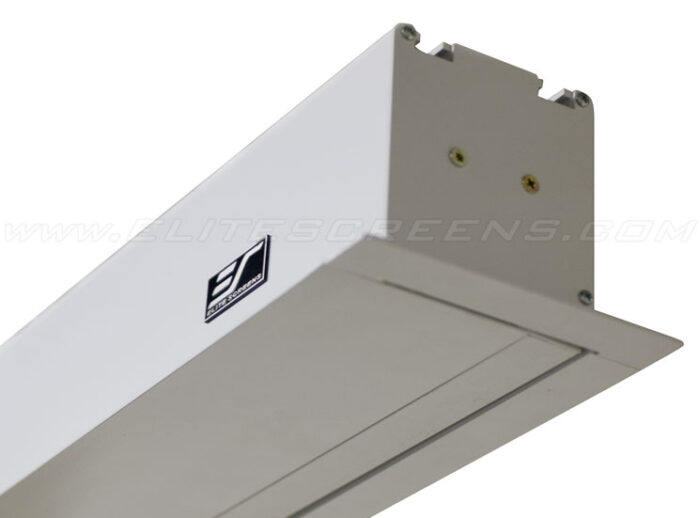

Evanesce Tab-Tension Series Housing Unit
Evanesce Tab-Tension Series Housing Unit
Evanesce Tab-Tension Series Housing Unit
Evanesce Tab-Tension Series Housing Unit
Evanesce Tab-Tension Series Housing Unit
Evanesce Tab-Tension Series Housing Unit
Evanesce Tab-Tension Series Housing Unit
Evanesce Tab-Tension Series Front View
The Evanesce Tab-Tension is a versatile in-ceiling projection screen that conveniently disappears from view when not in use. It can be installed from within the above-ceiling airspace or from below thanks to its removable base panels that were originally designed for the European market. Its award-winning CineWhite® 1.1 gain matte white tensioned-material provides superb color temperature with wide diffusion uniformity. The screen is moved by a strong, fast-acting tubular motor and comes with a full IR/RF wireless, 12-volt trigger and Ethernet control package.
Screen Material
- Award winning CineWhite® 1.1 Gain black backed matte white screen material
- 180º wide-viewing angle
- 4K Ultra HD, Active 3D, and HDR Ready
- Tab-tension cords provide uniform flatness on entire projection surface
- Standard 8″ top drop
- Available in the following diagonal sizes:
- 84″, 100″ and 120″ in 4:3 format
- 84″ in 16:9 format
Design and Installation
- Disappearing recessed in-ceiling design for non-dedicated media rooms
- Aluminum housing with white finish (RAL9003) is strong and moisture resistant
- Integrated ceiling projection screen ships fully assembled, ready to install
- Installation kit included for above or below ceiling
Control System
- Internal Radio Frequency/Infrared receivers with IR, RF remotes included
- Low voltage 3-way wall switch and in-wall RJ45 module included
- Standard 5-12 volt trigger to synchronize screen operation with the projector’s power cycle
- Optional in-wall up/down switch (part# ZIW-W) – sold separately
Quality and Reliability
- ETL, FCC, CE, CB GOSTCE & ISO9001:2008
- Conforms to UL 2043 – Plenum Rated: Suitable for air-handling spaces
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
